TCAD Modeling for ESD

Electrostatic discharge (ESD) is a major threat for integrated circuits reliability. ESD failures can occur during manufacturing, assembly, shipment or in the field. Charged objects discharge through the IC pins with very high currents with a short discharge duration, which can cause irreversible damage. On-chip protection devices that can shunt high currents and clamp voltages within safety margins must be designed with minimized size and capacitive loading of the core circuitry to protect chips against ESD, and at the same time they must not disturb normal operation [1].

Physics-based technology computer aided design (TCAD) numerical simulation of the device fabrication process and of the device electro-thermal behavior can identify and investigate ESD relevant effects and the internal operation of the device under ESD stress condition, which are not generally accessible by measurement. For instance, it can be successfully used for the study of 3D effects arising from device layout and/or inhomogeneous current (Figure 1). Nevertheless, treating ESD-related problems by means of TCAD is also a very challenging task in terms of device modeling [2, 3]. The main challenge consists in fast transients, high currents, and temperature-dependent modeling at the limit of the model’s validity. Simulator model’s calibration to the high temperature and high current regime is therefore of central importance.

Figure 1: Forming of current filament leading to temperature hot-spot in a device at high current density using 3D TCAD device simulation


In the context of technology on-chip ESD protection development, TCAD tools can help design, analyze, and optimize the performance of ESD protection devices and troubleshoot ESD issues to save time and money during technology development, both on single device level and on circuit level by using dedicated, physics-based ESD circuit compact models derived from TCAD. This methodology – spanning from TCAD to SPICE – allows checking critical I/O protection configurations before IC tape-out and avoiding re-designs.

- Partner Content -

A Dash of Maxwell’s: A Maxwell’s Equations Primer – Part One

Solving Maxwell’s Equations for real-life situations, like predicting the RF emissions from a cell tower, requires more mathematical horsepower than any individual mind can muster. These equations don’t give the scientist or engineer just insight, they are literally the answer to everything RF.


Introduction

The operational regime of devices under ESD stress is far outside the range of normal operation conditions. Among the most important effects to be considered in the ESD regime are self-heating, conductivity modulation due to high carrier injection, non-uniform operation (current filamentation) [4, 5], and avalanche breakdown at reverse-biased junctions. As already mentioned, for investigating these effects, TCAD process and device simulation represents a valuable tool, which often can replace or at least can complement expensive measurements.

The characterization by means of transmission line pulsing (TLP) measurements allows the extraction of ESD parameters under controlled, quasi-static conditions, providing an essential tool for debugging of ESD issues [6]. So-called 100ns-TLP and very-fast (vf-)TLP is used to perform calibration of high-current, high-temperature regime characteristics to measurements for different relevant time domains. For verification of ESD robustness in TCAD, the standard qualification models such as the Human Body Model (HBM) in the 100ns time domain and the much faster and harsher Charged Device Model (CDM) in the 1-2ns time domain are used [7]. A tight correlation in terms of failure signature and failure current level/robustness exists between 100ns-TLP and HBM (failure mostly due to thermal overload), and between vf-TLP and CDM (failure mostly due to voltage peaks leading to gate oxides breakdown).

The basic functionality of an ESD protection device or ESD protection circuit is given by providing a low resistivity discharge current path which prevents the internal circuitry as well as the protection device/circuit itself from being damaged during an ESD event, and is “transparent” to the internal circuitry under normal operation conditions. Some of the actual challenges for ESD protection are represented by the shrinking gate oxide of core devices which result in a reduction in breakdown voltage, by the increase of capacitive load due to large area protection devices which limit I/O speed and deteriorate performance of RF circuits, and by the increased complexity of clamping circuits design due to multiple supply voltages and latch-up immunity requirements. Figure 2 shows the most important parameters of the so-called ESD design window for ESD protection devices.

Figure 2: Typical ESD design window for protection devices


TCAD ESD Workbench

Establishing a full-fledged ESD TCAD Workbench from process and layout information, and calibration of simulation models including high-current/high-temperature regime targeted to device engineers and TCAD teams allows the evaluation of process variation influences, determination of layout dependence, and optimization of ESD structures (Figure 3) [8]. The improved understanding of device internal failure modes allows developing better I/O protection structures and the possibility for virtual testing and development of new structures. TCAD speeds up the ESD design to keep pace with IC development at reduced design-cycles times by reducing time-to-market and cost-to-market.

Figure 3: Simulation flow embedded in a TCAD workbench enabling the investigation of the influence of layout and process variations on the electrical ESD characteristics


It is important to select the right models that can capture the complicated effects described above during the operation of the ESD protection device. The drift-diffusion model is sufficient to characterize transport during ESD operation. The starting point for a successful calibration of a device’s ESD characteristics is represented by a well calibrated normal operation regime process and device simulation model set in 1D with using SIMS data, and 2D with using TEM/SEM, CV, and electrical point data for e.g., VTH and DIBL, possibly with including substrate bias effect. In a further step, ESD effects related modeling and calibration (Figure 4) [9] is performed with considering:

- From Our Sponsors -
  • High-temperature calibrated models
    • Impact ionization
    • Band-to-band tunneling
    • Mobility (low-field, carrier-to-carrier-scattering, high-field-saturation)
  • Bipolar-specific models (snapback phenomenon)
    • Band-gap narrowing
    • SRH and Auger recombination
  • Electro-thermal effects
    • Self-heating mechanisms and heat flows
  • Information about layout and measurement setup
    • 3D layout features
    • Contact resistances
Figure 4: Typical protection device snap-back IV-characteristics showing important effects to be considered for ESD device simulation


Impact ionization must be turned on to capture breakdown and snapback effects. Band-to-band tunneling models may be required for gated devices, especially at steep pn junctions with high electric fields. Bandgap narrowing may also need to be included if there are regions with high doping concentration. Since the temperature of the device increases during ESD operation, temperature-dependent Shockley-Read-Hall and Auger recombination models may need to be included. Mobility models that include carrier-carrier scattering both in the bulk and in the inversion/accumulation layers may be needed. Thermodynamic models that account for heat conduction and generation within the device are needed to capture self-heating. Finally, since most ESD devices are inherently 3D in nature, 3D simulations may be needed to accurately model inhomogeneous current flow [10].

At the end, the goal is to obtain one set of parameters which allows the predictive simulation of ESD behavior and at the same time can be used for normal operation conditions as well.


Layout Variations

The most important aspect of ESD device design is layout optimization. Figure 5 shows the layout of a gate-grounded NMOS ESD protection device modeled by 3D TCAD (top view of the device with layout parameters and the electrical and thermal contacts).

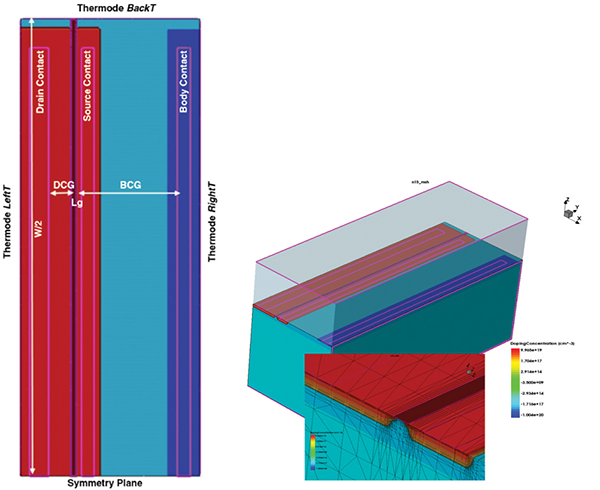

Figure 5: NMOS ESD device layout (top-view of the device with layout parameters and electrical & thermal contacts). 3D TCAD structure generated using a TCAD structure editing application (geometry, doping profiles, mesh), and details of the gate region and mesh.


Dimensions such as gate-length, drain-to-gate spacing, body-to-gate spacing and device width are important in optimizing the performance of the ESD device. In TCAD, these layout parameters are specified as variables, so that one can simulate and optimize these parameters in three-dimensions to obtain the desired/required ESD device performance.


Inhomogeneous Operation

Another important characteristic of a well-designed ESD protection device is its ability to continuously withstand high stress in terms of current, voltage and temperature in as limited a silicon area as possible. This also reduces the capacitive load. One way to achieve that is to ensure that the device operates as homogeneously as possible. Three-dimensional TCAD simulations can help investigate the uniformity of operation under ESD stress.


Thermal Failure

The simulation of ESD failure is complex. In the case of thermal failure, one can distinguish two simple cases that can be easily simulated with TCAD.

One way is to monitor the maximum temperature occurring in the device during an ESD simulation. If the temperature exceeds the melting point of silicon or metal (if the temperature hot-spot occurs in the proximity of contacts), one can regard the device as having failed.

The second approach is to consider the occurrence of turning points in the I-V or V-t characteristics (negative differential resistance) as the onset of thermal runaway. Thus, TCAD can provide insight into the breakdown mechanism of the device, which can be hard to ascertain by other methods.


Example of Three-Dimensional TCAD Simulation

The 3D structure of Figure 5, with the appropriate mesh, is considered to perform 3D device simulations as shown in Figure 6. A 3D approach is essential to understand the non-uniform operation effects arising from device layout and/or high current and high temperature that occur under TLP and HBM/CDM model stress types, such as non-uniform triggering and failure due to thermal overload.

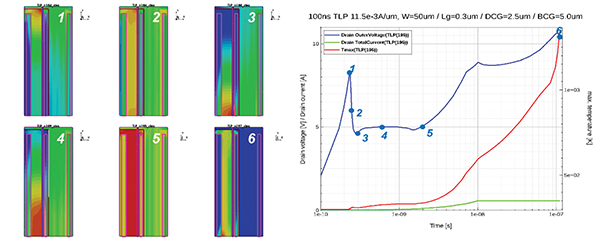

Figure 6. Left: Simulated current density snapshots at different points in time (top view) of the NMOS ESD device in grounded gate mode under 100ns TLP ESD stress. Right: Simulated voltage, current, and temperature waveforms. Highly non-uniform operation is observed at corner avalanche breakdown (1), snapback triggering and current path widening (3,4,5), and at device failure (2nd breakdown) (6).


TCAD-Based Circuit Compact Models For ESD

There is a high need to include ESD compact models in circuit simulation for predicting critical current paths and critical (I,V) node values and enhance I/O design quality. The insight gained by TCAD allows developing physically based compact model add-ons for ESD. Internal device characteristics not accessible by measurements can be studied. Calibrated process and device simulation therefore allows physics based parameter extraction for ESD compact models while avoiding expensive, noisy and destructive measurements.

To keep the compact model development effort to a reasonable level, a modular modeling strategy is recommended. This strategy is often also referred to as “macro-modeling” or “sub-circuit modeling” in the literature. We retain the corresponding device’s standard model (e.g., a Gummel-Poon or BSIM model) for normal operation conditions and extend it by ESD-specific add-on modules to form a full ESD compact model. The operational regime of devices under ESD stress is far outside the range in which the standard compact models have been tested and verified, whereas the full ESD compact models allow reproducing behavior under ESD stress in circuit simulation. Thermal effects are included by establishing a feedback loop between electric and thermal domains. The thermal domain is modeled using first or higher order thermal RC-networks depending on the complexity of the device’s temperature fields (one or more highly localized hot spots or almost homogeneous distribution). Figure 7 shows schematically how the ESD compact models are set up.

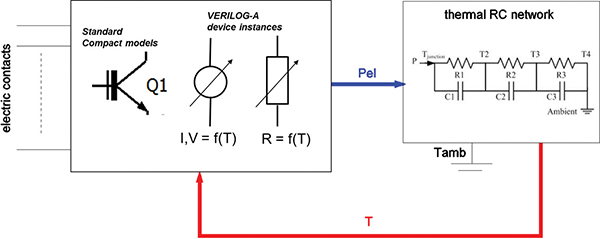

Figure 7: Modular setup of ESD compact models including thermal network fed by the dissipated power Pel. The resulting temperature T is used to complete the feedback loop.
