New Coaxial and Compact Ka-Band Linear Amplifier from MITEQ

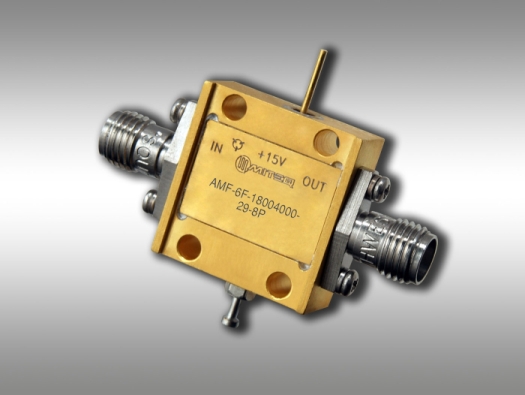

Model AMF-6F-18004000-29-8P is a recent addition to MITEQ’s family of low noise, wideband, and ultra-small coaxial LNAs in the 18 to 40 GHz band.  This LNA has over 35 dB of gain in a housing that is only 0.38” long and 0.75” wide without the field replaceable 2.93mm connectors.  Gain flatness is a maximum of ±3.0 dB.   The AMF-6F-18004000-29-8P has a maximum noise figure of 2.9 dB in the full band, though the typical value is 2.6 dB.  This unit operates from -40 to +75°C, has an output P1dB minimum of +8 dBm, output IP3 of typically +16 dBm and a current draw of maximum 275 mA from a single +15V DC supply.  The aluminum alloy housing provides excellent thermal performance in addition to being very small and light.  This model is also available in a hermetic version, wider frequency, lower gain options, and as a RoHS compliant unit.

For more information, visit www.miteq.com
