How Is Static Electricity Generated?

Associate Professor Neils Jonassen authored a bi-monthly static column that appeared in Compliance Engineering Magazine. The series explored charging, ionization, explosions, and other ESD related topics. The ESD Association, working with IN Compliance Magazine is re-publishing this series as the articles offer timeless insight into the field of electrostatics.

Professor Jonassen was a member of the ESD Association from 1983-2006. He received the ESD Association Outstanding Contribution Award in 1989 and authored technical papers, books and technical reports. He is remembered for his contributions to the understanding of Electrostatic control, and in his memory we reprise “Mr. Static”.

~ The ESD Association

- Partner Content -

Pulse Amplifier Definitions and Terminology

This application note serves as a comprehensive resource, defining key terms like duty cycle, pulse rate, rise/fall time, and pulse width, as well as discussing pulse on/off ratio, RF delay, jitter, and stability.

Reprinted with permission from: Compliance Engineering Magazine, Mr. Static Column Copyright © UBM Cannon




Nearly all static-electric phenomena are caused by the interaction between charges located on the surfaces of bodies which might be conductive as well as insulative. A basic question, therefore, is, how do the bodies obtain the charges? We will present a qualitative overview of the physical processes involved in static build up.

The title might seem to imply a discussion on developing formulas for quantitatively predicting the magnitude of electrification from material parameters and other physical conditions. Quantitative predictions, however, are rarely possible.

It is important to first stress that charges are never generated. They always exist in atoms—as positive charges on the protons of the nuclei, and as negative charges on the electrons around the nuclei. An electric effect can be seen only when electrons are removed from some of the atoms in one material and transferred to atoms in another (or maybe even the same) material. The electric effect is caused by the attraction between opposite charges and the repulsion between like charges.

- From Our Sponsors -

We are normally only aware of this effect if the electron-exchanging materials are separated in such a manner that at least part of the charges do not reunite during the separation process. The transfer of electrons between atoms or molecules might occur when two solids—identical or different—contact each other, with electrons crossing the interface in a preferential direction, giving one material a positive and the other a negative excess charge.

The exchange of electrons could also occur when an insulative liquid flows through a tube, when a liquid of almost any type breaks up into droplets of nonuniform magnitude, or when droplets fall through an inhomogeneous field, such as in a thundercloud.

The number of electrons transferred in any charging process is enormous. Here are some examples. If a powder, such as sugar or flour, slides down a tube and sticks to the wall, the charge on each tiny particle could be 10–14 to 10–13 C, i.e., 100,000 to 1 million electrons have been transferred per particle. A person who has walked across a carpeted floor receives a shock when touching a doorknob that typically has a charge of about 10–7 C. Powder sliding down a tube often has a specific charge of about 10–7 C • kg–1. A plastic folder rubbed with a piece of cloth or fur typically produces a charge of 10–7 C per sheet.

Charging of Solids: Triboelectrification

The most important type of charge separation involves the contact and friction between solids known as triboelectrification. When two solid materials, A and B (see Figure 1), contact and possibly rub against each other, electrons could move across the interface.

1108_mrstatic_fig1

Figure 1: Triboelectrification

Metals. It may be surprising that triboelectrification also happens when the two contacting materials are metals. And even more surprising is that this friction between metals is the only case in which the result of the charge transfer can be accurately predicted. When two metals contact, a voltage difference is established across the interface—the so-called contact potential difference—with a magnitude from a couple of tenths to a few volts.

If the metals are “well-defined” metals, the contact potential difference can be calculated from the work functions, i.e., the energy it takes to remove a loosely bound electron from the metal. It should be stressed, however, that this charge exchange between metals only gives rise to what we normally understand as static electricity when the two metals are separated extremely quickly, such as when a metal powder is blown against a metal surface.

Insulators. It is likely that processes similar to those described for metals could take place during contact between materials of which one or both are insulators. It is, however, difficult to characterize completely an insulating surface. For many materials, especially noncrystalline ones, the energy levels are badly defined and, therefore, the detailed contact processes are not known.

It is conceivable that only electrons located close to the surface can participate in the charging of highly insulative materials. Similar to metals, for some of these materials it is possible to measure the work function for loosely bound electrons. Because the measured values only hold true for materials with well-defined surface states, the practical implication of this is small.

As soon as a surface prepared in vacuum is exposed to ordinary air, the state—including the energy levels of surface electrons—can change considerably. Consequently, charging experiments with insulators can only yield quantitatively predictable results if the surfaces are carefully prepared and the experiments are performed in vacuum. And such experiments might disclose very little about what one could expect to find under more-practical conditions.

Contact Electrification: Triboelectric Series

One of the material parameters influencing the course of a charging process between two solid materials is the permittivity. Scientifically speaking, permittivity is defined as the ratio between corresponding values of the dielectric displacement and the electric field strength. However, in this context, it is more important that permittivity is also a measure of the ability of the material to become polarized.1 If an ion or another small, charged atomic or molecular cluster lands on an insulative surface, it will be bound to the surface by polarization forces. The stronger the forces, the higher the permittivity of the material.

This is the background for Coehn’s law, which states that when two materials are in contact with each other, the one with the highest permittivity becomes positive. This law was originally based on a comparison of known values of permittivity and published triboelectric series (i.e., a list of materials arranged in such an order that any material will become positively charged when rubbed against another material that is nearer the negative end of the series). There is no doubt that such a correlation exists, but with quite a few exemptions. And certain groups of materials can even be arranged in a closed series.

Table 1 shows an example of a triboelectric series. Such a series should be used with caution because the order of the materials could vary from series to series. Some series even locate air at the top of the positive end, which is a mistake.

1108_mrstatic_table1

Table 1: An example of a triboelectric series

From the relative position of a material in a series, it is possible to predict the sharing of polarity. However, the magnitude of the charges separated by contact and friction between two given materials can only be predicted with a high degree of uncertainty.

The magnitude of the charges often increases with the degree of friction between the surfaces, and the reason for this could be that the rubbing increases the area of contact between the surfaces while the charging process itself is only governed by the energy state of the surfaces, and that charged particles cross the interface at points of sufficient proximity. This, however, is hardly a satisfactory interpretation, because then it wouldn’t be possible to explain the fact that two identical surfaces can get charged by rubbing against each other. It could be argued, though, that no two surfaces are ever identical, and that incidental and uncontrollable differences might cause different affinities to charged particles.

Asymmetric Friction
As mentioned earlier, the degree of friction between two materials influences the contact area, and thus the exchange of charges. But the process of friction could have a specific influence of its own. It can be demonstrated that if two identical surfaces—macroscopically speaking—are rubbed against each other in such a way that the contact takes place between a small area of one surface and a larger area of the other, the polarities of the surfaces are likely to change if the roles of the surfaces are interchanged. Figure 2 illustrates this process. Two pieces—A and B—of the same material are rubbed against each other. In Figure 2a, A is stationary and B is being used as the bow on a string. If the bow, B, becomes positive, then, when the roles of A and B are reversed, the bow (in this case A) will again be positive, as seen in Figure 2b. This is asymmetrical friction.

1108_mrstatic_fig2

Figure 2: Asymmetrical friction

A possible explanation of this phenomenon is that the asymmetry could cause a thermal gradient to develop between the surfaces, thereby inducing already existing charge carriers to move in a certain direction. It is also possible that the charge carriers are produced by a thermal dissociation of the material into charged components.

Other conditions, such as the existence of external electric fields across interfaces, may also play a role in charge exchange between contacting solid materials. This effect can be used in an electrostatic separation process.

Postcontact Processes. Although contact between metals might produce charge transfer, no net charge will remain on the metals after separation unless at least one of the metals is insulated and the separation happens very quickly. If, on the other hand, at least one of the materials is an insulator, both surfaces will be charged immediately after separation. If they are both insulative or if one is an insulated conductor, the charges might remain on the materials even when they are far removed from each other.

During the initial separation, a series of processes could take place that would reduce the magnitude of the charges remaining on the surfaces. Such processes include decay and various types of discharges, ranging from corona discharge to regular sparks.

Charging of Liquids

The charging of solid materials by contact and friction is the best known type of static electrification, but it is not the only one. Liquids can also get charged, by flowing through tubes or by spraying, for example. However, the mechanism involved in the charging of liquids is somewhat different from the processes active in solids charging.

It has been demonstrated that phenomena like electrophoresis and capillary electricity in aqueous solutions can be explained if it is assumed that, on the interface between a liquid and a solid, or between a liquid and a gas, an electrical double layer exists in the liquid with a layer of charge close to the surface and a layer of the opposite polarity a short distance into the liquid.

Flow and Spraying.
If the surface of a liquid is changed, the electric double layer has to be formed or destroyed. These processes are supposed to have a certain inertia, which implies that it is possible to separate the charges of the double layer by mechanical action on the liquid.

If a liquid is flowing through a tube, there is a tendency for the outer charge of the double layer to be given off to the tube and the inner charge to be carried along with the flow (see Figure 3). The effect of the charging increases with the resistivity of the fluid (and depends on several other parameters). Consequently, only highly insulative liquids (ρ > ca. 107 Ω•m) will show charging by flow. Water, therefore, will not charge by flow.

1108_mrstatic_fig3

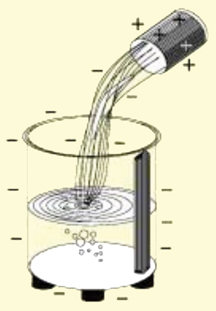

Figure 3: Electrification by flow of liquid
