What Exactly is ESD for 3D ICs?

For decades, Moore’s law has been driven by the downscaling of transistor dimensions on silicon. When reaching the ultra-advanced integrated circuit (IC) fabrication technologies in the single-digit nm regime (currently 5 nm CMOS is in volume ramp) there is little headroom left, and a different path of packing more functionality into an even smaller volume at the lowest power and cost has to be taken. 3D and 2.5D IC packaging technologies have become primary candidates to serve this purpose [1]. Both packaging technologies, which are often also referred to as ‘heterogenous integration’, have reached the maturity for volume production and can already be found in products.

A valid question to ask is what is 3D or even 2.5D packaging about? 3D packaging means to stack dies of silicon on top of each other and contact them in large numbers by die-to-die connections (see Figure 1). Today thousands of interconnects are running between a bottom die and a top die. This is predicted to grow into the tens of thousands to millions of interconnects per square millimeter of die area. One essential step in the process is to use so-called through silicon vias (TSVs) to route power and signals from the bottom side to the top side of a die. 2.5D packaging in contrast describes the assembly of silicon dies side-by-side atop an interposer substrate, which serves as a carrier on which the routing lines/connectivity between the dies are implemented (Figure 2).

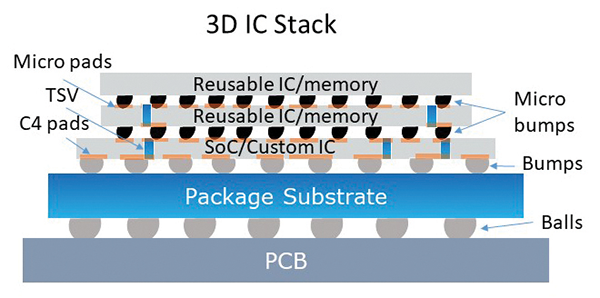

Figure 1: Schematic view of a 3D IC stack [3]

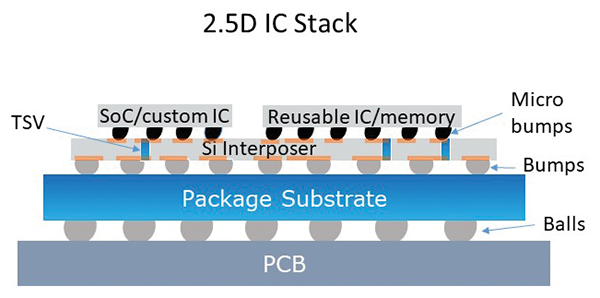

Figure 2: Schematic view of a 2.5D IC stack [3]

How is ESD performance affected by these packaging technologies? While for the handling and testing of the finished package there will be hardly any difference, there are multiple challenges in the fields of design and manufacturing of such interconnects. Predominantly, it is about the ESD sensitivity of the die-to-die connections. Do they need to receive a dedicated ESD protection and, if so, what is the targeted ESD robustness? These interfaces are potentially exposed to ESD during a few process steps of singulation of dies, picking of dies from the wafer and die-to-die attach bonding. The process steps need to be carefully ESD controlled, notably from CDM type discharges. While in today’s manufacturing lines, CDM robustness of about 30 V is assumed for the die-to-to interconnects, this needs to scale down to 5V or even lower over the next decade to accommodate the massive scaling of the interconnects [2]. Even a 1 µm2 area of ESD protection per die-to-die IO would consume the full die area in case of the highest interconnect density as predicted. This ESD scaling of interconnects is anticipated to become one of the critical topics of ESD control in the near future.

- Partner Content -

A Dash of Maxwell’s: A Maxwell’s Equations Primer – Part One

Solving Maxwell’s Equations for real-life situations, like predicting the RF emissions from a cell tower, requires more mathematical horsepower than any individual mind can muster. These equations don’t give the scientist or engineer just insight, they are literally the answer to everything RF.

At the same time, these packaging methods also allow the optimization of the ESD protection design for package balls. Some of the area-consuming IO ESD protection circuits on expensive 5 nm CMOS technology dies might move to the interposer processed in a much less expensive technology. The new ESD protection architectures and the management of the models and parameters for dies manufactured in different technologies and incorporated into one ESD protection network will pose a challenge for ESD and latch-up verification tools and methods. It is definitely not a new challenge, but one that needs to be tackled soon to better address 3D package designs.

The EOS/ESD Association is addressing the various vectors of development needed to support 3D packaging ESD integration and manufacturing ESD control. The ESDA Standards Working Group 17 on ESD Process Assessment and Working Groups 18 and 22 discussing EDA ESD tool needs and IP constraints. Volunteers interested in the above topic or an engagement in the working group activities are encouraged to contact the EOS/ESD Association at info@esd.org or visit the Standards webpage within the ESDA website at http://www.esda.org.

References

  1. Semiconductor Industry Association, International Technology Roadmap for Semiconductors (ITRS), 2015.
  2. Industry Council on ESD Target Levels, White Paper 2, A Case for Lowering Component Level CDM ESD Specifications and Requirements, Rev. 2.0, 2011.
  3. EOS/ESD Association, Inc. Electrostatic Discharge (ESD) Technology Roadmap, 2020.
