Transmission Line Reflections: Bounce Diagram

This article explains the creation of a bounce diagram for a transmission line circuit (see [1] for transmission line reflections).

Consider the circuit shown in Figure 1.

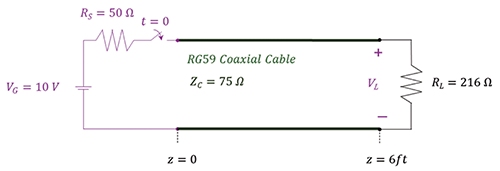

Figure 1: Circuit used to create bounce diagram


When the switch closes the forward voltage wave travels toward the load and reaches it at t = T (T = one-way travel time). Since the line and the load are mismatched a reflection is created and travels back to the source, reaching it at t = 2T (assuming zero rise-time). Since the line and the source are mismatched, another reflection is created which travels forward to the load reaching it at t = 3T.

- Partner Content -

Pulse Amplifier Definitions and Terminology

This application note serves as a comprehensive resource, defining key terms like duty cycle, pulse rate, rise/fall time, and pulse width, as well as discussing pulse on/off ratio, RF delay, jitter, and stability.

This process theoretically continues indefinitely; practically, it continues until the steady-state voltages are reached at the source and at the load. A bounce diagram is a plot of the voltage (or current) at the source or the load (or any other location) after each reflection.

The experimental setup for reflection measurements is shown in Figure 2.

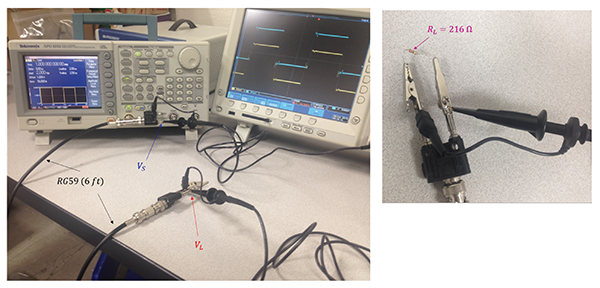

Figure 2: Experimental setup


The initial voltage at the location z = 0 is

This is shown in Figure 3.

- From Our Sponsors -

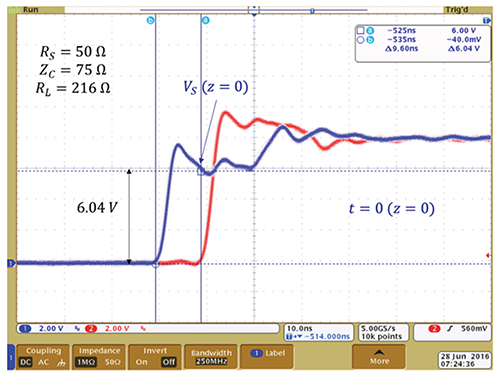

Figure 3: Initial voltage wave at z = 0


The reflection coefficient at the load is

The initial voltage wave of 6V travels to the load and reaches it at t = T creating a reflection

V  = ΓLV + = (0.4845)(6) = 2.907 V

The total voltage at the load (at t = T) is

VL = V + + V  = 6 + 2.907 = 8.907 V

This is shown in Figure 4.

Figure 4: Voltage at the load at t = T


Voltage reflected at the load (
V = 2.907 V) travels back to the source. The reflection coefficient at the source is

The re-reflected voltage at the source is

V -+ = ΓSV  = (-0.2)(2.907) = -0.5814 V

The total voltage at the source at t = 2T is

VS = V + + V  + V -+ = 6 + 2.907 – 0.5814 = 8.3256 V

This is shown in Figure 5.

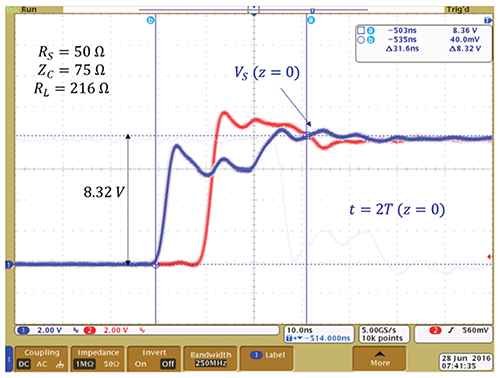

Figure 5: Voltage at the source at t = 2T


The voltage reflected at the source (
V -+ = -0.5814 V) travels toward the load where it will create another reflection which will travel toward the source. This process will continue until the steady-state is reached.

The bounce diagram showing the voltages at the source and the load after each reflection is shown in Figure 6.

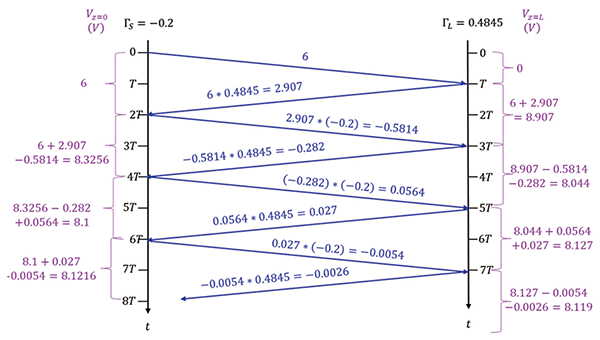

Figure 6: Bounce diagram: voltages at the source and the load


Figure 7 shows the voltages at the source (z = 0) while the Figure 8 shows the voltage at the load (z = L) during the period 0
t < 8T .

Figure 7: Voltage at the source during 0 ≤ t < 8T



Figure 8: Voltage at the load during 0 ≤ t < 8T


It is apparent the source and load voltages eventually reach the steady state. Recall that a transmission line can be modeled as a sequence of in-line inductors and shunt capacitors (assuming a lossless line) [2], as shown in Figure 9.

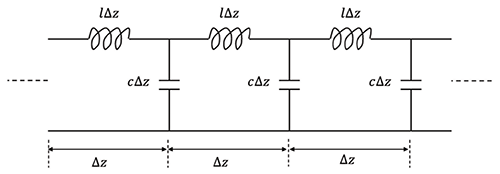

Figure 9: Circuit model of a lossless transmission line


Under dc conditions (steady-state when driven by a dc source) inductors act as short circuits and capacitors act as open circuits.

Thus in steady state the circuit in Figure 1 is equivalent to the circuit in Figure 10 where the transmission line is modeled as an ideal conductor.

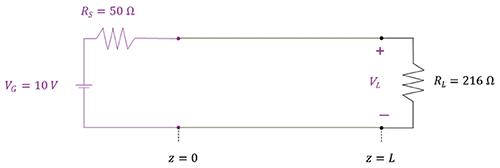

Figure 10: Equivalent circuit in steady state


The steady state value of the voltage at z = 0 is the same as the value at z = L and can be obtained from the voltage divider as

Note that both the source and the load voltages converge to this value as the reflection process approaches a steady state.
