Thermocouples and Temperature Measurement

One of our members suggested I write about thermocouples and temperature measurement. Textbooks have been written on this subject; I can only give a broad overview of the subject. Since temperature meaurement is indigenous to every safety evaluation, perhaps I can demystify some of the rules applied by the various certification houses.

Disregarding accessible hot parts, why do we measure temperatures, and how do we decide what parts should be measured? What is the hazard that is prevented, controlled or limited as a result of measuring temperatures within electronic equipment? Why do we measure temperature rise rather than absolute temperature?
Why do we use thermocouples rather than other temperature measuring devices? And, how do
thermocouples work?

Thermocouple Theory
Let’s tackle this last question first. According to ANSI MC96-1, a thermocouple is “two dissimilar thermoelements so joined as to produce a thermal emf when the measuring and reference junctions are at different temperatures.”

- Partner Content -

A Dash of Maxwell’s: A Maxwell’s Equations Primer – Part One

Solving Maxwell’s Equations for real-life situations, like predicting the RF emissions from a cell tower, requires more mathematical horsepower than any individual mind can muster. These equations don’t give the scientist or engineer just insight, they are literally the answer to everything RF.

This definition has three critical concepts in it: “thermoelements,” “thermal emf,” and “junction.” The most critical concept is that of “thermal emf.”

In 1821, Thomas Johann Seebeck discovered that, in a closed circuit made up of two dissimilar metals (thermoelements), electric current will flow if the temperature of one junction is elevated above that of the other. This phenomenon is known as the “Seebeck effect.” See Figure 1. The “circuit” comprises a thermocouple. All dissimilar metals exhibit this effect.

1408 TS fig1

Figure 1: Seebeck effect


- From Our Sponsors -

Note that every wire has two ends. When connected into a circuit, every wire has two junctions, one at each end of the wire. Where a junction involves dissimilar metals, the wires become thermoelements. Where both junctions involve dissimilar metals, the system becomes a thermocouple where one junction is the “measuring junction,” and the other end is the “reference junction.”

Each thermoelement junction generates a voltage (thermal emf), proportional to temperature. When the two thermoelement junctions are at the same temperature, the thermal emf’s are equal, and there is no current in the circuit. When the temperature of one junction is higher or lower than the other junction, the ammeter will indicate a current which is proportional to the temperature difference between the two junctions and to the areas of the junctions.

(The tricky part of the system is to connect the meter in such a fashion as to neutralize the effect of nonmeasuring junctions of dissimilar metals. More about this later.)

Figure 2 is an equivalent circuit to Figure 1. Each junction can be re-presented by a battery and resistor in series. In Figure 2, thermal emf’s Eland E2 are a function of the combination of different metals and proportional to the temperatures of the junctions. Resistances R1 and R2 are proportional to the area of the respective junctions.
In Figure 2, I is proportional to the temperature difference between Junction 1 and Junction 2. But I is also proportional to the values of R1 and R2. The values of R1 and R2 are proportional to the areas of the junctions, which are neither predictable nor repeatable. Therefore, while I is proportional to the temperature difference, it cannot be used to determine temperature difference unless the values of R1 and R2 are determined and accounted for.

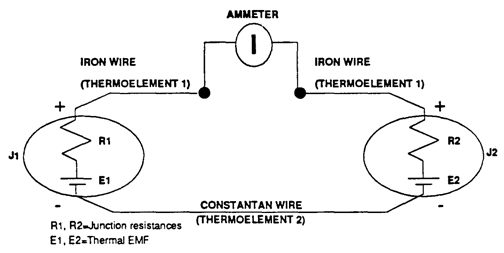

1408 TS fig2

Figure 2: Equivalent circuit


We can eliminate the effects of R1 and R2 by replacing the ammeter with a voltmeter. See Figure 3. The voltmeter measures the voltage difference E + E1 – E2, between the two junctions. If we know the temperature of the ref-erence junction, then we can deter-mine the voltage E2 by looking up, in tables, the voltage that corresponds to the reference junc-tion temperature. Now, we can solve the equation E1 = E + E2. We now go back to the tables and look up E1 and its temperature, which is the measuring junction temperature.

1408 TS fig3

Figure 3: A practical thermocouple thermometer


If the reference junction temperature is at 0° C (in an ice bath), then, since the voltages in the tables are referenced to 0° C, E2 = 0, and E = E 1. Now, we can eliminate the summing step, and just read the temperature directly from the tables.

Voltmeter Junctions
Now the question: How do we deal with the connection (junctions) of the iron wire to the copper wires of the meter? Recall two statements: First, all dissimilar metals exhibit the Seebeck effect. Thus, the connection from the iron wire to the two copper wires constitutes another thermocouple. Second, when two junctions are at the same temperature, the thermal emf s are equal, and there is no current in the circuit. So, we put the two iron-copper junctions on an isothermal block so that the temperature of one junction is the same as the temperature of the other junction. (See Figure 3.) Thus, the two additional junctions cancel out, and do not contribute to the measurement.
Reference Junction Temperature
The temperature of the reference junction needs to be determined. There are several ways to do this.
First, we can force the junction to a particular temperature. The most obvious is the ice bath. But this is cumbersome.

Or, second, we can put the refer-ence junction onto an isothermal block and measure the temperature of the block by some other means. This is commonly done with a thermistor.

Or, third, we can use a battery and thermistor circuit to generate the same voltage as if the reference thermocouple was at 0° C. This is the “electronic ice point.”

In each case, and possible after some intermediary steps, the result is the voltage (proportional to the temperature) of the measuring junction. The next step is to convert the voltage to a temperature.

Voltage-to-Temperature Conversion
First, we can simply look up the voltage in a table, and read the corresponding temperature. This could be done either manually or with an electronic memory.

Or, we can calculate the temperature from an equation of the relationship between voltage and temperature.

Or, we can assume the voltage- to-temperature relationship is linear, measure voltage, employ a scale factor, and read out tempera-ture (with some inaccuracy).

(The voltage-to-temperature relationship of a thermocouple is not linear. The Type K thermocouple approaches linearity over a temperature range of 0 to 1000° C and is the thermocouple of choice for use with a scaling voltmeter.)

Fortunately, most modern-day thermocouple measuring equipment addresses all of these parameters so that we need not concern ourselves with meter junctions, isothermal blocks, reference junctions, reference junction tem-perature, voltage-to-temperature relationship, or nonlinearity. We need only apply the thermocouple or probe to the object and read temperature.

Thermocouple Types
There are many different thermocouple types, and the more common types have been standardized by letter designation and color coding of wires, connectors, and isothermal junction blocks. Certification houses have standardized on the Type J thermocouple because it is inexpensive and, therefore, popular and readily available, and it has a suitable temperature range.

Despite this standardization, mixups occur. A cup of ice water will not show a mixup of thermocouple types since, by convention, 0° C corresponds to 0 V for all thermocouple types. Instead, a cup of boiling water confirms whether the system is homogeneous and calibrated.

Thermocouples vs. Other Thermometers
Why do we use thermocouples rather than other temperature-measuring devices? Certainly one of the reasons is that thermocouples have been around for a long time and are well-characterized in their performance. By standardizing on one particular system, thermocouples, one of the variables in temperature measurement is eliminated.

Thermocouples, in general for safety evaluation, have relatively low thermal mass compared to the part being measured. This is necessary because a thermocouple always takes heat away from the object being measured, and lowers the temperature by some amount. To minimize this error, we use the smallest thermocouple practicable for the particular measurement. CSA, for example, specifies No. 30 A WG thermocouple wire with a welded junction.

Thermocouple Attachment
The attachment of the thermocouple to the part to be measured is also critical to an accurate temperature measurement. The thermocouple junction must be in direct contact with the pan or material being measured. This means that, if epoxy cement is used to attach the thermocouple, there must be no cement between the thermocouple and the pan. Otherwise, there is a temperature gradient through the cement. The thermocouple will measure the temperature at its location within the epoxy which will, necessarily, be less than that of the pan being measured.

In some cases, the epoxy or other attachment means may act as a thermal insulator for the pan such that the temperature measured by the thermocouple is actually higher than the temperature without the epoxy or other attachment means.

The general rule is: use the least amount of material practicable for attaching the thermocouple to the pan.

What is the hazard that is prevented, controlled, or limited as a result of measuring temperatures within electronic equipment? This is not at all intuitively obvious, nor is it obvious from a study of the various certification-house standards. We begin to get an idea of the hazard from the title of Clause 7.2 of IEC 348, “Safety Requiremerments for Electronic Measuring Apparatus.” The title: Preservation of Insulation.

The principal objective of temperature measurement is to determine that all safety-related insulations are used within their temperature ratings. When this is accomplished, we can be assured that the insulation is not unduly stressed by the temperature imposed upon it, and that, therefore, it will be “preserved.” A fundamental assumption is that if the insulation is used within its temperature rating, it is not likely to fail— that is, it is preserved — for its lifetime.

The hazard that is prevented is that hazard that would result from the failure of the particular insulation. Often, insulation failure results in conditions for electric shock. Insulation failure in electronic equipment may also result in electrically-caused fire.

Now we can begin to decide what pans should be measured. Obviously, we measure all safety-related insulations. This would include transformers, inductors in mains circuits, printed wiring boards, switch bodies, thermoplastic-insulated wires, etc.

But, in a transformer, we measure the wire temperature, not the insulation temperature. Why? The wire temperature heats the insulation, and since the wire is in intimate contact with the insulation, the wire temperature is the worst-case insulation temperature. And, most electrical insulators are also thermal insulators, so measuring the hottest spot on the insulation is difficult, if not impossible.

In some standards, we are required to measure semiconductor devices and resistors. Why do we measure these components since they are not a safety insulation? We do so because wire insulation could come in contact with the devices and be burned.

We also measure polymeric materials and capacitors. Polymeric materials are used as enclosures and structures. Here, too, the material must be “preserved” to retain its enclosing and structural functions; preservation is accomplished by using the material within its ratings.

Electrolytic capacitors are subject to explosion if the temperature is too high, so we measure their temperature. However, most of today’s modem capacitors are provided with pressure relief mechanisms, but the requirement hangs on. X and Y capacitors are essentially across-the-line and line-to-ground insulations which must be used within their temperature ratings if the insulation is to be preserved.

Temperature Rise
Why do we measure temperature rise rather than absolute temperature? This is a difficult question based on the preceding discussion. In the preceding discussion I implied that each material, whether insulation, polymeric material, or electrolytic capacitor, will fail to perform its function at some absolute temperature. If our objective is to obviate failure by operating insulations, polymeric materials, electrolytic capacitors, etc., within their ratings, then we should be concerned with absolute temperatures.

The problem with absolute temperature is that if we should measure temperature in a 20° C environment, and someone else should measure temperature in a 25° C environment, then our measurements may show acceptable performance, while their measurements may show unacceptable performance. But, if we subtract the ambient temperature, we both will get very nearly the same number.

The temperature-rise limits specified in standards are conservative when compared to rated temperatures of insulations, etc. And, they assume that the ambient temperature will be in the neighborhood of 20 to 25° C. For example, a typical Class 105 insulation is allowed to rise 65° C. So, if ambient is 25° C, the absolute temperature is 90° C, comfortably below the 105° C rating.

Temperature-rise measurements and limits are used for the purpose of standardizing measurements between parties when the ambient is not closely controlled.

Due to space limitations, I have covered only a limited number of details within this subject. My selection of subjects is based on my personal experiences (or, rather, problems) encountered in temperature measurement and the use of thermocouples. favicon


author nute-richard Richard Nute
is a product safety consultant engaged in safety design, safety manufacturing, safety certification, safety standards, and forensic investigations. Mr. Nute holds a B.S. in Physical Science from California State Polytechnic University in San Luis Obispo, California. He studied in the MBA curriculum at University of Oregon. He is a former Certified Fire and Explosions Investigator.
Mr. Nute is a Life Senior Member of the IEEE, a charter member of the Product Safety Engineering Society (PSES), and a Director of the IEEE PSES Board of Directors. He was technical program chairman of the first 5 PSES annual Symposia and has been a technical presenter at every Symposium. Mr. Nute’s goal as an IEEE PSES Director is to change the product safety environment from being standards-driven to being engineering-driven; to enable the engineering community to design and manufacture a safe product without having to use a product safety standard; to establish safety engineering as a required course within the electrical engineering curricula.
