Spectra of Digital Clock Signals

Foundations

Clock waveforms can be represented as periodic trains of trapezoid-shaped pulses as shown in Figure 1.

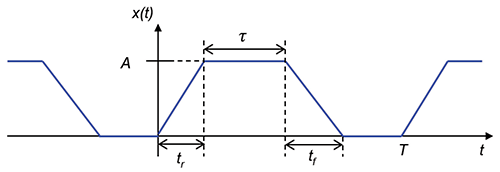

Figure 1: Trapezoidal clock signal
Figure 1: Trapezoidal clock signal



- Partner Content -

A Dash of Maxwell’s: A Maxwell’s Equations Primer – Part One

Solving Maxwell’s Equations for real-life situations, like predicting the RF emissions from a cell tower, requires more mathematical horsepower than any individual mind can muster. These equations don’t give the scientist or engineer just insight, they are literally the answer to everything RF.

Each pulse is described by the key parameters: period T (and thus the fundamental frequency), amplitude A, rise time tr, fall time tf, and the on-time or pulse width τ. In this article, we investigate the effect of these pulse parameters on the spectrum of the clock waveform.

When the rise and fall times are equal, the one-sided Fourier spectrum of the trapezoidal clock signal can be represented as

(1)

where the magnitudes of the (complex) Fourier coefficients are given by

  (2)

- From Our Sponsors -

  (3)

Note that when the duty cycle of the signal is 50%, that is, , the first sine term in Equation 3 becomes

  (4)

which is zero for even n. Thus, there are no even harmonics when the duty cycle is 50% (which is a reasonable assumption for the clock signals).

The spectral coefficients in Equation (3) exist only at the discrete frequencies . The continuous envelope of these spectral components is obtained by replacing  in Equation (3):

  (5)

or in dB,

(6)

The (envelope) bounds in dB are shown in Figure 2.

Before we investigate the effects of various parameters on the frequency content of the clock signals, an extremely important observation can be made from the bounds shown in Figure 2.

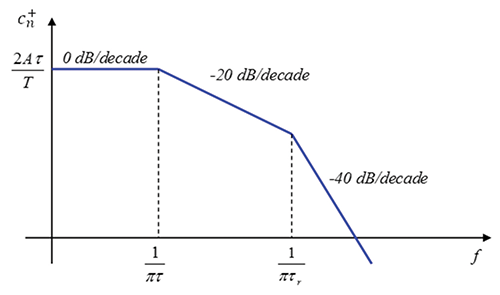

Figure 2: Bounds on the one-sided magnitude spectrum of a trapezoidal clock signal
Figure 2: Bounds on the one-sided magnitude spectrum of a trapezoidal clock signal



Note that above the frequency  the amplitudes of the spectral components are attenuated at a rate of 40 dB/decade. It seems reasonable, therefore, to postulate that somewhere beyond this frequency these amplitudes are negligible (as compared to the magnitudes of the components at lower frequencies) and can be neglected in the Fourier series expansion shown in Equation 1.

A reasonable choice for that frequency is

  (7)

This is the origin of one of the EMC rules which states that the bandwidth (BW) of a trapezoidal signal (the highest significant frequency) is

  (8)

Thus the pulses having short rise/fall times have larger high-frequency content that do pulses with long rise/fall times.

In the next section we will verify this statement, show the frequency content of a clock signal with 50% duty cycle (no even harmonics), and investigate the effect of various pulse parameters on the frequency spectrum.

Verification

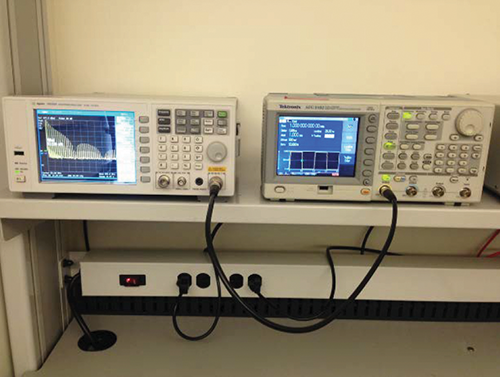

The experimental setup for spectral measurements is shown in Figure 3.

Figure 3: Experimental setup



Figure 4 shows the frequency spectrum of a 1V trapezoidal pulse, with a fundamental frequency of 10 MHz and 5 ns risetime and two different duty cycles.

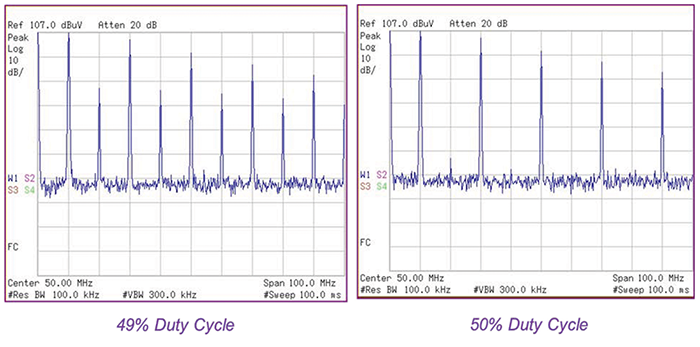

Figure 4: Frequency spectrum of a clock signal with 49% and 50 % duty cycle



Note that the 49% duty cycle signal contains both the odd and even harmonics while the 50% duty cycle signal contains the odd harmonics only.

Figure 5 shows that the pulses having short rise/fall times have larger high-frequency content that do pulses with long rise/fall times.

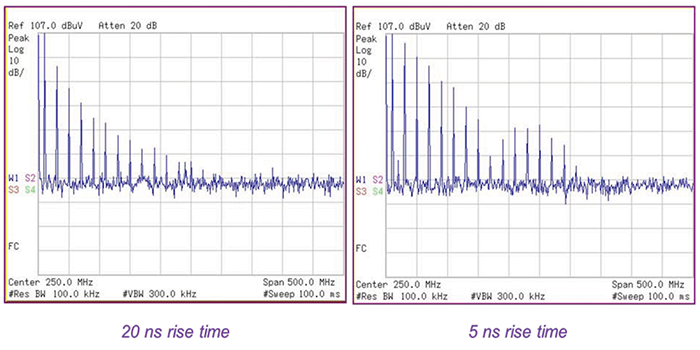

Figure 5: Frequency spectrum of a clock signal with 20 ns vs. 5 ns risetime
Figure 5: Frequency spectrum of a clock signal with 20 ns vs. 5 ns risetime

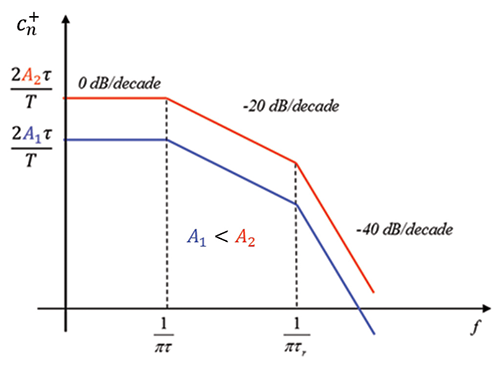

The effect of the signal amplitude on the frequency content of a trapezoidal signal is shown in Figure 6.

Figure 6: Effect of the signal amplitude
Figure 6: Effect of the signal amplitude



As can be seen, reducing the signal amplitude reduces the frequency content over the entire frequency range. This is verified by the measurement shown in Figure 7.

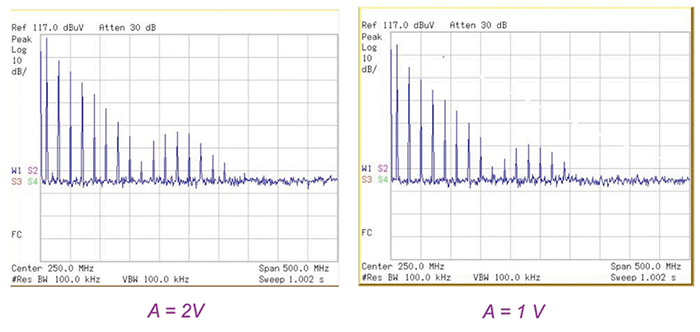

Figure 7: Effect of the amplitude reduction



The effect of reducing the fundamental frequency while maintaining the same duty cycle on the frequency content of signal is shown in Figure 8.

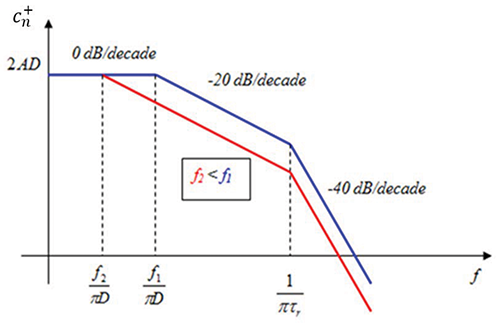

Figure 8: Effect of the fundamental frequency while maintaining the duty cycle



Reducing the fundamental frequency (while maintain the duty cycle) reduces the high-frequency spectral content of the waveform, but does not affect the low-frequency content. This is verified by the measurement shown in Figure 9.

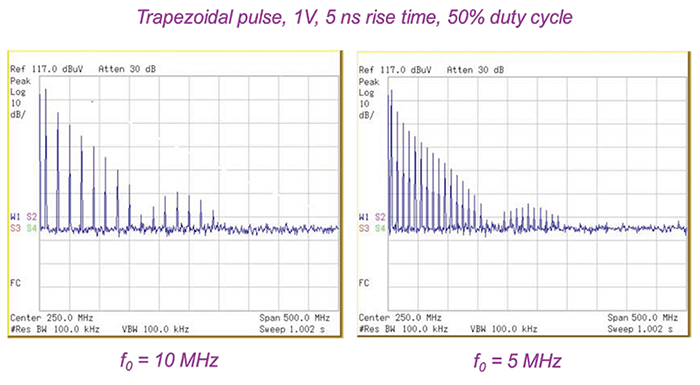

Figure 9: Effect of the fundamental frequency while maintaining the duty cycle
Figure 9: Effect of the fundamental frequency while maintaining the duty cycle

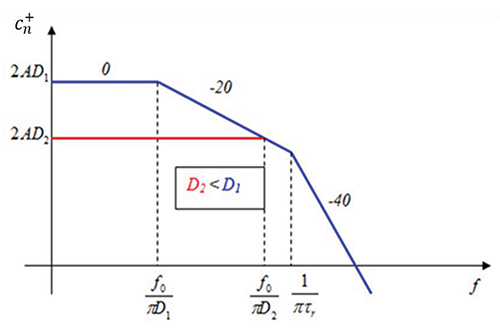

Finally, the effect of reducing the duty cycle while maintaining the fundamental frequency is shown in Figure 10.

Figure 10: Effect of the duty cycle while maintaining the fundamental frequency
Figure 10: Effect of the duty cycle while maintaining the fundamental frequency



Reducing the duty cycle (the pulsewidth) reduces the low-frequency spectral content of the waveform, but does not affect the high-frequency content. This is verified by the measurement shown in Figure 11.

Figure 11: Effect of the fundamental frequency while maintaining the duty cycle
Figure 11: Effect of the fundamental frequency while maintaining the duty cycle



References

  1. Clayton R. Paul, Introduction to Electromagnetic Compatibility, Wiley, 2006.
  2. Bogdan Adamczyk, Foundations of Electromagnetic Compatibility with Practical Applications, Wiley, 2017.
