Shielding to Prevent Radiation: Part 7

Effect of the Apertures

This is the final article in a series [1-7] devoted to the topic of shielding to prevent electromagnetic wave radiation. All the previous articles assumed a solid shield with no apertures. This article addresses the impact of slots or apertures in the shield on radiation. It is shown that apertures can be as effective radiators as antennas of the same dimensions.

Apertures and Shielding Effectiveness

In practice, most shields are not solid, since there must be access covers, doors, holes for cables, ventilation, and displays, like the ones shown in Figure 1.

Figure 1: Metallic shield with apertures
Figure 1: Metallic shield with apertures

All of these apertures reduce the effectiveness of the shield. Consider a solid shield shown in Figure 2.

- Partner Content -

How to Become A Great Compliance Engineering Professional

The journey to becoming an excellent compliance engineering professional is an ongoing process of continuous learning, practical skill development, and unwavering commitment to ensuring product safety, regulatory compliance, and maintaining the highest standards of professional integrity.
Figure 2: Incident wave induces current in the shield
Figure 2: Incident wave induces current in the shield

The incident field induces a surface current in the shield, which may be thought of as producing the reflected field that tends to cancel the incident field [8]. In order for the shield to perform this cancellation, the induced currents must be allowed to flow unimpeded, as shown in Figure 3a.

Figure 3: Effect of slots on induced currents
Figure 3: Effect of slots on induced currents

The slot will impede the current flow. Figures 3b and 3c illustrate that the thickness of the slot is not critical, but the length of it is. An obvious solution might be to place the slot parallel to the current flow, as shown in Figure 4a, to minimize its adverse effect.

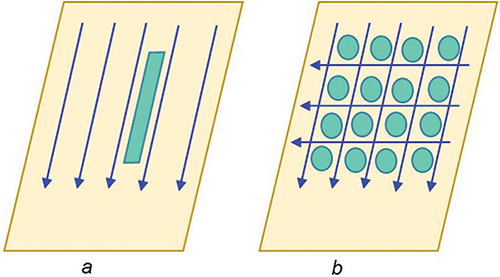

Figure 4: Effect of slots on induced currents
Figure 4: Effect of slots on induced currents

The problem with this solution is that it is not feasible to predict the direction of the induced current. A reasonable solution is to use a large number of small holes (Figure 4b), as these small holes disturb the induced current to a much lesser degree.

Electric Dipole and its Fields

The electric (Hertzian) dipole and its complete fields are shown in Figure 5.

Figure 5: Hertzian dipole antenna and its fields
Figure 5: Hertzian dipole antenna and its fields

The far fields of the electric dipole are

- From Our Sponsors -

Equation 1(1)

Equation 2(2)

Equation 3(3)

The simplified far-field model of the dipole (oriented along the z axis), and the fields at an observation point P at the location (θ = 90°, = φ = 90°) are shown in Figure 6.

Figure 6: Far fields of the electric dipole antenna
Figure 6: Far fields of the electric dipole antenna

Electric source, J, produces the fields and at an observation point P in the far field of the antenna. The medium with intrinsic impedance ηO is infinite with no other objects present.

Babinet’s Principle Applied to a Slot Antenna

Babinet’s principle, modified by Brooker for antennas [9], provides a way to analyze the radiation from slot antennas by treating a conducting strip (of the same dimensions as the slot) like a complementary antenna to shield with a slot.

Figure 7 shows an infinite thin flat metallic shield with a slot cut out, placed between the source and the observation point in the far field.

Figure 7: Far fields in presence of a shield with a slot cut out
Figure 7: Far fields in presence of a shield with a slot cut out

Now, the fields at an observation point P are and , as shown in Figure 7. Next, the shield is replaced by a complementary thin metallic strip of the same dimensions as the slot, as shown in Figure 8.

Figure 8: Far fields in presence of a metallic strip
Figure 8: Far fields in presence of a metallic strip

Now, the fields at an observation point P are and.

The fields in Figure 7 and Figure 8 are related by [9]:

Equation 4a(4a)

Equation 4b(4b)

Next, consider the situation shown in Figure 9a where the electric dipole is rotated and oriented along the x-axis.

Figure 9: Far fields in the presence of a shield with a slot cut out and the metallic strip
Figure 9: Far fields in the presence of a shield with a slot cut out and the metallic strip

Figure 9b shows the fields at the observation point in far fields with the shield containing a slot cut out, placed between the source and the observation point. Figure 9c shows the fields with a metallic strip of the same size as the slot placed between the source and the observation point.

Figure 9 leads to the two additional relations [9]:

Equation 5a(5a)

Equation 5b(5b)

Equations (4) and (5) lead to the conclusion that apertures can be as effective radiators as antennas of the same dimensions.
