Near-Field Wave Impedance of Electric and Magnetic Dipoles

This is the fifth of seven articles devoted to the topic of shielding to prevent electromagnetic wave radiation. The first article [1] discussed the reflection and transmission of uniform plane waves at a normal boundary. The second article, [2], addressed the normal incidence of a uniform plane wave on a solid conducting shield with no apertures. The third article, [3], presented the exact solution for the shielding effectiveness of a solid conducting shield. The fourth article, [4], presented the approximate solution obtained from the exact solution. Both the exact and approximate solutions were derived for a good conductor in the far field of the radiating source. This article begins by discussing the topic of shielding effectiveness in the near field by introducing the concept of wave impedance.

Near-Field Shielding

Note: The following derivations are valid under the assumption that the shield made of a good conductor is much thicker than the skin depth, at the frequency of interest.

The total shielding effectiveness in the near field is

(1)

just like it was in the far field, but the reflection loss for electric sources is different from the reflection loss for magnetic sources (in the far field, the reflection loss for the two sources was the same).

The absorption loss in the near field is the same for the electric and magnetic sources and is the same as it was in the far field. That is,

(2)

Thus, the shielding effectiveness in the near field for electric sources is

 (3)

while the shielding effectiveness in the near field for magnetic sources is

 (4)

Near-field shielding formulas for the reflection loss can be derived using the far-field shielding results for the reflection loss, and the concept of the near-field wave impedance for the electric and magnetic sources.

Hertzian (Electric) Dipole and Near-Field Wave Impedance

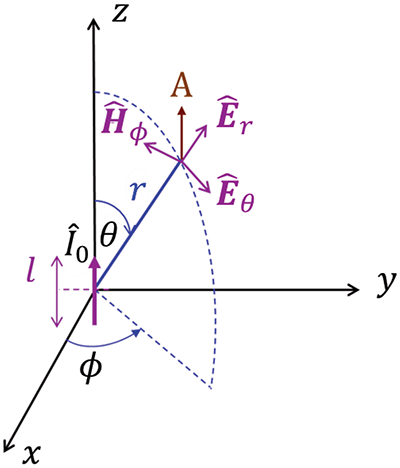

Hertzian dipole, shown in Figure 1, consists of a short, thin wire of length l, carrying a phasor current , positioned symmetrically at the origin of the coordinate system and oriented along the z axis.

The Hertzian dipole complete fields at a distance r from the origin can be obtained from the vector magnetic potential A shown in Figure 1 (see [5] for the derivations), and can be expressed as [6]

 (5a)

where

 (5b)

 (6a)

where

 (6b)

 (7a)

 (7b)

where η₀ is the intrinsic impedance of free space, and β₀ is the phase constant. With this electromagnetic wave, we associate wave impedance, defined as

 (8)

Using Equations (6) and (7) in Equation (8), we get [6]

 (9)

At a small distance from the antenna, βr << 1, the term 1/(βr)² will dominate the term 1/(βr), and the term 1/(βr)³ will dominate the term 1/(βr)².

Thus, the wave impedance in Eq. (9) can be approximated by

 (10)

or

 (11)

The magnitude of this wave impedance is

 (12)

In the very near field

 (13)

For that reason, we refer to the electric dipole as a high-impedance source. Since β ₀ = 2π / λ ₀, we have

 (14)

or

 (15)

In the next article, we will use this expression to evaluate the reflection loss R_dB,e and the shielding effectiveness in the near field for electric sources, using Eq. (3), repeated here

 (16)

Magnetic Dipole and Near-Field Wave Impedance

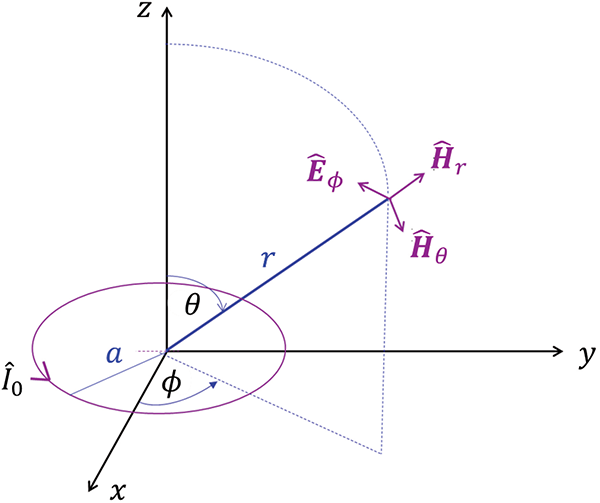

Magnetic dipole, shown in Figure 2, consists of a small thin circular wire loop of radius a, carrying a phasor current , positioned in the xy plane, with the center of the loop at z = 0.

The magnetic dipole complete fields at a distance r can be expressed as [6]

 (17a)

where

 (17b)

 (18a)

where

 (18b)

 (19a)

 (19b)

The wave impedance for the magnetic dipole is defined as

 (20)

Using Equations (17) and (19) in Equation (20), we get

 (21)

At a small distance from the antenna, βr << 1, the term 1/(βr)² will dominate the term 1/(βr), and the term 1/(βr)³ will dominate the term 1/(βr)².

Thus, the wave impedance in Eq. (23) can be approximated by

 (22)

or

 (23)

The magnitude of this wave impedance is

 (24)

In the very near field

 (25)

For that reason, we refer to the magnetic dipole as a low-impedance source. Since β ₀ = 2π / λ ₀, we have

 (26a)

or

 (26b)

In the next article, we will use this expression to evaluate the reflection loss R_db,m and the shielding effectiveness in the near field for magnetic sources, using Eq. (4), repeated here

(27)
