Saelig Introduces BoardMaster Universal PCB Test System

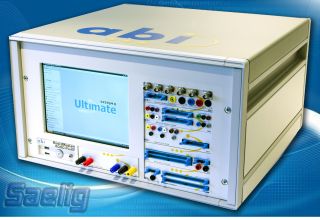

Saelig Company Inc. has announced the introduction of a unique, versatile, self-contained and easy to use PCB test system. The ABI BoardMaster 8000 Plus is a comprehensive set of test instruments including a built-in PC for testing and fault-finding on almost any type of PCB.

A typical BoardMaster 8000 PLUS configuration offers:

- Partner Content -

A Dash of Maxwell’s: A Maxwell’s Equations Primer – Part Two

Maxwell’s Equations are eloquently simple yet excruciatingly complex. Their first statement by James Clerk Maxwell in 1864 heralded the beginning of the age of radio and, one could argue, the age of modern electronics.

• Two Board Fault Locator modules, with 128 test channels for multiple test methods for fault diagnosis and functional testing of digital ICs (in-circuit / out-of-circuit), IC connections status, and voltage acquisition, V-I Curve testing of components on unpowered boards.

• An Analog IC Tester for in-circuit functional testing of analog ICs and discrete components (no programming or circuit diagrams needed). Fully configurable V-I Tester for detection of faults on unpowered boards.

• A Multiple Instrument Station with 8 high specification test and measurement instruments in one compact module (Frequency Counter, Digital Storage Oscilloscope, Function Generator, Digital Floating Multimeter, Auxiliary PSU, and Universal I/O).

• A Triple Output Variable Power Supply provides required supply voltages to the unit under test.

The BoardMaster 8000 Plus provides a cost-effective stand-alone solution for electronic fault-finding across a wide range of industries.

- From Our Sponsors -

For more information on the BoardMaster 8000 Plus, contact Saelig at 1-888-7SAELIG or via email at info@saelig.com.
