Refer To Your Manual

As a product manufacturer, your duty to warn in the United States revolves around your ability to successfully inform people of the residual risks left over after you have done your best to design out or guard hazards that are associated with your product’s entire lifecycle.

By “lifecycle” I mean your product’s shipment, storage, installation, use, service, decommissioning and disposal. A classic problem, especially with machinery, is that there can be lots of safety information you need to communicate, yet the last thing you want is apply so many labels on your product that it looks like an Indy 500 racecar. Too many warnings can be as ineffective as too few as the situation raises the risk of having all the warnings ignored – too much information can lead to the “crying wolf” situation.

An often overlooked but very effective solution to this issue of information overload is to include the symbol standardized in ISO 7010 for “Refer to manual” (as shown in Figure 1) on a safety label that is applied to your product.

- Partner Content -

Why Capacitance? Benefits & Applications of Digital Capacitive Solutions

In this paper, readers will discover digital capacitive displacement measurement solutions not possible with conventional analog systems. The following applications address a wide range of industry sectors.

1202 OnYourMark fig1

Figure 1: ISO “Refer to Manual” safety symbol

To make this work, use a risk assessment process to determine which safety information belongs on the product and which safety information goes in the manual.  Then a “Read and understand manual” safety label, like the one shown in Figure 2, can be used to effectively tie together the on-product warnings and manual.

1202 OnYourMark fig2

- From Our Sponsors -

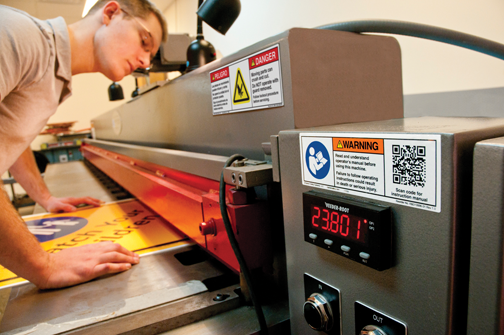

Figure 2:  “Read and understand manual” ANSI Z535 product safety label with QR code in the symbol panel on right

By following this process, you’ve essentially built a three-part system for communicating safety. Use of the internationally standardized “Refer to manual” safety symbol tells even non-English reading viewers that they need to read the manual to stay safe from harm. Creating such a system is important because U.S. courts acknowledge that, as a product manufacturer, your two primary vehicles for communicating safety information are your product’s warnings and instructions. The “Read manual” label reinforces this tie-in and puts you in a position of being able to say, “What more could we have done?”

Yet there is a problem with this safety communication system: will your intended audience have ready access to the manual? In the old days, this was an issue because the manual was often lost or stuck in a file drawer. But in the last year or so, a solution has presented itself: the QR (quick response) code. More and more manufacturers are adding a QR code to the “Read manual” labels we supply to them. Again, see Figure 2. By scanning the QR code with a smart phone, the viewer is immediately taken to the product manufacturer’s website where they can choose to either download a manual or read a specific instruction. This puts that critical information directly into the palm of the hand, right there on the spot. With the smartphone market now accounting for more than 40% of the mobile phones in use in the U.S. and growing at double digit rates each quarter, you now have an even stronger case for saying, “What more could we have done to communicate safety?” When used in conjunction with the specific hazard-related safety labels on your product, your new high tech “Refer to manual” labels will better help you fulfill your legal duty to warn.

For more information about safety signs and symbols, visit www.clarionsafety.com. favicon

author_peckham-geoffrey Geoffrey Peckham
is president of Clarion Safety Systems and chair of both the ANSI Z535.2 Standard for Environmental and Facility Safety Signs and the U.S. Technical Advisory Group to ISO Technical Committee 145- Graphical Symbols. Over the past two decades he has played a pivotal role in the harmonization of U.S. and international safety standards dealing with safety signs, colors, formats and symbols.
