This is the third part of our article “(Re)Discovering the Lost Science of Near Field Measurements.” Part 1 of this article (see In Compliance Magazine, July 2023) explained what near and far field measurements entail, and that one-meter measurements are very much near field. Part 2 (In Compliance Magazine, August 2023) explained the evolution of the earlier 12” and present-day one-meter separation measurements, considerations in antenna selection, the difference between antenna-induced and field strength limits, and the evolution from one to the other. This third part investigates practical problems arising from the misapplication of field intensity and far-field concepts to near-field phenomena.

Practical Problems Arising from the Use of Field Intensity Limits in the Extreme Near Field23

The term “extreme near field” has a specific quantitative meaning in this context. It means that the transmit-receive antenna separation is of the same magnitude as its physical aperture, or less. In the case of radiated emission measurements made one meter away from a test sample with 1.5 m or longer attached cables, not even the Hertzian dipole equations suffice to describe the near field. The Hertzian dipole field equations only apply when the separation distance is much larger than the radiating structure dimensions.24

SAE ARP-958 uses the physical model of two identical antennas in each other’s far field (Friis equation) to calculate an “effective” gain at one-meter separation. This is an effective gain because the antennas are in each other’s extreme near field. Therefore, the antenna factor so derived is only valid for measuring the field at that distance, and the standard of value is that antenna’s response to its own field at that distance. There is no particular value to comparing the “field intensity” measured by (for example) a biconical to the field intensity that biconical would see from another biconical a meter away. In fact, it is quite harmful in that there is an unspoken (and incorrect) assumption on the part of many EMC engineers that the field intensity measured at one-meter separation is scalable in some prescribed manner so as to be able to predict what the measured field intensity would be at another distance.

- Partner Content -

VSWR and its Effects on Power Amplifiers

Voltage Standing Wave Ratio results from an impedance mismatch between a source (an amplifier) and a load (test application). This mismatch can influence the performance of the source.

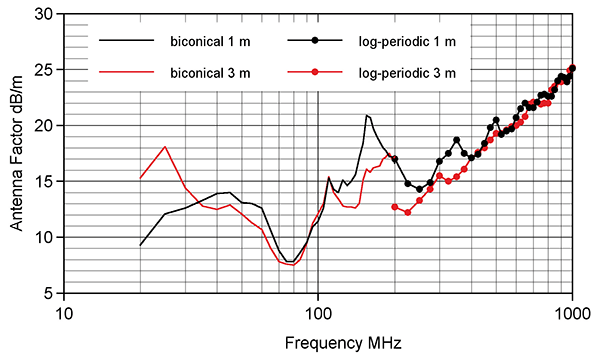

Figure 8 presents data gleaned from an old EMCO catalog. The same sort of information may be found on the ETS‑Lindgren website antenna page.25 If one-meter “field intensity” measurements were scalable, the antenna factors would be identical. Now proponents of field intensity measurements and one-meter antenna factors will rebut the use of such data, saying that one- and three-meter antenna factors are measured differently. And this is true, but it is not fundamental.

Figure 8: One- and three-meter antenna factors

What is fundamental is that the assumption that extreme near-field intensity measurements are scalable violates one of the most fundamental laws of physics, namely the conservation of energy or power. And only some high school physics and algebra is necessary to comprehend this.

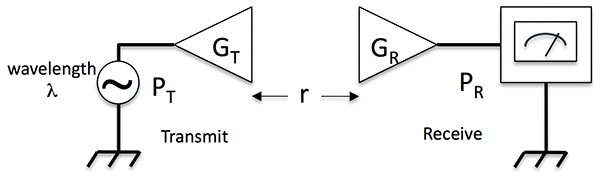

Based on the diagram of Figure 9, the Friis equation may be written as:

PR/PT = GT GRλ2 / (4πr)2

Figure 9: Set-up for understanding Friis equation

The Friis equation assumes that the separation distance places the antennas in the far field. In that asymptotic condition, the gain values are independent of separation, which is what makes far-field antenna calibration useful. But two elementary observations are apparent:

- From Our Sponsors -

The left-hand side ratio is bounded by unity, and in practice will always be less than unity, or 0 dB; and

The right-hand side increases without bound as the separation decreases unless the gain values decrease commensurately.

The inescapable conclusion is that in close, gain is in fact a function of antenna separation. While gain or antenna factor asymptotically approaches a fixed far field value, this means nothing when the antennas are closer in than that.

Assuming half-wave dipoles (far field gain = 1.64 numeric, 2.15 dBi), one may solve the Friis equation for the distance at which the left-hand side ratio is unity, or 0 dB.

r = 0.13λ, or

r = D/4

where D is the half-wave dipole length

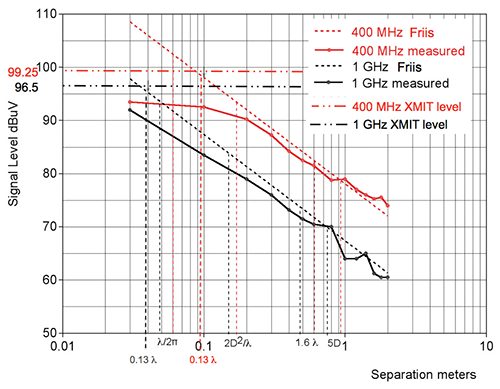

This is a purely theoretical construct that just says the gain must roll off at closer separations than this. Of course, the gain begins to roll off well before this calculated separation. The measured received power levels plotted in Figure 10 were taken using the set-up of Figure 9, with separation “r” variable between 2 meters and 30 cm. Two different frequencies were evaluated: 400 MHz (λ = 75 cm, D = 37.5 cm) and 1 GHz ((λ = 30 cm, D = 15 cm). Figure 10 shows measured vs. theoretical far field PR/PT ratios as a function of separation distance and wavelength. An inspection of Figure 10 shows that long before the far field calculation of received power shows it equal to transmit power, the response has rolled off.

Figure 10: Ratio of received vs. transmit power vs. half-wave dipole separation comparing the Friis equation and measured data

There are complicating factors involved in the close placement of two wire-type antennas, which include dipoles and biconicals. In very close proximity, there is capacitive coupling with which to contend and, above a ground plane, inductive coupling. Further, the direction of energy flow away from the antenna is different close to the antenna than farther away. Schelkunoff and Friis pointed this out long ago.26 Figure 11a is copied from Reference 26 and shows the direction of energy flow (Poynting vector) away from the antenna element as a function of distance along the quarter-wave long antenna element itself and as a function of distance from the antenna. While the mathematics behind Figure 11a are complex, the notional Figure 11b drawing of the electric and magnetic fields from such an antenna provides an intuitive grasp.

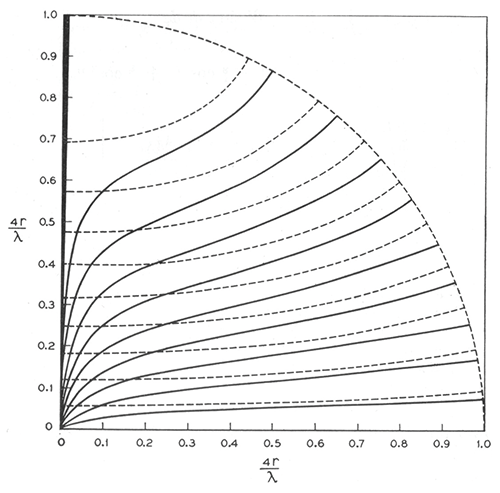

Figure 11a: Poynting vector direction as a function of position along the antenna and distance from the antenna. The solid lines are for an antenna element with a practical length-to-diameter ratio. The dashed lines are for a theoretical antenna element of vanishing diameter. (Reference 26, page 124)

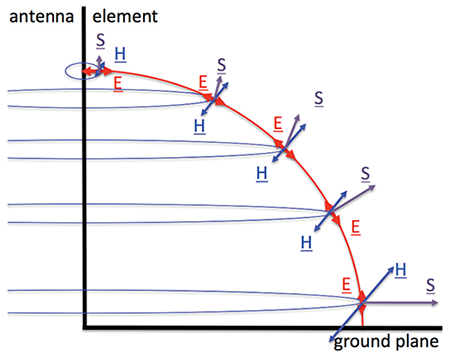

Figure 11b: The ordinate axis represents a quarter wave stub over the abscissa ground plane. Electric field lines are constrained to be at right angles to a perfect conductor. The orientation of the electric field and the circulating magnetic field sets up the Poynting vector direction, as shown in the direction of the two axes. Note that the current vanishes at the tip of the quarter-wave stub, so no current means the Poynting vector amplitude vanishes, as well.

The exact same effect is seen with higher gain antennas: gain derates rapidly from the far field values at separations less than a tenth of the far field distance (2D2/λ).27 Figure 12 is copied from Reference 27 and shows gain derating for both dish and horn aperture-type antennas. Figure 12 is used in the following manner.

Figure 12: Fresnel zone power density from high gain aperture-type antennas normalized to the power density obtained at the far field boundary (copied from Reference 27).

Power density or equivalent field intensity is calculated using the far field gain at the 2D2/λ far-field boundary. Then the appropriate curve is followed inward to the Fresnel zone distance of interest. Here there are no complicating near-field effects from capacitive or inductive coupling, and the quasi-static and inductive regions are contained well within the antenna feed point or phase center. They do not propagate down the waveguide to reach the antenna aperture itself.

The Reference 27 handbook citation is not the origin for this work. It goes back over sixty years and is hardly new.28

The fourth and final installment of this article will list theoretical misunderstandings arising from the erroneous substitution of field intensity for antenna-induced concepts and show the serious practical results of these theoretical mistakes.
