New 2122-2242 MHz VCO

Crystek’s CVCO55CC-2122-2242 VCO (Voltage Controlled Oscillator) operates from 2122 MHz to 2242 MHz with a control voltage range of 0.5V~4.5V. This VCO features a typical phase noise of -105 dBc/Hz @ 10KHz offset and has excellent linearity. Output power is typically +7 dBm.

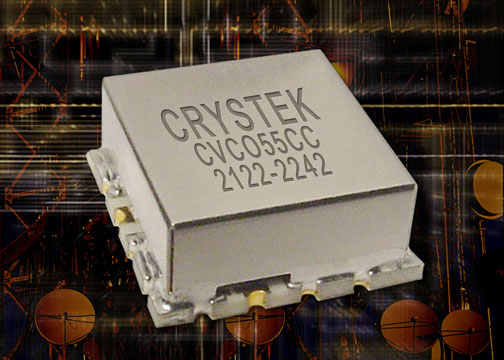

crystek_100907

Engineered and manufactured in the USA, the model CVCO55CC-2122-2242 is packaged in the industry-standard 0.5-in. x 0.5-in. SMD package. Input voltage is 5 V, with a max. current consumption of 40 mA. Pulling and Pushing are minimized to 1.5 MHz and 1.5 MHz/V, respectively. Second harmonic suppression is -15 dBc typical.

- Partner Content -

Shielding Effectiveness Test Guide

Just as interference testing requires RF enclosures, isolation systems in turn need their own testing. This document reviews some of the issues and considerations in testing RF enclosures.

The CVCO55CC-2122-2242 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.

For pricing details, contact Crystek Corporation.

Family datasheets are available for download at www.crystek.com. For more information,contact sales at Crystek Corporation, 12730 Commonwealth Drive, Ft. Myers, FL 33913.
