NASA Space Shuttle’s Return to Flight: The Untold Electromagnetic Backstory

How Applied Electromagnetics Guided the 22 Post-Columbia Shuttle Missions

Editor’s Note: This article was originally published in the June 2019 issue of In Compliance Magazine. We are pleased to reprint Brian Kent’s article in honor of his keynote presentation at this year’s EMC + SIPI Conference, to be held in Spokane, Washington.

Dedication

With deepest respect, this article is dedicated to the extended families and friends of the astronauts lost on Columbia’s final Shuttle mission.

On February 1, 2003, NASA’s Space Shuttle Orbiter Columbia broke apart upon re-entry into the earth’s atmosphere, tragically ending the lives of seven highly-trained and experienced astronauts. This accident not only personally affected the extended families of the astronauts, it permanently changed the trajectory of the U.S. manned space program. After a lengthy accident investigation and root cause analysis, the Shuttle successfully flew again on July 26, 2005. The Shuttle’s subsequent 22 missions made possible the completion of the assembly of the International Space Station (ISS) and provided a final service call for the Hubble Space Telescope, before the Shuttle fleet was retired in 2011.

- Partner Content -

A Dash of Maxwell’s: A Maxwell’s Equations Primer – Part One

Solving Maxwell’s Equations for real-life situations, like predicting the RF emissions from a cell tower, requires more mathematical horsepower than any individual mind can muster. These equations don’t give the scientist or engineer just insight, they are literally the answer to everything RF.

While much has been written about the Shuttle program, this specific article will focus on a very little-known element of the Shuttle’s return-to-flight (RTF) story. Beginning with the Columbia investigation and ending with the creation and deployment of the NASA Ascent Debris Radar (NDR) System, this article will cover the “Electromagnetics (EM) Backstory” that was instrumental in allowing the Shuttle to safely fly again.

The Columbia Accident Investigation and the Flight Day 2 Object: a Brief Recap

On February 1, 2003, the nation witnessed in real time the disintegration of the Shuttle Orbiter Columbia as it attempted to re-enter the atmosphere after its 15-day mission. Within hours, the formal Columbia Accident Investigation Board (CAIB) began its work. Over the next several months, the CAIB gathered evidence to determine root cause of the accident, which included recovering and analyzing fallen debris articles from every state overflown by Columbia’s final de-orbit trajectory.

Summarizing the CAIB’s final [1] report, we quickly home in on the root cause sequence. During Columbia’s ascent on January 16, 2003, the left main tank bi-pod ramp insulation foam broke off the external tank about 81.9 seconds into the flight and struck Columbia’s left wing (an image from a NASA launch camera is shown in Figure 1). Unbeknownst to NASA Mission Control or the astronauts on board, the strike damaged and left a hole in the reinforced carbon-carbon (RCC) leading edge around panel 8 of the left wing. The RCC is considered “hot structure” and the RCC protects the interior aluminum wing structure from the frictional heat of re-entry.

Figure 1: Bipod ramp foam striking Columbia’s left wing during launch ascent on January 16, 2003

Note that Figure 1 is a highly enhanced image produced after the accident, and was not available during the actual mission. In addition, due to the positions of ground cameras and those available on orbit, there was not a clear line of sight to the damaged wing area. NASA material engineers estimating the physics of the kinetic impact suggested a possibility of RCC edge damage. Sadly, there was a lack of program-wide consensus that the wing RCC edge was compromised until the fatal re-entry day.

Through an exhaustive process, the CAIB was able to determine the RCC edge failure as the root cause through three independent investigative paths. First, Columbia’s equivalent of a flight data recorder was recovered in the fallen debris. An analysis of the combined 600 plus temperature, pressure, and vibration sensors verified that the 2000o F re-entry plume entered the left wing at panel 8 and slowly melted the interior structure of the left wing. The wing eventually collapsed and the vehicle disintegrated. Second, the CAIB conducted a series of “air cannon impact tests” in June and July of 2003, wherein pieces of insulation foam were repeatedly fired at various angles and velocities to prove that the foam likely punched a hole in the RCC edge from the Figure 1 wing strike. [2,3]

- From Our Sponsors -

The third and most circuitous path was the EM investigation into the mysterious so-called “flight day two” (FD2) object. During its second day in orbit, when the Columbia was flying in an upside down and backward direction relative to its orbital velocity vector, Columbia performed a slight yaw maneuver to calibrate an on-board navigation sensor, then re-maneuvered to return to its base orbit. Right after this maneuver, low frequency USAF space monitoring radars automatically detected the departure of a small debris piece from Columbia, as shown in the tracking radar data in Figure 2.

Figure 2: FD2 Radar track separating from Columbia’s orbital path versus time [4]

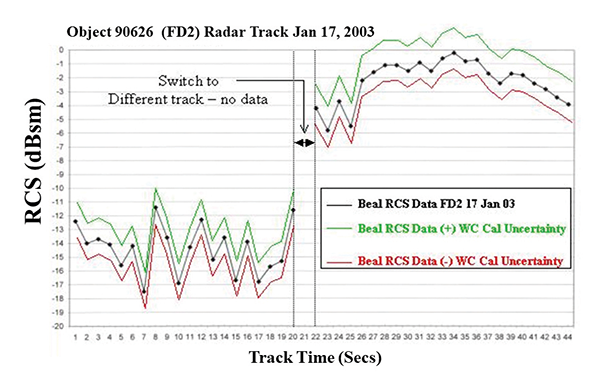

Figure 3: Maximum on-orbit measured RCS of FD2 object on 17 Jan 2003 tracked by Beal UHF Radar [3]

This object was tracked for three days, after which it disintegrated in the atmosphere due to aerodynamic drag. The object was reacquired on multiple days, and the radar data automatically recorded by the source radars. Unfortunately, this data was not known to NASA nor the Air Force until weeks after the accident. In fact, such data was not “knowable” in real time due to the automated nature of the space radar recorders.

As a radar signature expert, I must explain that every radar target has a property called “radar cross section” (RCS) that is a measure of how an object scatters radar energy in all directions. Generally RCS is denoted by the symbol σ, with SI units of m2 or dBsm. RCS generally varies with the frequency of the radar and 32the orientation of the target with respect to the radar. Since the FD2 object tumbled in space, ground radar sensors saw a varying RCS versus time.

After the CAIB investigation began, U.S. Air Force Space Command (AFSPC) analysts determined the aeronautical ballistic coefficient (Bn) from the shape of the ballistic re-entry profile in Figure 2. This meant NASA now had two pieces of technical information about the FD2 object: 1) the RCS at 433 MHz of the object varied between -1 and -20 dBsm +/- 1.33 dB; and 2) its average ballistic coefficient, Bn = 0.1 m2/kilogram +/- 15%. What we didn’t know was FD2’s absolute size as we did not have access to the actual FD2 object itself.

Nonetheless, Air Force Research Laboratory (AFRL) was contacted and I was assigned to investigate whether it was possible to narrow down the potential material candidate of the FD2 object to determine if the FD2 object was relevant to the CAIB investigation.

By February 12th, 2003, I was paired up with Steve Rickman of NASA-JSC, then Chief of the Thermal Design Branch. Rickman’s organization was home to subject matter expertise and had responsibility for the Space Shuttle Orbiter Thermal Protection Subsystem (TPS), and the RCC Leading Edge Structural Subsystem (LESS). His team also was familiar with the Thermal Control System (TCS) materials present on the inside of the payload bay.

Rickman’s team worked with our AFRL team to analyze 24 different potential Shuttle material candidates and provided AFRL with representative samples of all 24 materials. AFRL conducted subsequent RCS measurements in a laboratory called the Advanced Compact Range (ACR) which precisely measured the RCS of these material targets at 433 MHz (see Figure 4). The AFRL team quickly built up a database of possible material RCS characteristics, while NASA independently calculated the area to mass or Bn ratio values for these same materials. Our hope was to reduce the possible number of potential Shuttle material candidates.

Figure 4: AFRL ACR facility for measuring RCS with 12” x 12” TPS sample shown mounted [3]

To our team’s collective astonishment, the initial RCS and Bn data analysis definitively eliminated 21 of the original 24 materials, leaving only 3 remaining Shuttle materials candidates.

During this on-going FD2 RCS analysis, NASA mission specialists mentioned that, in previous Shuttle flights, maintenance tools inadvertently left in the payload bay had floated away. To include the possibility that a lost maintenance tool could have floated out of the payload bay, the CAIB audited the tool record logs for Columbia’s three previous pre-flight maintenance cycles. The CAIB found that only three tools (a screwdriver, a snap crimping tool, and a specialized fastener tool) were unaccounted for. This didn’t mean the tools were necessarily on-board Columbia, but only that they were not accounted for in the ground maintenance logs. Nevertheless, AFRL obtained copies of these three tools, and performed RCS tests that definitively eliminated these tools from consideration as the FD2 object.

After compiling our test results, the AFRL-NASA FD2 team briefed the CAIB in private testimony on April 13, 2003, then publicly on May 6, 2003. This was weeks before the definitive July 7, 2003 Southwest Research Air Cannon test. [3] The remaining three material candidates included: 1) a fractured “acreage” piece (Figure 5) of the RCC edge segment of at least 90-140 in2 originating from RCC panels 8, 9, or 10, panels which are thicker than the other 19 RCC edge sections and whose acreage pieces would be too light to meet the Bn test criteria; 2) an “RCC “tee seal” that fills the joints between wing edge segments had some initial test ambiguities and wasn’t immediately eliminated; and 3) a large piece of Incoflex “ear muff” spanner beam insulator composed of a cerachrome alloy that was present between the RCC edge and the aluminum spar of the leading edge.

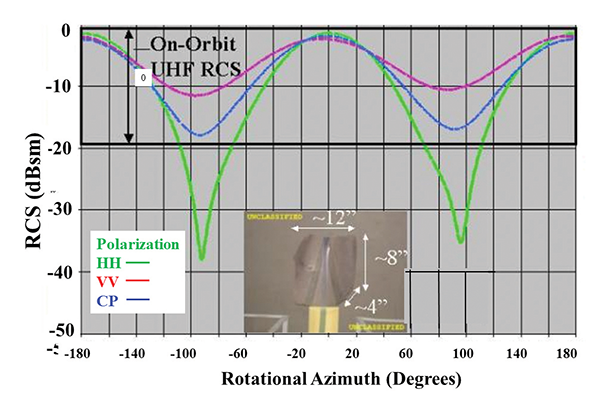

Figure 5: RCS of ~96 in2 fractured panel 8 RCC edge acreage piece at 433 MHz vs Azimuth [3]

Within weeks of the May 6, 2003 CAIB briefing, AFRL executed a complex computational electro-magnetics (CEM) RCS analysis of all 26 Orbiter tee seal geometries (in whole or in fragments) and definitively showed through this analysis that the tee seal could not be the FD2 object (see Figure 6). Finally, subsequent forensic analysis of fractured left wing edge debris pieces recovered from the multi-state debris field showed significant cerachrome alloy melted onto surrounding recovered edge fragments, so therefore the spanner-beam insulator was present during re-entry. This meant the only material that could meet all the criteria of the FD2 object was a fractured piece of RCC edge originating from panel 8, 9, or 10 on the left wing of at least 90 in2 in area. None of the other 23 materials fit the combined exclusionary criteria of having the correct RCS, Bn, and also be forensically supported by other evidence. Hence, through careful EM analysis and high-quality RCS testing, AFRL provided critical EM data supporting the Columbia accident root cause, both of which were cited in the CAIB main report and technical Annexes. [1]

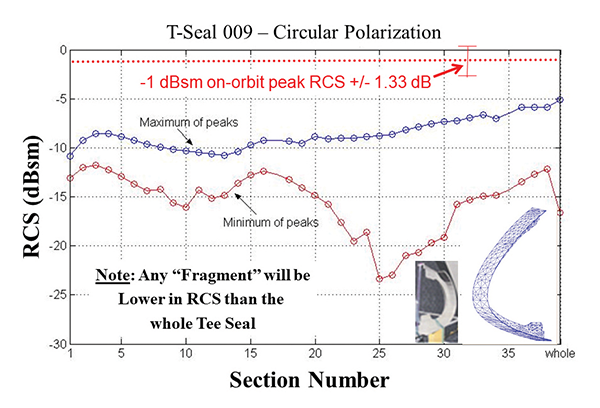

Figure 6: CEM analysis eliminates RCC tee seal as FD2 object as RCS is too low [5]

Shuttle Return-to-Flight – The “War” on Ascent Debris

Within a week of the CAIB report’s publication, I was re-engaged through a phone call from NASA-JSC’s Anthony D. Griffith. A long-time NASA space operations specialist, Griffith had been assigned the problem of detecting any undesired liberated debris from the Shuttle stack during the critical ascent stage. Griffith was a member of a much larger engineering team chartered by John Muratore, then Shuttle Chief Engineer, who had declared a “war” on future unintentional Shuttle ascent debris releases.

Muratore had three areas of emphasis; 1) study all previous historical Shuttle launches prior to Columbia to assess any and all previous debris releases and their potential sources, 2) re-examine the Shuttle stack design elements (Orbiter plus 2 booster rockets plus the entire external tank) from first principles with an emphasis to change designs that reduced debris events; and 3) put together a safety net of optical and radar sensors that closely monitored the Shuttle during the launch and ascent phases to definitively detect/capture debris releases. This information would promptly be provided to the Mission Control flight director on any perceived safety hazards due to liberated debris striking the Shuttle stack.

I assisted with the historical study of radar debris tracks and also provided technical assistance on the new debris radar sensors. By September of 2003, Griffith and I recruited a diverse team of EMI/EMC,
radar and weather experts from NASA-JSC, the U.S. Navy (USN), MIT Lincoln Laboratory, Mission Research Corporation, and the Air Force. The radar team had two primary duties. We first worked to support Muratore’s thrust of pouring over archived tracking radar from previous Shuttle flights prior to Columbia. In the process, we discovered both optical and radar records of debris separation events especially near, during, or shortly after solid rocket booster separation.
Figure 7 shows legacy radar debris data from a low-resolution tracking radar at NASA-KSC. Since the radar resolution was ~+/-150 meters, this tracking radar didn’t give insight into the debris environment, especially debris considered “normal.”

Figure 7: Low resolution USAF tracking radar ascent debris as recorded during a pre-Columbia mission

However, the tracking radars consistently demonstrate that, during the solid rocket booster (SRB) separation period, the entire RCS of the Shuttle increased dramatically. The radar team was asked to figure out the physics of this RCS bloom phenomena. After studying the propulsive design, we speculated that the burned AlCl3O12 (aluminum perchlorate) solid rocket propellant present in the main boosters and the 16 small, quick-firing booster separation motors (BSM) were the cause. The 16 BSM boosters (four at both the top and the bottom of each booster), each kicked out 20,000 pounds of thrust for 0.8 seconds, which pushed the expended main boosters away from the Shuttle stack after the booster net propulsive force turned to net drag. The burned propellant residual was Al2O3, a highly reflective smoke residual, as shown in Figure 8. In addition, the Shuttle’s two main booster rocket engines generated literally tons of both gaseous and liquid Al2O3 “slag” which left a wake in the airstream behind the whole Shuttle stack. But how could we prove this theory?

Figure 8: Shuttle ascent surrounded by Al2O3 smoke during BSM firing preceding booster separation

Working with the USN, NASA and AFRL devised a plume RCS test by firing a series of six individual BSM motors on a captive engine stand at China Lake while measuring the plume and debris signatures. Figure 9 shows the test set-up and Figure 10 shows a sample of dynamic plume data. Indeed, the smoke cloud filled with particulate Al2O3 acted like a giant radar chaff cloud for a few seconds. It also explained why it was going to be nearly impossible to transmit any radar energy directly up to and through the rear end of the Shuttle Al2O3 plume during ascent to “detect” unwanted ascent debris events within the Shuttle stack.

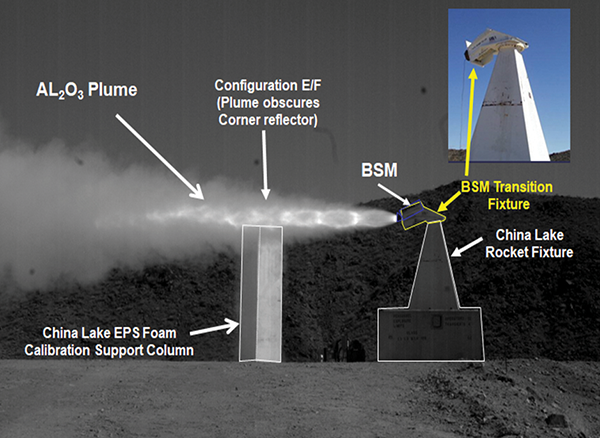

Figure 9: China Lake BSM plume RCS test 2004 [6]

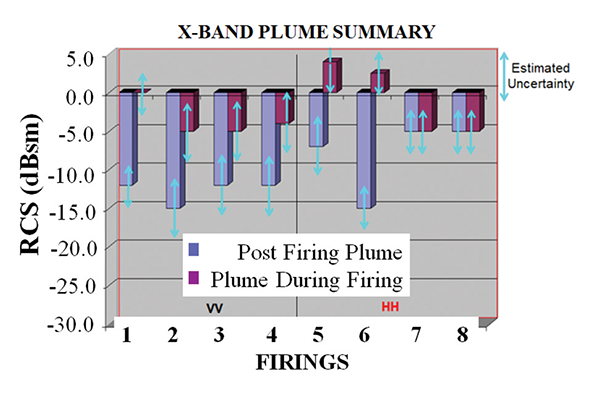

Figure 10: RCS peak for 1 BSM plume (5.4 GHz) [6]

Any potential NASA debris radar (NDR) sensor had to be sited to get a lateral side view of the ascending Shuttle, which ultimately eliminated all possible radar sites southwest of the Shuttle launch pads 39A and 39B, where all current USAF tracking radars were located. The NDR team needed a site to the northwest of the cape, potentially on the grounds of a U.S. Park Service National Wildlife Refuge. How was that going to happen?

Selecting and Siting the Nasa Debris Radar (NDR) System

After obtaining the critical plume RCS data, the NDR team briefed NASA on April 4th, 2004. The team recommended that NASA acquire and employ a combination of a DoD C-band (5.45‑5.95 GHz) high resolution imaging radar combined with upgraded commercial versions of an X-band (10 GHz) high resolution Doppler radar. Although NASA concurrently planned significant visual camera enhancements, radar sensors were absolutely necessary because the remaining Shuttle launch manifest included several night launches where the cameras would have highly degraded performance.

The technology recommended by the radar team was already deployed on USN ship platforms for monitoring western pacific test launches of mobile ICBMs. Furthermore, the USN had recently decided to relocate a $50 million C-band radar from Puerto Rico and were looking for a replacement site in Bermuda or Florida. The USN also supplied technical contacts in Denmark for a Weibel high resolution Doppler radar that worked in the velocity range needed during Shuttle ascent.

The USN’s Charlie McSorley, Mike Hardman, and Marty Stuble jointly spearheaded efforts between the Navy and NASA to get the C-band radar moved. Ultimately, NASA executed a joint agreement with the USN to relocate the C-band radar near Kennedy Space Center. Recall that our plume RCS results required us to site the USN C-band radar for a lateral launch view. Since all big projects need at least some luck, the NDR team finally got a break. We found a small fenced-off 0.5-acre plot on Merritt Island sited to the NNW of Pad 39A. This plot formerly sited a thunderstorm research radar for the National Center for Atmospheric Research (NCAR). The NCAR radar was long gone, but the perimeter fenced land still belonged to NCAR even though it was now on a National Wildlife Reserve. NASA and NCAR quietly and efficiently transferred the property to NASA on permanent loan, and NDR had its radar site!

The photo sequence in Figure 11 shows the original 2004 NCAR site and its transformation to its present form. Figure 12 shows the combined “field of view” of the ascending Shuttle as seen from the fixed C-band NCAR site plus the two, ship-deployed X-band Doppler radar sites. Figure 13 shows the two Dutch-made Weibel Doppler radars deployed downrange on the NASA SRB recovery vessel Liberty Star and on a U.S. Marine Runnymede class LCU.

Figure 11: NDR site July 2004-December 2008
Figure 12: Combined NDR radar coverage from NCAR radar site plus 2 ships with Doppler sensors

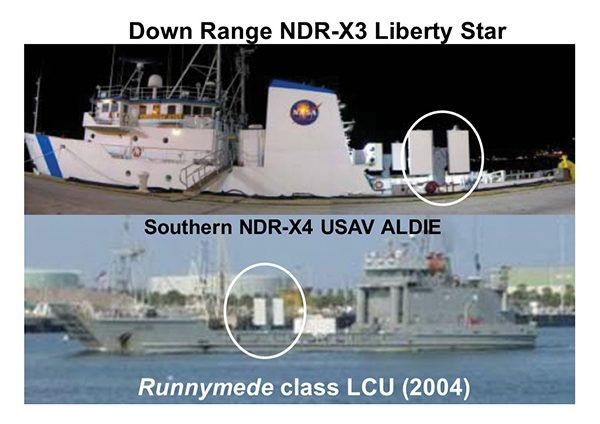

Figure 13: Sea-based NDR Weibel Doppler radars

Characterizing Typical Ascent Debris RCS and Ballistic Properties

With the type and locations of the NDR radars fixed, AFRL, NASA and the USN now collaborated to create a massive theoretical and empirical database of typical Shuttle debris pieces based again on RCS and Bn coefficients. NASA’s debris team had identified hundreds of legacy debris sources from previous Shuttle flights. These debris materials could have originated anywhere on the Shuttle stack or from the Shuttle solid rocket propulsion subsystems. A lengthy list of items was created, and NASA decided to return to AFRL’s compact range to conduct RCS measurements at C and X band for every debris candidate.

Meanwhile, NASA-JSC created a database of matching ballistic coefficient, Bn, for each candidate. This involved hundreds of RCS measurements of everything from various pieces of tank foam, cork insulation, space-qualified RTV sealant and so forth. Each sample was measured from 2-18 GHz, 360o in azimuth, and for three X-Y-Z orientations. The observable signatures were medianized over observable tumbling angles (like liberated debris in free stream air) and their corresponding Bn numbers included. Figure 14 shows a small sample of materials whose RCS was characterized in the ACR.

Figure 14: Debris samples under ACR RCS testing

After compiling data on hundreds of sample combinations, yet another “realism” test was executed. The US Navy loaded up about one-third of the heavier samples, and ejected them from a C-130 Hercules at 10,000-foot altitude. The debris pieces were tracked and RCS characterized with Doppler instrumentation radars out of Patuxent River, MD. Figure 15 shows 4 samples whose dynamic tumbling signatures were measured. This also help correlate the Bn analysis for each sample.

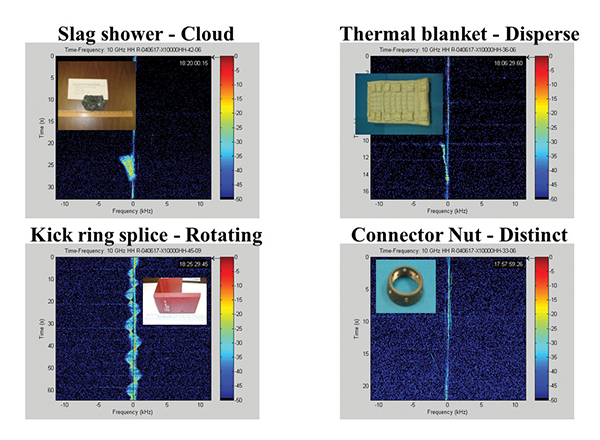

Figure 15: USN C-130 dynamic debris data samples

At the conclusion of these RCS tests, we had a very good feel for the combined RCS and Bn for nearly every Shuttle material. What we didn’t know was whether the NDR system radars, which operated at fairly high powers, would interfere with the operational Shuttle systems during launch and ascent. It was a safety concern that NASA demanded be addressed before return to flight.

The Discovery EMI/EMC Safety of Flight Test

Historically, basic NASA range tracking radars operated on every Shuttle launch. Conventional USAF range safety radars have been in existence for over 35 years and typically operate in C-band at two specific frequencies, 5.69 GHz and 5.8 GHz. NASA needed to better understand the behavior of the radar signatures from debris shedding off the Shuttle during the ascent phase in order to monitor potentially dangerous debris shedding events.

After the acquisition of the NDR system was approved, Shuttle EMI engineers realized these three new monitoring radars would emit frequencies to which the Shuttle had not been exposed during previous launch and ascent operations. The new “debris” radars were to operate in two specific frequency bands, with the C-band radar emitting an FM sweep continuously from 5.45 GHz to 5.95 GHz, and the new X-band “Weibel” Doppler radars tunable to any fixed frequency between 10.0 GHz to 10.55 GHz. Clearly, it became imperative to verify that the new C-band and X-band debris radars would not interfere with any existing Shuttle system during the ascent phase. Since the aft bay of the Shuttle houses the critical Space Shuttle Main Engine (SSME) controllers, NASA was particularly concerned about RF exposure of sensitive equipment inside the aft bay to exterior radar RF levels from outside the aft bay. Fundamental knowledge of the RF shielding characteristics was required before Discovery could be certified for safe flight.

The purpose of the EMI test was to provide NASA an accurate estimate of the RF attenuation at specific radar frequencies of the Orbiter Aft engine bay, including an estimate of measurement uncertainty. The measurements had to be performed while the Shuttle was contained in a hangar-like facility called the orbiter processing facility (OPF). The relative geometry of the Shuttle and the OPF high-bay (HB) 3-door area along with the test receiver is shown in Figure 16. (Note the Shuttle Discovery was located inside OPF 3, and the hanger doors were opened so that the RF attenuation measurements could be made outside.)

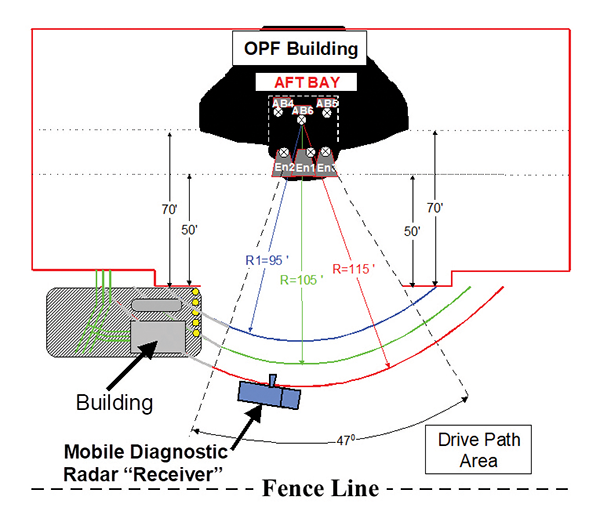

Figure 16: Orbiter Discovery RF attenuation measurement diagram.

During the test, the target was static with all normal work stands in place. The translator platforms behind the aft section of the Shuttle were moved completely to the side to avoid line-of-site blockage between the aft bay and the receiver. In order to achieve the test objectives, the Orbiter was placed in as near-flight condition as possible to simulate ascent attenuation characteristics. Three semicircular drive paths represent a constant mean range between the Orbiter aft bay centroid and the receive antennas during the RF attenuation tests. Attenuation data was obtained for three separate ranges (95, 105, 115 ft) and multiple receive antenna heights (10, 15, 20 and 25 ft). The Cross-X’s in Figure 16 represent six Vivaldi broadband antennas inserted inside the aft bay, three by the rear avionics bay wall and one next to each of the Shuttle’s main engine computers.

The orbiter Discovery was in preparation to launch around mid-July 2005. To assure this RF attenuation measurement data was flight representative, AFRL needed the Orbiter in the closest possible state to flight. It was essential that the AFRL MDL EMI/EMC test did not impact Discovery’s flight schedule. For this reason, we came up with a reasonable test configuration that minimally impacted the Orbiter schedule. Since EM reciprocity allows one to interchange source and receive antennas in a one-way RF measurement, we decided to place the RF radiators inside the Aft engine bay, then measure the RF leakage with a passive receiver positioned outside the vehicle. Since the aft engine bay is physically large, the test team decided to place six, dual-polarized radiating antenna elements inside the aft bay, all connected together with a commercial off-the-shelf (COTS) RF feed network.

To receive the energy, AFRL positioned their mobile diagnostic laboratory (MDL) [7,8] in a receive-only mode as indicated earlier. To help reduce unintentional local electromagnetic interference (EMI) during the RF attenuation measurements, we used the existing MDL radar as the exciter, running a long, fixed cable between the transmitter and the aft bay emitters. During a typical RF attenuation measurement, the MDL was driven along a fixed radius circle relative to a point in the center of the aft bay. The receiver was triggered at regular intervals along the radius, and measurements were performed for all radar bands and polarizations, three ranges and four antenna heights. C-band data was acquired from 5.45-5.95 GHz, while X-band Data was acquired from 10.0-10.5 GHz. Figure 17 shows the MDL receive antennas on the side of the MDL.

Figure 17: Side of MDL showing receive EMI antennas with a pneumatic mast height adjustment

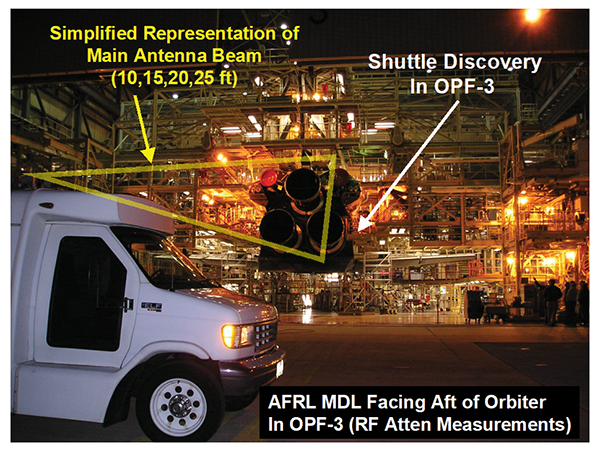

Figure 18: MDL at Discovery’s EMI test Jan 17 2005

The MDL drove along the three drive paths for each antenna height. Figure 19 shows the network used, while Figure 20 shows one of the six interior dual-polarized exciters used. AFRL performed pre-test and post-test network analyzer measurements with MDL pointed at the Discovery during one of its drive paths. AFRL performed pre-test and post-test network analyzer measurements to assure the RF network didn’t change during the test. We also characterized every one of the six distinct RF pathways through the network.

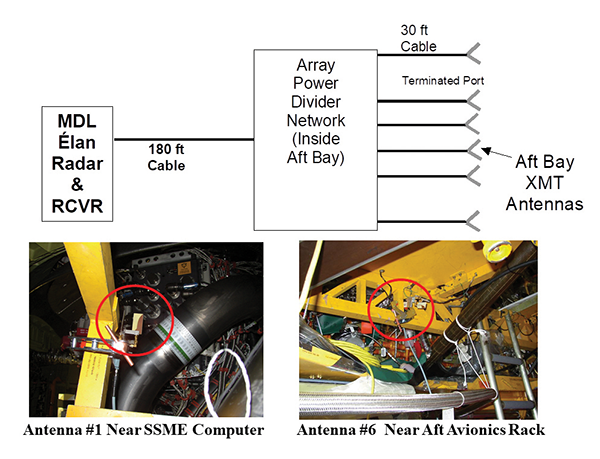

Figure 19: RF network used in Discovery EMI test
Figure 20: EMI dual-polarization exciter antennas

The entire data acquisition was completed in 4.5 hours, and the overall aft bay modification/de-modification for this test was completed in one 16-hour shift. NASA’s Robert Scully co-analyzed the EMI/EMC test data and ultimately certified the results to the Shuttle PRCB, which adopted his recommendations.

In the end, the aft bay EMI attenuation experiment was successful, and the corresponding C-band attenuation data is shown in Figure 21. This attenuation data was combined with a NASA susceptibility analysis. NASA determined that neither the NDR C-band or X-band radar waveforms would create any EMI/EMC disruption of critical Shuttle systems during ascent.

Figure 21: C-band VV/HH aft bay attenuation

EM Simulation Before Discovery Return-to-Flight

With the overall NDR system under construction and sited, it was clear the large 50 ft diameter C-band mid-course radar (MCR) would not be ready by Discovery’s first flight in July 2005. Fortunately, the USN had a similar ship-based radar system called the Navy missile imaging system (NMIS) which operated over the same frequency band but at slightly lower radiated power. The USN had the NMIS system temporarily installed at the NCAR site side-by-side with the larger MCR under construction, providing an operational NDR system from the very first return to flight mission.

However, in order to train the radar operators, NASA needed a true C-band radar simulation of the Shuttle fly-out. This meant calculating the scattered field and RCS of the entire Shuttle stack, properly oriented in space and time relative to the NCAR site. The model had to include the period before SRB staging, SRB staging, and after SRB staging.

AFRL was again called to help, and through the technical leadership of Drs. Kueichien Hill and Tri Van, a viable solution was found. First, Hill and Van created an extremely detailed geometric grid of the entire Shuttle stack. NASA then provided three precise Shuttle-to-ISS fly-out launch trajectories over the five-minute launch window. The geometric grid was then coded into a physical optics-ray tracing RCS code called “X-Patch” and run on the U.S. Army’s best (2005 era) supercomputer.

The Shuttle geometry had over 1.2 million facets. The RCS was calculated at 2048 frequencies, from 5.45-5.95 GHz, for every 1/3rd of a second, and for 302 seconds of mission elapsed time (MET). Given the three trajectories, the overall run-time was over two months of CPU time! The representation of the geometry is shown in Figure 22, and the constructed range-time intensity (RTI) data provided from X-patch is shown in Figure 23.

Figure 22: X-Patch geometry used for predicting C-band NDR radar fly-out range-time-intensity (RTI)
Figure 23: Supercomputer RTI calculations for one of Discovery’s possible launch trajectories.

If NASA understood what basic scattering structure should be in the Shuttle radar returns, undesired departing debris separating from the real RTI plots generated by the radar would be very visible. Although the RCS simulations were calculated every 1/3rd of a second, the real NDR created RTIs at a rate of 160 times a second, making ascent debris much easier to spot as it departed the Shuttle stack. Figure 23’s predicted RTI data nearly overlaid measured RTI data from the Shuttle stack structural scattering. For validation purposes, Figure 24 shows a later comparison at MET = 165 seconds (post staging of SRB’s) of the AFRL predicted (far left and far right) and actual RTI data from two Shuttle flights. (Note the vehicle is nearly 300 nautical miles downrange at this point!) While the plume was not modelled, these calculations provided crucial insight into the Shuttle stack scattering under the orbiter, well ahead of the plume.

Figure 24: Comparing AFRL Xpatch and actual flight RTI data at 165 seconds mission elapse time

Practice Makes Perfect

With the NDR infrastructure constructed and staffed, and Discovery’s July 2005 mission approaching, NASA wanted the NDR to simulate and practice their mission operations. Fortunately, there were several unmanned space launches out of the Kennedy Complex, and the NDR team “shadowed” several launches to learn real-time and post launch debris identification and reporting processes.

The most notable mission was the August 3, 2004 launch of a Delta-2 rocket carrying the NASA Mercury Messenger deep space probe. The Delta 2 was a great target to watch because it had nine strap-on solid rocket motor (SRM) boosters that used the same aluminum perchlorate propellant as the Shuttle SRBs. In addition, six of these boosters lit at lift off, burned for 60 seconds and were then ejected. The remaining three boosters then lit off, burned for another 60 seconds and were also ejected. In short, Delta-2 rockets generate lots of “normal debris” during a typical successful launch.

Figure 25 shows visual images of a daytime (not-Messenger) Delta 2 launch from an onboard and off-board camera, showing the moment of 3 air‑ignited SRM’s separating from the Delta 2 at MET = ~120 seconds. The Messenger launch was at 2:00 am, so we had no such visual camera support, making the Messenger mission a perfect night launch dress rehearsal. The mission was successfully conducted, and the combined RTI and Doppler data processed overnight with clear and stunning results. During the period of six ground-lit SRM’s separating from MET 88-98 seconds, we saw very dim and low-level debris events, including particulate Al2O3 “slag” ejecting from the tumbling but spent SRM booster rockets. [10]

Figure 25: Air-lit SRM Separation from a typical Delta-2 Mission (Courtesy Space.com) [11]

This mission was so crucial to RTF that the NDR team got an unexpected visit from the seven astronauts of the STS-114 crew the following afternoon after the Delta-2 mission. Based on this success and several other unmanned launches prior to July 2005, the NDR was approved for use on the very first RTF mission, STS-114 Discovery.

STS-114 Return to Flight and NASA’s Final Triad of Debris Detection

As the NDR awaited the first Shuttle launch, NASA was exercising for the first time a completely new 3-tiered debris safety protocol for STS-114 and all Shuttle launches to follow. First, during the launch and ascent phase, the NDR radar system and upgraded ground camera systems would monitor the Shuttle stack for launch debris. The most critical periods of the launch were near 62 seconds when the vehicle breaks the speed of sound, and at about 120 seconds when the two SRB boosters are separated. After 300 seconds, the vehicle is largely out of the atmosphere, so debris releases were of much lesser concern.

The powered flight mission lasts about 8.6 minutes, after which the NDR ground radar teams and photo teams go to work, pouring over all data to detect ascent debris events. NASA’s debris teams were especially concerned about any liberated debris that had a secondary collision with the orbiter itself. Radar could see such “ricochet” events as debris tracks that suddenly changed trajectory. In addition, we had installed trajectory overlay software that allowed a 3-dimensional Shuttle to be overlaid with range-time-intensity radar plots, as shown previously in Figure 24. The radar and photo teams had precisely 24 hours to report their findings to Mission Control in Houston.

In the meantime, once in orbit, the Shuttle deployed a second-tier inspection tool on the end of the payload bay boom to self-inspect its entire thermal protection system. Any inspection results would be correlated with the debris events recorded by the combined radar and optical debris teams. Lastly, as the Space Shuttle approached the ISS, the third tier required the Orbiter to perform a full pirouette tumble maneuver before docking, allowing ISS astronauts to photograph the entire Shuttle surface area at close range. This photographic data was also downloaded to a dedicated damage assessment team comprised of subject matter experts who assessed the health of the TPS to determine its adequacy for safe Shuttle re-entry.

At the conclusion of mission, and normally after undocking with the ISS, the Shuttle would again deploy their tier 2 inspection tool in orbit to assure themselves that the TPS system had not be struck by orbital debris during its time on orbit. If all systems showed no damage, the Shuttle would reenter the atmosphere and land. Of course, in the event anything was damaged beyond the ability to repair on orbit, The Shuttle would simply re-dock with the ISS and await a second Shuttle for the ride back to earth.

July 26, 2005 dawned warm and clear at the NCAR sight of the NDR radar system. Nearly a dozen radar technicians and data processing experts were awaiting the launch of Discovery at 10:49 EDT. The launch window was a very narrow 5 minutes long. The launch occurred right on time, and the NDR acquired the Shuttle shortly after it cleared the launch tower. We had excellent tracks for both the C and X band NDR radars, and data was acquired without a hitch.

Then the bedlam of data analysis started. To speed things up, we parsed the mission radar data with parallel teams working 20 second segments of the flight from launch to 450 seconds. The optical teams, working independently at first, were doing the same with nearly 50+ optical HD movie cameras. Our debris event report was due to Mission Control leadership within 24 hours of launch, and the clock was running!

Almost immediately, we got our first challenging debris release. The external tank for the STS-114 return to flight system had been modified to remove much of the foam pieces that had a history of liberation in previous flights. But the first completely new tank design would not be delivered to NASA for three more flights, so everyone expected some foam debris events. One foam release was detected by the on-board external tank camera (inset of Figure 26) which raised immediate concerns. It was a very small piece of foam debris, a tiny fraction of the size of Columbia’s bipod ramp foam release. The camera clearly saw it depart and fly between the orbiter and tank, striking nothing. Despite its small size and very small corresponding RCS, the NDR not only detected this piece, but another smaller foam release the camera could not see. On its very first operational mission, the NDR proved that it could accomplish the debris detection and identification of material based on a combination of RCS, the location of the release, and its ballistic properties, Bn. So the ID strategy that effectively worked in the Columbia FD2 object investigation worked for Return to Flight ascent debris.

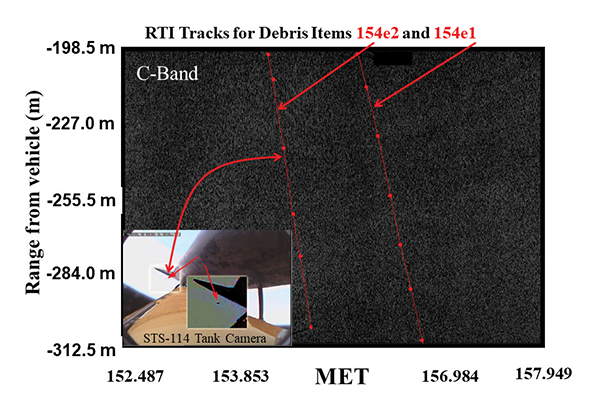

Figure 26: Radar and optical tracks of STS-114 PAL ramp foam debris liberation at MET=154 s

Epilogue – The NDR’s 22 Shuttle Missions

As I worked on the NDR console for the first four RTF missions, NDR evolved operationally. The downrange and in-range ship based Doppler radars, combined with the NCAR C-band site, now gave NASA a nearly 360o view of the Shuttle during launches. STS-117 (the fifth RTF mission) flew the first redesigned external tank. AFRL’s Christopher Thomas and USN’s Hardman and Stuble led mission debris analysis efforts and ultimately created automated software (later patented) which catalogued even harmless and miniscule debris events. Over time, NDR sensors revealed Shuttle’s “war on ascent debris” had been won. The number and size of liberated particles went down dramatically during the critical first 300 seconds of powered flight. Fewer and fewer external tiles required repair after missions. NASA never wavered from their new safety protocol, and the 3-tiered ascent debris inspection protocol was used for the rest of the remaining Shuttle flights.

The Shuttle ultimately completed the ISS and was retired in 2011. As long as the ISS remains in operational service, NASA can proudly point to its completion in the Shuttle’s storied legacy. In the end, NASA recognized those responsible for the myriad of EM analysis, EMI/EMC, and RCS measurements whose backstory played a huge but unseen role in Shuttle’s return to flight.

Acknowledgements

The author wishes to acknowledge NASA colleagues (Steve Rickman, Anthony D. Griffith, Joe Hamilton, Dr. Robert Scully), U.S. Navy colleagues (Charlie McSorley, Mike Hardman and Marty Stuble), and AFRL colleagues (Christopher Thomas, Dr. Tri Van, Dr. Kueichien Hill, Daniel Turner, Capt. Kyle Freundl, Alan Buterbaugh, Christipher Thomas, Thomas Coveyou and Lisa Cravens.) We also graciously acknowledge the IEEE/Antenna Propagation Society’s Distinguished Lecture Program whose support led to the eventual creation of this article.

References

  1. Columbia Accident Investigation Board Volume 1 (August 2003) and Volumes 2-6 (Oct 23, 2003)
  2. https://www.youtube.com/watch?v=aXiZ3RHR3bg
  3. https://bringingcolumbiahome.wordpress.com/2017/06/30/the-smoking-gun
  4. Kent, BM. Hill, K.C., Gulick, J., Van, T., An Assessment of Potential Material Candidates for the “Flight Day 2” Radar Object Observed During the NASA Mission STS-107 (Columbia), Air Force Research Laboratory Tech Note AFRL-SNS-2003-001, 20 Jul 03
  5. Hill, K.C., Gulick, J., Kent, B, Van, T., “RCS analysis of the reinforced carbon-carbon tee-seals as potential ‘Flight Day Two’ candidates in support of the CAIB,” IEEE APS Symposium, 20-25 June 2004
  6. Kent, B.M., Freundl, K., Griffith, A.D., “Mobile Diagnostic Laboratory Measurements of Transient Scattering Characteristics of a NASA Shuttle Booster Separation Motor (BSM) Plume,” Antenna Measurement Techniques Association 17‑22 Oct. 2004 Technical Symposium, Atlanta, GA
  7. Kent, B.M., Freundl, K., Griffith, Anthony D., “Mobile Diagnostic Laboratory Measurements of Transient Scattering Characteristics of a NASA Shuttle Booster Separation Motor Plume,” Antenna Measurement Technique Association 2004 Symposium Digest, 18-21 October 2004, Atlanta, GA, pp 12-17
  8. Kent, Brian M.; Freundl, Kyle; Watkins, John; Coveyou, Thomas; Buterbaugh, Alan; Cravens, Lisa; Aft Bay Radar Frequency Attenuation Measurements of the Space Shuttle Orbiter OV-103 (Discovery), Air Force Research Laboratory (AFRL/SNS) Report TM-05-MDL-01, 17-Feb-2005.
  9. Kent, B.M., Watkins, J. Freundl, K., Coveyou, T., Cravens, L., Buterbaugh, A., Griffith, A., Scully, R. “Electromagnetic Interference Attenuation Test of the Space Shuttle Discovery using the Air Force Research Laboratory Mobile Diagnostic Laboratory,” Antenna Measurements Technique Association Symposium, 30 Oct-4 Nov 2005, Newport RI.
  10. Fletcher, Ed., Dalquist, C., “Support of NASA Delta II Messenger Launch to Mercury Missile Debris Monitoring Proof of-Concept Test, 3 August, 2004,” Missile Defense Division XonTech Systems Los Angeles, CA 10 Aug 2004, Rep. 04-0871
  11. NASA frame capture from https://www.Space.com, posted on https://www.youtube.com/watch?v=21-mn3Mhdhs
