Part 1: S₁₁ One-Port Shunt, Two-Port Shunt, and Two-Port Series Methods

This is the first of two articles devoted to the topic of inductor impedance evaluation from the S parameter measurements (capacitor impedance evaluation from the S parameter measurements was described in [1] and [2]). This article describes the impedance measurements and calculations from the S₁₁ parameter using the one‑port shunt method, two-port shunt, and two‑port series methods. The next article will discuss impedance measurements and calculations using S₂₁ parameters with two‑port shunt and two‑port series methods.

One-Port Shunt Method

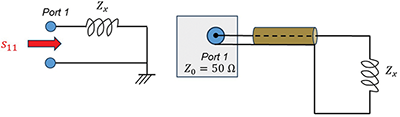

One-port shunt configuration is shown in Figure 1.

For this configuration, the inductor’s impedance in terms of the S₁₁ parameter was derived in [1] as

(1)

Two-Port Shunt Method

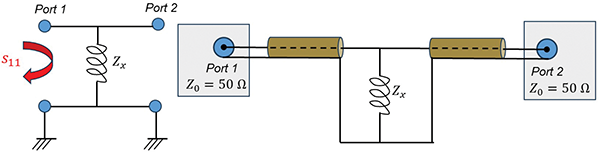

The two-port shunt configuration is shown in Figure 2.

For this configuration, the inductor’s impedance in terms of the S₁₁ parameter was derived in [1] as

(2)

Two-Port Series Method

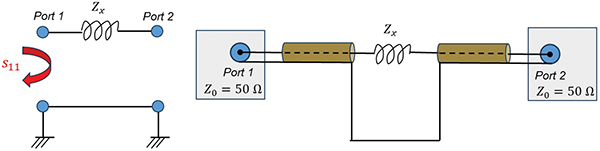

The two-port series configuration is shown in Figure 3.

For this configuration, the inductor’s impedance in terms of the S₁₁ parameter was derived in [1] as

 (3)

Impedance Measurement Setup and Results

The impedance measurement setup and the PCB boards are shown in Figure 4. The boards were populated with Murata RF inductors, LQG18HH47NJ00, LQC18HH15J00, LQG18HH27J00, of the values 47 nH, 150 nH, and 270 nH, respectively.

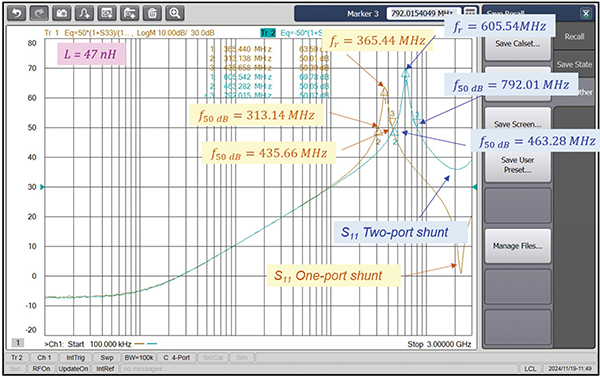

Figures 5 and 6 show the impedance curves for a 47 nH inductor based on the S₁₁ parameter measurements. Figure 5 compares the one-port shunt and two-port shunt configurations, while Figure 6 compares the two-port shunt and two-port series configurations.

Figure 7 shows the inductor impedance curve obtained from the Murata Design Support Software “SimSurfing.” [3].

The one-port shunt, two-port shunt, two-port series, and Murata measurements at 50 dB and at self-resonant frequencies are shown in Table 1.

Clearly, the one-port shunt, two-port shunt, and two-port measurements do not agree with the Murata values.

Figures 8 and 9 show the impedance curves for a 150 nH inductor based on the S₁₁ parameter measurements. Figure 8 compares the one-port shunt and two-port shunt configurations, while Figure 9 compares the two-port shunt and two‑port series configurations.

Figure 10 shows the inductor impedance curve obtained from the Murata Design Support Software “SimSurfing.”

The one-port shunt, two-port shunt, two-port series, and Murata measurements at 50 dB and at self‑resonant frequencies are shown in Table 2.

Again, the one-port shunt, two-port shunt, and two port measurements do not agree with the Murata values.

Figures 11 and 12 show the impedance curves for a 270 nH inductor based on the S₁₁ parameter measurements. Figure 11 compares the one-port shunt and two-port shunt configurations, while Figure 12 compares the two-port shunt and two-port series configurations.

Figure 13 shows the inductor impedance curve obtained from the Murata Design Support Software “SimSurfing.”

The one-port shunt, two-port shunt, two-port series, and Murata measurements at 50 dB and at self-resonant frequencies are shown in Table 3.

Once again, the one-port shunt, two-port shunt, and two-port measurements do not agree with the Murata values.

The overall conclusion is that the inductor’s impedance evaluation from the S₁₁ parameter measurements is not accurate. The next article will discuss the inductor’s impedance estimation from the S₂₁ parameters and show its superiority over the S₁₁-based methods.
