Impedance of the Four Passive Circuit Components: R, L, C, and a PCB Trace

This article investigates the impedance of the three standard passive circuit components (R, L, and C) as well as the frequency response of a PCB trace. It is shown that a PCB trace can be modeled as a resonant RLC network just like the standard components and effectively constitutes the fourth circuit component whose frequency behavior directly effects the impedance of the resistors, inductors, and capacitors on a PCB.

1. Component Models and Simulations

Actual circuit components exhibit non ideal effects that can be modeled by augmenting the ideal model with a parasitic resistance, inductance and capacitance. The parasitics for the three standard components (R, L, and C) considered in this section come from the component itself and not from the connecting traces. The parasitics associated with a PCB trace considered in this section come from the trace itself and not from the other circuit components.

- Partner Content -

Shielding Effectiveness Test Guide

Just as interference testing requires RF enclosures, isolation systems in turn need their own testing. This document reviews some of the issues and considerations in testing RF enclosures.

1.1 Resistor

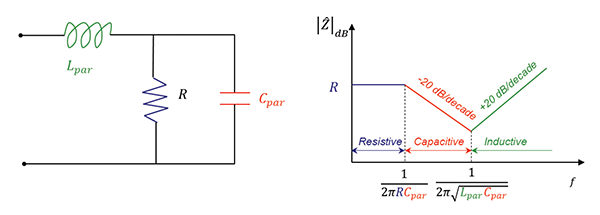

Circuit model and the impedance vs. frequency curve (straight-line approximation) for a resistor and its parasitics (with no traces attached) are shown in Figure 1 [1].

Figure 1: Resistor circuit model and its impedance curve


The parasitic inductance and capacitance in Figure 1 are inherent to the component itself and the fabrication method, and are not attributed to the connecting traces.

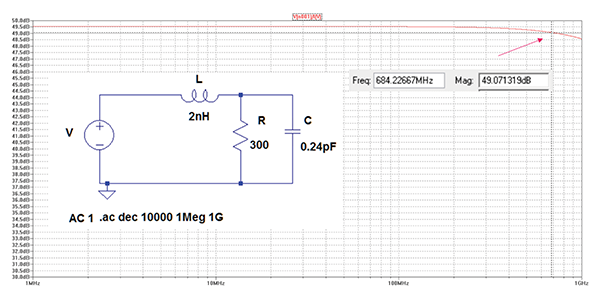

Figure 2 shows the simulation results for a 300-Ω surface mount resistor together with its realistic parasistics (simulation is run between 1 MHz and 1 GHz).

Figure 2: Resistor with its parasitics – impedance vs. frequency (no connecting traces)


The low-frequency impedance stays at 49.5 dB and drops by 1 dB at 1 GHz. The self resonant frequency is well above 1 GHz and thus not shown in the simulation. This simulation result will be confirmed in the measurement section.

1.2 Inductor

- From Our Sponsors -

Circuit model and the impedance vs. frequency curve for an inductor with its parasitics (with no traces attached) are shown in Figure 3.

Figure 3: Inductor circuit model and impedance curve impedance vs. frequency (no connecting traces)

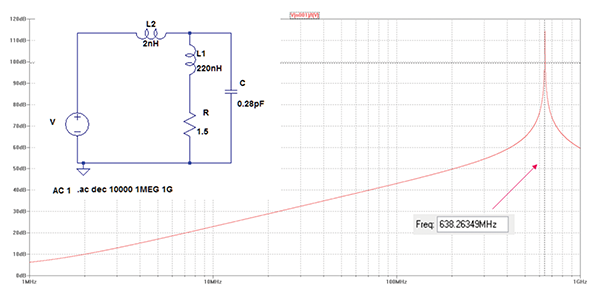

Figure 4
shows the simulation results for a 220-nH inductor together with its realistic parasistics.

Figure 4: Inductor with its parasitics – impedance vs. frequency (no connecting traces)


The self-resonant frequency of the inductor is 638.2 MHz – this result will be confirmed in the measurement section.

1.3 Capacitor

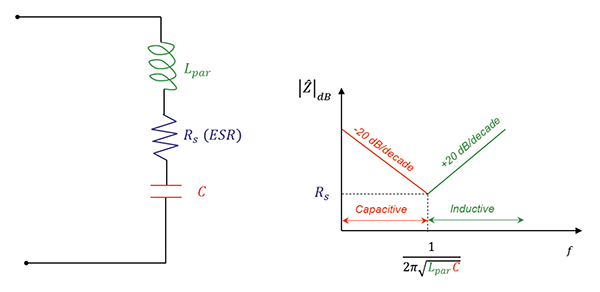

Circuit model and the impedance vs. frequency curve for a capacitor with its parasitics (with no traces attached) are shown in Figure 5 [2].

Figure 5: Capacitor circuit model and impedance curve

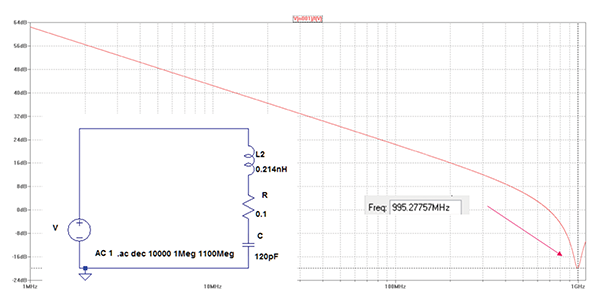

Figure 6
 shows the simulation results for a 120-pF capacitor together with its realistic parasistics.

Figure 6: Capacitor with its parasitics –impedance vs. frequency (no connecting traces)


The self-resonant frequency of the capacitor is 995.2 MHz – this result will be confirmed in the measurement section.

1.4 PCB Trace

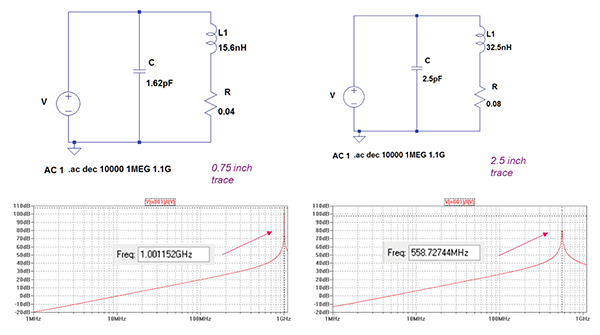

Figure 7 shows the circuit models and the impedance curves for two PCB traces of length 0.75 and 2.5 inches, respectively.

Figure 7: PCB traces with their parasitics – circuit model and impedance vs. frequency (no components attached)


Comparison of these curves with the one in Figure 4 reveals that an unpopulated PCB trace acts as an inductor! The longer trace has larger inductance and hence its self resonant frequency is lower than that of the shorter trace.

These are two very important observations since in any practical circuit, the standard three passive components (R, L, and C) will be connected to other components with PCB traces. These traces will act as the fourth circuit component whose impact will depend on its trace length. The measurement section will illustrate this impact.


2. Impedance Measurements

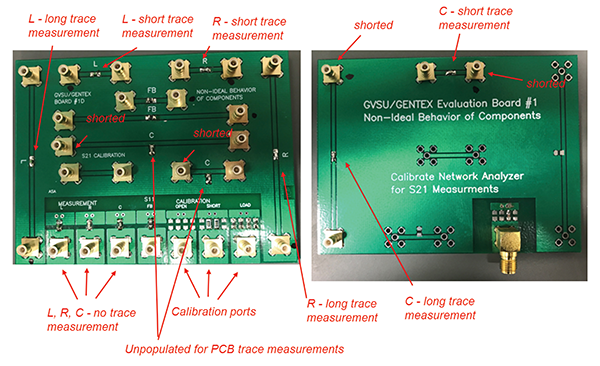

The experimental boards used for impedance measurements are shown in Figure 8 [3].

Figure 8: PCB boards used for impedance measurements


The measurement setup is shown in
Figure 9.

Figure 9: Measurement setup


2.1 PCB Trace

Figure 10 shows the impedance measurement of two unpopulated PCB traces of length 0.75, and 2.5 inches, respectively.

Figure 10: PCB Trace – impedance measurements: a) short trace, b) long trace


Note that the results in Figure 10 are consistent with the simulation results in Figure 7. The short trace resonates at 1 GHZ while the long one resonates at a frequency of 559.8 MHz. This behavior is the direct consequence of the increase in the trace inductance.

2.2 Resistor

Figure 11 shows the impedance measurement of a 300-Ω resistor with no connecting traces and with the PCB traces of length 0.75, and 2.5 inches, respectively. (Resistor used is Stackpole Electronics, Inc. RMCF0805JT300R).

Figure 11: Resistor – impedance measurements with: a) no trace, b) short trace, c) long trace


Note that the result in Figure 11a is consistent with the simulation result in Figure 2. When the resistor is attached with a short PCB trace, the 3-dB point moves from the GHz range to the frequency of 835 MHz. As the trace length increases, this point moves to the left (522 MHz), which is the direct consequence of the increase in the trace inductance.

2.3 Inductor

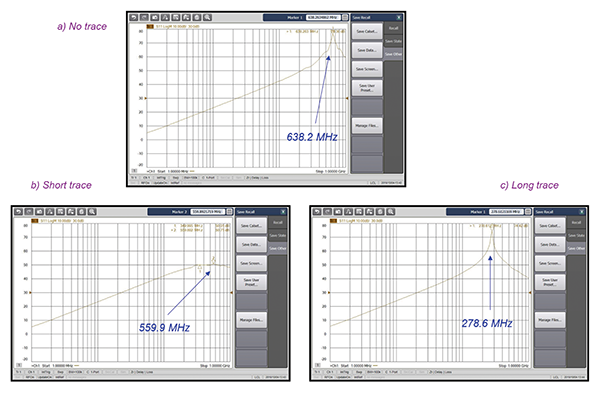

Figure 12 shows the impedance measurement of a 220-nH inductor with no connecting traces and with the PCB traces of length 0.75, and 2.5 inches, respectively. (Inductor used is Murata, LQG18HHR22J00).

Figure 12: Inductor – impedance measurements with: a) no trace, b) short trace, c) long trace


Note that the result in Figure 12a is consistent with the simulation result in Figure 4. When the inductor is attached with a short PCB trace, the self resonant frequency point moves from 638.2 MHz to 559.5 MHz. As the trace length increases, this frequency shifts to the left, to 278.6 MHz, which is the direct consequence of the increase in the trace inductance.

What is noteworthy here is the fact that the inductor connected with a short trace resonates at the same frequency as the unpopulated long PCB trace itself! This result supports the simulation conclusion in Section 1.4: an unpopulated PCB trace acts as an inductor!

2.4 Capacitor

Figure 13 shows the impedance measurement of a 120-pF capacitor with no connecting traces and with the PCB traces of length 0.75, and 2.5 inches, respectively. (Capacitor used is Murata, CGM1885C1H121JA16).

Figure 13: Capacitor – impedance measurements with: a) no trace, b) short trace, c) long trace


Note that the result in Figure 13a is consistent with the simulation result in Figure 6. When the capacitor is attached with a short PCB trace, the self resonant frequency point moves from 993.2 MHz to 612.4 MHz. As the trace length increases, this frequency shifts to the left, to 117.5 MHz, which is the direct consequence of the increase in the trace inductance. Additionally, an anti-resonance point is present at 901.5 MHz frequency.


References

  1. Bogdan Adamczyk, Foundations of Electromagnetic Compatibility with Practical Applications, Wiley, 2017.
  2. Adamczyk, B., Teune, J., “Impact of a Trace Length on Capacitor Frequency Response,” In Compliance Magazine, March 2018.
  3. Bill Spence and Pete Vander Wel, “Designers of the PCB used for impedance measurements,” Gentex Corp, 2008.
