How and Why Varistor Failure Occurs Including the Effect of Multipulse Surges

The Story of the Varistor and the Often-Unappreciated Ways It Can Fail

The year was 2011, and an experiment was being done in China to record the effects of a triggered lightning flash on an overhead transmission line. The line was instrumented to record the induced currents, and the instruments were protected with a metal oxide varistor (MOV). A varistor is often called an MOV (Metal Oxide Varistor). The lightning flash recorded consisted of multiple return strokes, none of which exceeded the Imax rating of the MOV. But, much to the surprise of the experimenters, the MOV was damaged.

How could this happen? And more importantly, why might Imax not be a good basis for selecting an MOV for lightning protection, and are there alternatives? To help answer these questions, we’ll discuss in this article what an MOV is and how the way it is made influences its behavior when surged, how failures occur, and how multipulse surges differ from single surges in their effect on MOV properties.

Varistor Basics

In order to understand failure, it’s useful to discuss how varistors are made. In this regard, there are three things of note.

- Partner Content -

Three Vibration/Balancing Solutions for the Aviation Industry

This paper provides a quick overview of aerospace engine testing solutions for engine vibration/balancing as well as signal conditioning technology from MTI instruments.

First, varistors are a ceramic material composed primarily of zinc oxide (ZnO). At ambient conditions, ZnO crystallizes into a hexagonal wurtzite structure, as shown in Figure 1, where the large balls represent Zn and the small balls represent oxygen (O). This is a complicated structure that, if it crystallized perfectly, would be an insulator. But because the crystallization process isn’t perfect, the resulting oxygen vacancies or zinc interstitials cause this structure to become a wide-gap semiconductor having a relatively low resistivity of 1 – 100 Ω-cm at room temperature.

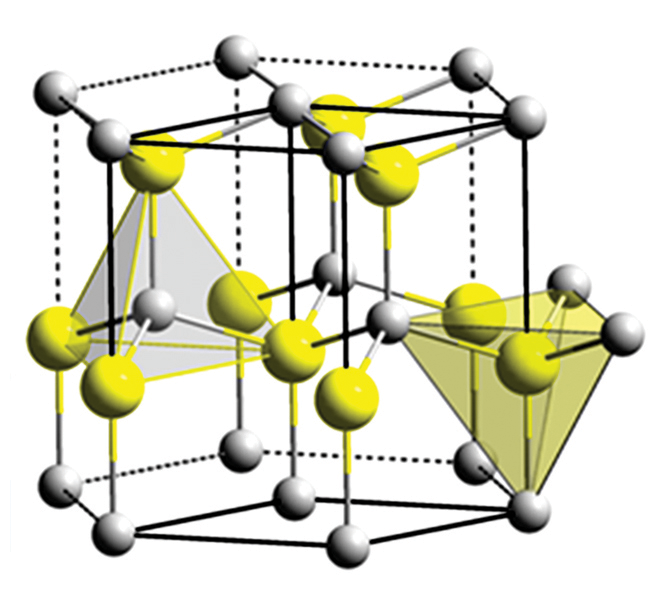

Figure 1: Wurtzite structure. The large balls represent Zn and the smaller balls represent oxygen.

Second, a varistor is not one uniform wurtzite crystal, but many which coalesce into grains. To make ZnO into a varistor, a small amount of Bi2O3 is added. The Bi2O3 goes into the grain boundaries, as shown in Figure 2. In addition to Bi2O3, MnO may be added to enhance the nonlinear properties; Sb2O3 to control the ZnO grain growth, and a small amount of Al2O3 to increase the ZnO grain conductivity.

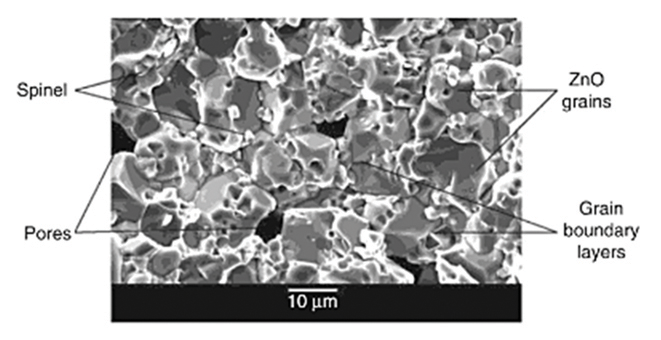

Figure 2: Typical micrograph of varistor structure

The Bi2O3 between two ZnO grains results in the formation of back-back Schottky diodes. So essentially, a varistor is a series-parallel arrangement of n-type material separated by back-back Schottky diodes having a voltage drop of about 2V-3V per grain boundary Junction (independent of grain size). According to He [1], this structure can be characterized electrically by Equation (1).

  (1)

Where V is the applied voltage and I is the current through the varistor. Here, E, A1, A2, Vth and m are constants related to the electrical characteristics of varistor, and α is the usual nonlinear coefficient of the varistor. Equation (1) is useful for explaining the shape of the varistor V-I curve. E is the excitation energy of varistor, K Boltzmann’s constant, A1, A2, and m are constants related to the electrical characteristics of varistor, Vth is the threshold voltage.

- From Our Sponsors -

The first term in Equation (1) is seldom included in the V-I description of a varistor. It is the Schottky emission current in the low current region of the varistor. The second term is the usual nonlinear current in the high current region.

The constants in Equation (1) are controlled by varying the composition of the varistor material and sintering time of the manufacturing process. The threshold voltage Vth also depends on composition and sintering conditions. These control the number of grain boundaries between the two electrodes. Since Vth is proportional to the number of grain boundaries, more grain boundaries result in a higher Vth.

Third, this variation in the varistor fabrication process and the accompanying statistical fluctuations in properties that generally occur in polycrystalline materials cause the resulting varistors to have inhomogeneous electrical properties. That suggests that:

  1. The constants in a varistor model like Equation (1) are likely to be different for every varistor; and
  2. Not all varistors of the same dimensions have the same properties – an important consideration when choosing a MOV for protection.

Varistor Failure

Varistors need to absorb the energy deposited by temporary overvoltage, switching surges, or lightning impulses. Experiments show that differences in grain sizes and grain boundary characteristics cause nonuniform microstructure. Nonuniform microstructure results in the variability of varistor current handling capabilities and related energy absorption capability. That in turn has a direct relation to failure modes, which include electrical puncture, physical cracking, and thermal runaway.

The energy absorption capability can be divided into thermal energy absorption capability and impulse energy absorption capability. Impulse energy absorption capability depends on how the impulse is applied:

  • Single impulse stress
  • Multiple impulse stress (without sufficient cooling between the impulses)
  • Repeated impulse stress (with sufficient cooling between the stresses)

Thermal energy absorption capability, on the other hand, is mainly affected by the heat dissipation capability of the overall arrester design, in addition to the electrical properties of the varistors.

Figure 3: Typical micrograph of grain boundary hot spots

Let’s first consider varistor failure caused by heating. At lower currents, the heating localizes in strings of tiny hot spots, which occur at the grain boundaries where the potential is dropped across Schottky-type barriers (see Figure 3). The heat transfer in this case is too fast to permit temperature differences that could cause failure.

Now consider higher currents. In small varistors (e.g., <25 mm) where the number of ZnO grains between the electrodes might be only about 40, a variation of 3 – 4 grains can cause the current flow in a given path to be an order of magnitude different from surrounding paths. The paths with low breakdown voltages carry most of the current and become hotter, with consequences noted in the study of Sargent et al [4]. In that study, analysis of the failed MOV samples showed cracking and a formation of new amorphous material near the conduction channel. Examination of this amorphous material suggested that local hot spots (actually hot channels) were formed when the energy resulting from a current pulse applied to the MOV was absorbed faster than it could be dissipated. The amorphous material in these hot spots likely resulted from a plasma formed during the current pulse. The hot spots rapidly cooled afterward due to heat conduction to the surrounding ZnO grains.

Under different current conditions, failure modes include electrical puncture (see Figure 4), physical cracking (see Figure 5), and thermal runaway. Cracking happens because varistors are basically a ceramic material, and hitting them with a sharp high-amplitude surge is like hitting a dinner plate with a hammer.

Figure 4: Typical micrograph of a puncture



Figure 5: Typical crack formation

Puncture destruction occurs in small varistors when the current is relatively low and of long duration (for example, see Figure 6). The net effect is that the varistor heats up. The analysis of a puncture in these varistors strongly indicates that a filament forms with temperatures high enough to melt the Bi2O3 (817o C). When this happens the back-to-back Schottky diodes are destroyed, resulting in reduced filament resistance [1]. Reduced filament resistance permits higher current density, sometimes causing a high enough temperature to melt the ZnO (2000o C).

Figure 6: Example of current density and pulse duration combinations that cause failure in varistors. This plot is for a specific varistor. For any other varistor, the scales could be different from those shown.

If the current is continued long enough, the energy deposited in the varistor may raise its temperature to the point of thermal runaway due to the material’s negative temperature coefficient of resistivity [1].

Most high impulse currents with short duration can cause a cracking failure (see Figure 5), which typically occurs at the edge of the varistor, since the temperature increases more at the edge of the chip (the white area in Figure 7). The reason is that grain growth during sintering is often more rapid in the outer part of the block than in the center of the block, resulting in fewer and larger grains between the electrodes, and hence a lower breakdown voltage.

Figure 7: Typical thermal scan of a varistor pulsed under high current

Figure 6 illustrates the conditions under which cracking and puncture can occur. For a given varistor the red solid line shows cases under which cracking might occur, and the black dashed line cases under which puncture might occur.

Failures Due to Multipulse Lightning

Why are we talking about multipulse lightning? Well, lightning observations and artificially triggered lightning data summarized in [6] show that nearly 70% of cloud-to-ground lightning strokes involve from two and up to 26 strikes. These strikes have a geometric mean interstroke interval of about 60 ms. They can also have a long continuing current with an interstroke interval as large as several hundreds of milliseconds. A typical multipulse sequence is illustrated in Figure 8.

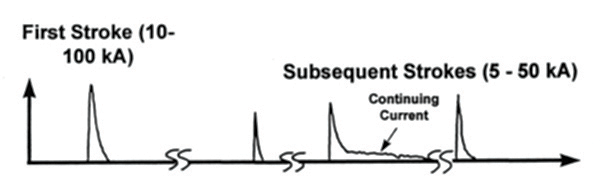

Figure 8: Example of a multipulse lightning flash

Multipulse lightning of the type just described is important because it is capable of producing the temperature rises that lead to the kind of failures just discussed, whereas a single surge might not. For example, in the study by Sargent et al [4], half a set of 18 mm MOV samples were subjected to a multipulse burst of 8/20 surges at rated current. These samples showed signs of damage, whereas the other half of the samples tested with a single 8/20 surge at rated current repeated at intervals of 60 seconds or more showed no damage. In another multipulse burst test, Rousseau et al [7] subjected a MOV to 60 20 kA 8/20 surges spaced 60 seconds apart, with no failure. But when the same type of MOV was subjected to as few as five 20 kA 8/20 surges spaced 50 ms apart, failure occurred. In these cases, varistor failure was likely caused by heat accumulation due to the relatively long thermal time constant of varistors (Figure 9), illustrated for a single surge using thermal modeling as shown in Figure 10 (for details, see [8]).

Figure 9: Thermal time constant of a varistor



Figure 10: Example of temperature rise in a 25 mm MOV subjected to one 10/63 6 kA surge

As noted previously, in the study of Sargent et al, analysis of the failed 18 mm MOV samples subjected to a multipulse burst test showed the formation near the conduction channel of a new amorphous material, which was thought to require a local temperature around 1000o C. Thermal modeling suggested that this temperature rise would occur if the pulse power was concentrated in about 2% of the MOV volume. This is an important observation because a calculation of the energy absorbed in the multipulse burst test showed that the temperature rise of the MOV would only have been 231o C if the temperature distribution were uniform, much less than the temperature thought to have caused the damage.

The results of Sargent et al suggest that the criterion for failure of an MOV is a localized temperature rise to 1000o C (or the vicinity thereof). So for an MOV under consideration, we need to determine if a localized area might reach 1000o C. Figure 11 shows the additional temperature rise that happens when the surge used to create Figure 10 is applied to the same MOV a second time after 30 ms. The additional temperature rise is due to the relatively long thermal time constant of the MOV, which prevents the MOV from dissipating much heat energy (and hence cooling) before the second surge arrives. The temperature rise is now in the red area above 1000o C, where failure is expected. So this is an example of how a varistor can be destroyed by multipulse surges.

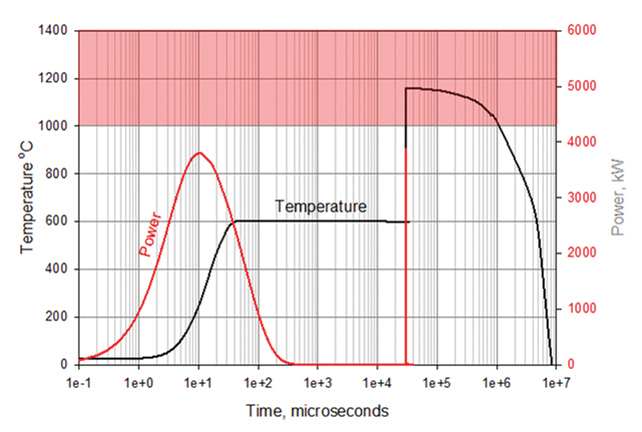

Figure 11: Example of temperature rise for a 25 mm MOV subjected to two 10/63 6 kA surges

In another look at the effects of multipulse lightning, a study by Zhang et al [5] explored the progression of failure in varistors under multiple lightning strokes, using a series of five-pulse groups of 8/20 lightning surges having pulse intervals of 50 ms and pulse amplitudes set at the 20 kA nominal discharge current. The time between the application of one group of impulse currents to a varistor and that of the next group of impulse currents was 30 minutes, allowing a return to the original conditions.

Varistors were judged as having failed when a change greater than ±10% of the original varistor voltage U1mA; the leakage current Iie exceeded 20 µA; or direct damage occurred (typically by edge cracking). The average level change of the U1mA and Iie for the series of impulse groups is shown in Figure 12.

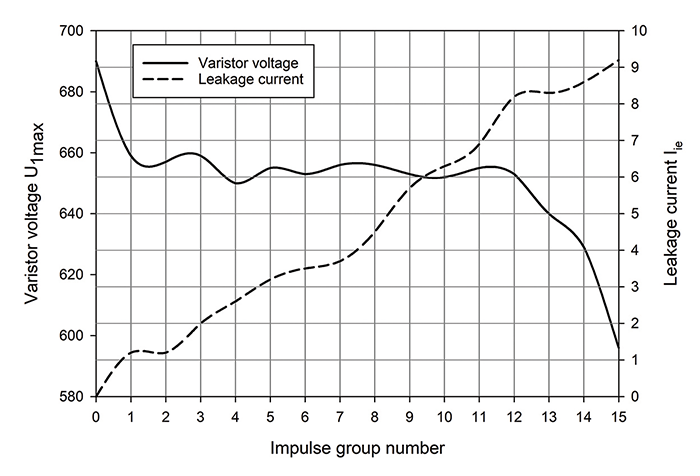

Figure 12: Varistor voltage U1mA and leakage current Iie variation of the varistors under multiple lightning impulse current (source: Zhang et al [5])

Figure 12 shows that in the absence of continuing current a single multipulse burst didn’t deliver enough energy to the MOV to cause failure. Repeated application of the multipulse burst did eventually lead to failure.

So it is possible that a single non-destructive multipulse burst conditions the MOV for failure from future multipulse bursts, as suggested by the continually increasing leakage current. This conditioning could be viewed as a kind of accelerated wear-out process.

Microstructural examination of the failed varistors indicated that after the multiple lightning strokes, the grain size decreased and the proportion of Bi in the grain boundary layer increased significantly. These effects were the cumulative result of multiple lightning currents, and were caused by thermal damage and grain boundary structure damage due to temperature gradient thermal stress. This damage eventually led to failure of the MOV. Note that a single surge test would miss this wear-out mechanism.

Comments

It appears that repeated surging of an MOV alters its microstructure, and understanding how that happens is important to understanding how MOVs fail. Which raises some questions. In particular, is the microstructure degradation cumulative as suggested by the current plot in the previous figure? Or are the effects of degradation obscured until it reaches a critical point as suggested by the voltage plot in the previous figure? The answer is likely to depend on the magnitude and spacing of the surges, and there may be a threshold of surge magnitude and surge spacing below which no significant degradation occurs. More research is needed to answer the questions.

High amplitude short-duration single pulse tests (e.g., 6 kV, 3kA 8/20) are typically used to evaluate varistor failure. This type of test may cause a failure mode different from that in a varistor subjected to multipulse lightning at lower amplitude (e.g., cracking vs. wear-out). Single-pulse tests could also miss heat accumulation failures that multipulse lightning can cause, especially multipulse lightning that includes continuing current.

Case in Point

Back to the failure described at the beginning, a triggered lightning flash having multiple return strokes was recorded during a lightning Experiment. This flash damaged the SPD even though the Imax rating of the SPD (determined by a single surge test) was much higher than the recorded lighting peak current [9]. Why?

As pointed out in [10], what caused failure was the continuing current part of the multipulse sequence, and continuing current is not comprehended in the Imax rating. The continuing current deposited enough energy in the MOV to fail it.

Another Consideration

Since we generally live in a multipulse lightning flash environment, the typical derating plot (created with single surges) as shown in Figure 13 would need to be altered if it is to be used for an MOV that has been installed to protect against multipulse lightning. In particular, the lines in Figure 13 resulting from the (repeated) application of single surges would likely need to be lowered to take into account the microstructural degradation effect suggested by the studies of Zhang et al [5].

A multipulse derating plot could be created by repeating Zhang’s multipulse group test in the same way as used to create the derating figure Figure 13, but now using multipulse groups instead of single surges. So, for example, for the one-hit line, a group of surges with a relatively narrow waveshape would be applied at a current that would cause failure on the second application. The process would then be repeated using groups of surges with wider waveshapes. The result would be something like the top line in Figure 13.

Figure 13: Typical derating curves for an MOV

Similarly, the amplitude of the current would be decreased such that a for the two-hit line, a second group of surges would cause failure on the third application, and the process repeated using groups of surges with wider waveshapes. This process would be continued until enough lines had been generated to adequately characterize the product.

Final note

For more information about varistors, see IEEE PC62.33 ™ Standard for Test Methods and Performance Values for Metal-Oxide Varistor Surge Protective Components [11].

Summary

The varistor fabrication process and the statistical fluctuations in properties that generally occur in polycrystalline materials cause varistors to have inhomogeneous electrical properties. The result is that a few conducting paths with low breakdown voltages to carry most of the current and become hotter. If the temperature of these paths reaches the vicinity of 1000o C, melting occurs and the MOV is destroyed. In the case of 18 mm MOVs, this temperature rise would occur if the inhomogeneities in the MOV cause the pulse power to be concentrated in about 2% of the MOV volume (the 2% may differ in other sizes of MOVs). This temperature rise could be the cause of puncture failure, noted for the case of long-duration lower amplitude surges.

In the case of short-duration high amplitude surges, MOV failure may occur by cracking before melting happens. Single short-duration high amplitude surges might occur on power lines, so MOV ratings established this way can be appropriate for power-line applications

For protection against lightning, ratings established by multipulse testing may be more important. This is because a multipulse lightning surge is often the driver for the temperature rise since it causes energy to accumulate in the MOV due to its long thermal time constant. This is why multipulse testing is important since a single surge test might miss failures that multipulse lightning can cause, notably wear-out, and especially multipulse lightning that includes continuing current. And most lightning is of the multipulse type. The microstructure degradation effect of repeated multipulse surges may need to be considered when constructing derating curves.

Understanding the mechanism of how surging an MOV alters its microstructure is important to understanding how MOVs fail. It is a topic that needs further research.
