Highly Advanced, IO-Packed & Power Efficient USB 2.0 to SPI/I2C Bridge Chip

Highly Advanced, IO-Packed & Power Efficient USB 2.0 to SPI/I2C Bridge Chip | In Compliance Magazine

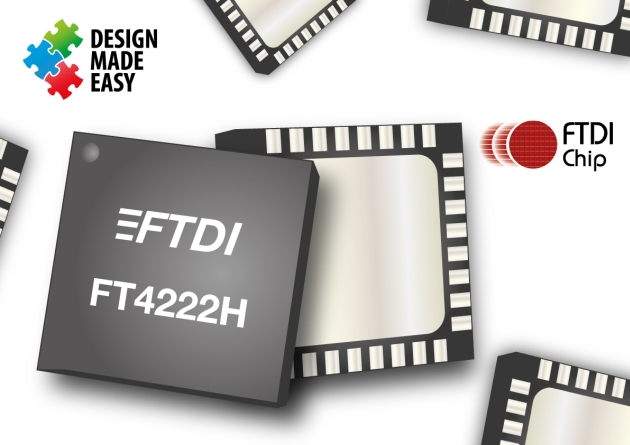

FTDI Chip has long been regarded as synonymous with USB innovation and the company continues to introduce new semiconductor products that are helping engineers implement better designs. The FT4222H is the latest addition to its expansive USB offering. Compliant with the USB 2.0 hi-speed standard, this is a feature-rich single chip bridging solution with I2C and multi-channel SPI interface capabilities.

- Partner Content -

A Dash of Maxwell’s: A Maxwell’s Equations Primer – Part One

Solving Maxwell’s Equations for real-life situations, like predicting the RF emissions from a cell tower, requires more mathematical horsepower than any individual mind can muster. These equations don’t give the scientist or engineer just insight, they are literally the answer to everything RF.

With regard to SPI the device serves as a SPI Master/Slave interface controller and supports all 4 SPI modes (0, 1, 2, 3). It allows single, dual and quad data width transfer, so that total data rates of up to 27Mbit/s are possible. The integrated configurable I2C Master/Slave interface controller conforms completely with both I2C v2.1 and v3.0 specifications. Support is given for operation in 100kbit/s standard mode (SM), 400kbit/s fast mode (FM), 1Mbit/s fast mode plus (FM+) and 3.4Mbit/s high speed mode (HS). Configurable general purpose IOs (GPIOs) can be easily controlled by software applications via the USB bus. The USB 2.0 interface draws very little current either when it is active (75mA typical) or while in suspend mode (375µA typical).

As with other FTDI Chip USB device controllers, the USB protocol is fully taken care of by the IC itself, so that such activities do not waste valuable resources on the system microcontroller, which could lead to performance compromises being witnessed. The FT4222H’s integrated OTP memory allows the storage of USB vendor ID (VID), product ID (PID), device serial number and product description string information, along with various other items of vendor specific data. The battery charger detection function furnishes USB peripherals that incorporate this IC with the ability to detect connection with a dedicated charging port (DCP) and thereby benefit from more rapid charging. FTDI Chip’s proprietary, royalty-free USB drivers for the Windows operating system mean that engineers can, in the majority of circumstances, avoid the inconvenience having to develop their own drivers.

For more information on these products visit: http://www.ftdichip.com/Products/ICs/FT4222H.html.
