GAA Technology: Navigating Future ESD Challenges in Mass Production

To continue Moore’s law, transistor scaling needs to be enabled by geometry innovations. From the 22nm node, bulk FinFET, a multi-gate transistor built on a silicon substrate, has replaced planar FET and become mainstream for mobile SoC applications [1-3]. Beyond the 3nm nodes, bulk gate-all-around (GAA) technology has emerged as a promising transistor architecture, offering superior electrostatic and leakage control [4-8]. Vertically stacked horizontal nanosheets (NS) further enhance driving current per layout footprint [8-11]. CMOS technology scaling will no longer be limited at the transistor level to continue the roadmap further.

New scaling options in considerations of technology co-optimization (DTCO) and system-technology co-optimization (STCO) are being explored to achieve more tailored chip and enhanced system performance, such as a backside power delivery network (BS-PDN). This article examines the impact of double-sided connectivity with BS-PDN on ESD reliability.

Backside Power Delivery Network

BS-PDN was introduced as part of DTCO to enhance functional performance in logic scaling [12]. Metal routing is simplified by separating power and signal pathways, improving frontside (FS) signal integrity, and optimizing backside power delivery [13]. A high-density through silicon via (TSV) or power via is critical for double-sided connectivity between the silicon wafer’s front and back sides. Thinning the wafer to just a few hundred nanometers is necessary to maintain TSV process quality by achieving a proper aspect ratio [14].

Figure 1 illustrates the simplified process flow for achieving a thinned silicon thickness of 300nm and double-sided connectivity with nano-TSV (nTSV) structures. However, reducing the silicon substrate thickness could challenge ESD robustness, as ESD protection devices rely on sufficient Si substrate volume for effective discharge and heat dissipation. Unlike fully depleted silicon-on-insulator (FD-SOI) technology, which allows an open buried oxide layer (BOX) to enhance ESD performance, this option is not viable for double-sided connectivity with BS-PDN [14].

Impact of Extremely Thinned Silicon Substrates on ESD Diode Performance

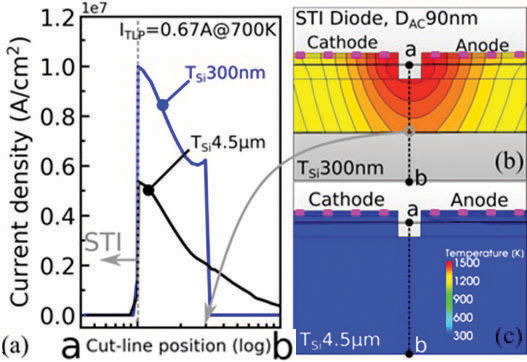

Recent studies have examined the ESD performance of two typical protection diodes—shallow trench isolation (STI) and gated diodes—with extremely thinned silicon substrates [15]. Figure 2(a) on page 48 shows the simulation results of STI diodes with 300nm and 4.5µm substrate thicknesses. The diodes are stressed by a 100-ns TLP stress. The injected TLP current is 0.67A, corresponding to a 1-kV HBM event. The 4.5µm represents the conventional full Si wafer thickness because it is longer than the thermal diffusion length (~3µm) of 100-ns TLP stress [16]. The current density in the thinned STI diode is approximately twice as high as that of the thick diode. In Figures 2(b) and 2(c), the simulation results show that the thinned STI diode certainly fails at 0.67A TLP current, while the thick STI diode remains at a much lower temperature.

For gated diodes, the simulation results (Figure 3) indicate that current penetration beyond 300nm is minimal, suggesting smaller performance degradation compared to STI diodes. Furthermore, the lattice temperature in the thinned gated diode is much lower than in the thinned STI diode.

Proposed Solution: ESD Diodes with Active Backside Technology

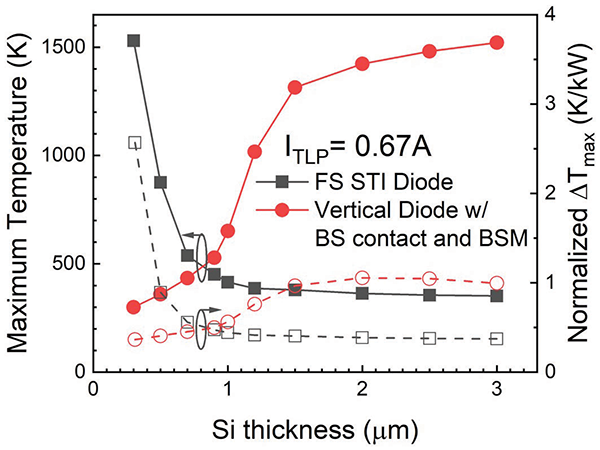

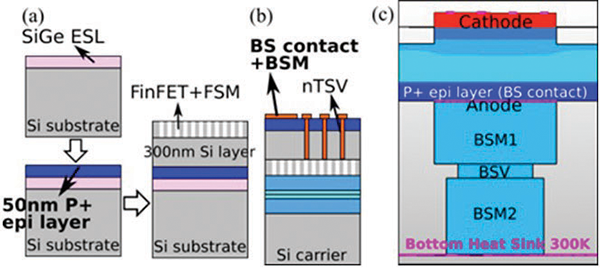

In response to these ESD challenges from substrate thinning and BS-PDN, active backside (BS) technology has been proposed by introducing a p+ epitaxial layer and BS contact patterning (Figure 4) [17]. The vertical diode can thus be enabled offering significant advantages, such as improved area efficiency and ESD current uniformity. Moreover, the vertical diode’s design facilitates better thermal dissipation by incorporating backside metal layers (BSM) as heat sinks (Figure 5). This simulation decouples the impact of heat dissipation from the frontside metals (FSM).

Simulations show that the maximum temperature (Tmax) and normalized increased temperature (∆Tmax) of the vertical diode decrease with reduced silicon thickness, demonstrating substrate thinning is beneficial to vertical ESD diode, especially in extremely thinned Si substrate.

Future ESD Challenges in DTCO and STCO Scaling

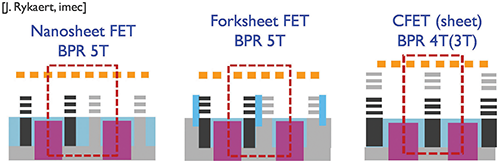

Looking ahead, GAA technology is expected to evolve further. A recent proposal includes a fork-shaped transistor architecture to minimize spacing between p-type and n-type MOSFETs, offering superior scalability compared to current nanosheet architectures [12, 18]. Additionally, complementary FET (CFET) technology, which stacks n-type MOSFETs on top of p-type MOSFETs, eliminates the n-to-p separation bottleneck, significantly reducing the standard cell area footprint (Figure 6).

However, CFET technology presents two key challenges for ESD robustness. First, the thin nanosheet structure and absence of a body terminal limit ESD discharge through parasitic devices, forcing current to discharge through the active channel. Second, the complete isolation between n-type and p-type active regions complicates ESD diode implementation, requiring special process options that may not be compatible with standard flows.
