Fast Evaluation of a Filter or Shield Against an Electromagnetic Pulse

A quick method for predicting instantly the response of filters and shields to a single electromagnetic pulse

Many parameters used in EMC disciplines are defined in the frequency domain. Confronted to a time-domain waveform, it is a common practice for quick estimate to use the equivalent frequency “artefact,” based on rise time tr. However, an uncontrolled use of this fast calculation tool can lead to large under-estimate of some electromagnetic threats like lightning or power line transients, with serious consequences.

The method presented here gives a good approximation for the actual effectiveness of a filter or a shield vs a pulse with given duration “D.” A few examples are given, applied to a conducted 1µs/50µs 1kV lightning pulse and to a magnetic field pulse from a nearby lightning stroke. It is seen that with a prediction simply based on the rise time, a filter, shielded cable or enclosure shielding would have left the designer expecting respectively a 41dB, 30dB or 60dB attenuation, while instead, because of the 50µs duration, he will get only 4dB, 6dB and 18dB.

General Use of Frequency Domain in EMC Discipline

Many characteristic data and performances in EMC trade are given in the frequency domain. This is the case for:

- Partner Content -

A Dash of Maxwell’s: A Maxwell’s Equations Primer – Part Two

Maxwell’s Equations are eloquently simple yet excruciatingly complex. Their first statement by James Clerk Maxwell in 1864 heralded the beginning of the age of radio and, one could argue, the age of modern electronics.
  • Most EMC standard specifications and government emission/immunity requirements
  • Functional bandwidths for analog, RF and digital circuits, which include baseband and bandpass circuits
  • Characteristics of filters, ferrites and shielding components
  • Transfer impedance of shielded cables
  • Shielding effectiveness of various materials, metallic and non-metallic
  • Nomograms and coupling factors for EMI predictions
  • Antenna, current probes and transducers conversion factors and calibrations

Frequency domain calculations are often remarkably easy, especially for quick estimate where they can be based on sine wave assumption, because most coupling effects are simply sinus or cosine functions. However, in a certain number of cases, generally for isolated, transient phenomena like lightning, ESD, power line transients or NEMP, the sine wave hypothesis does not hold, and calculations have to be performed in time domain, using anything from simple maths up to more elaborate derivatives, integral expressions or Laplace transforms, to name a few.

Yet, for simpler, crude estimate, a rather handy time-to-frequency substitution is often used, based on the response of a 1st order, low-pass circuit to a step function. It is the artefact called “equivalent frequency,” which can be summarized as follows:

Unlike a periodic signal which can be translated into a Fourier series of sine waves harmonics, a non-repetitive step, a triangular or a trapeze pulse cannot be regarded as a sine wave, since there is no repetition period, hence no fundamental. But it can be translated into its Fourier integral, which is the basis of the “equivalent frequency” method which states that:

“A single pulse having a 10% to 90% rise time tr and a peak amplitude A0 can be assimilated to an imaginary sine wave that has the same derivative, the same peak amplitude and produce the same result.”

This sine wave does not exist, but its coupling effects on a receiving circuit would be approximately the same as the actual pulse, and some quick calculations become feasible. This equivalent frequency is expressed by:

- From Our Sponsors -

Fequ = 0.35/tr (1)

with F in Hz for tr in sec., F in MHz for tr in µsec., F in GHz for tr in nsec.

The same conversion is used to express the minimum bandwidth needed for processing, with minimum edge “smoothing” a digital pulse having a given rise (or fall) time. For instance, processing a digital pulse with 3ns rise time, requires a bandwidth:

BW > 0.35 / 3.10-9 = 117 MHz

This also indicates that if someone wants to filter an I/O port carrying this signal, without affecting significantly its wave shape, the prospective filter must have a cut-off frequency > 117 MHz. [1]

Common Mistake When Using the Equivalent Frequency Substitution

Nevertheless, an uncontrolled use of the quick equivalent frequency method can lead to large under-estimate of some electromagnetic threats like lightning or power line transients, with costly or fatal consequences.

Actually, when the EMI threat coupling is not just derivative (based on rise time), but also related to the pulse duration, involving a direct conducted coupling, it can represent a substantial energy, the duration being a key factor for the protection of energy-sensitive devices. Therefore, the choice of a filter or shield protection simply based on the equivalent frequency will give a false expectation by showing optimistic results.

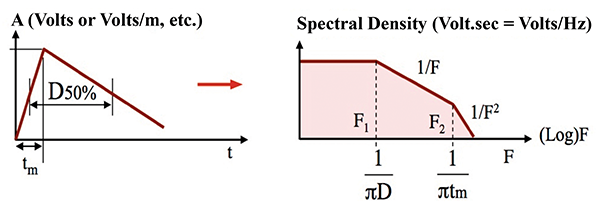

This is shown on Figure 1 where a triangular waveform of current, voltage or field, having a rise time tm and 50% duration “D,” displayed on the left in time domain, is confronted with its frequency representation on the right. The spectrum density has its 1st and 2nd corner frequencies F1 = 1/πD and F2 = 1/π.tm. This F2 frequency corresponds approximately to the equivalent bandwidth discussed previously. In terms of energy, that is (power x duration), related to the area under the spectrum envelope), the largest part is contained in the frequency span up to F1. For instance, with a typical lightning pulse, 60 to 70% of the energy is contained in this area bound by frequency F1.
