What happens when electrostatic discharge protection verification must keep pace with chiplets, 3D integration, and terabit I/O speeds?

As semiconductor technologies advance toward smaller CMOS nodes, heterogeneous integration, and ultra-high-speed I/O interfaces, the design of electrostatic discharge (ESD) protection has become significantly more challenging. Traditional rule-based and empirical methods are no longer adequate for ensuring robustness across increasingly complex, multi‑domain, and multi-technology systems.

To address these challenges, the ESD Association Technology Roadmap [1] outlines a forward-looking strategy built on three major pillars:

1. Advanced Electronic Design Automation (EDA) tools
2. Machine Learning (ML) for ESD data analytics
3. SPICEbased modeling for ESD design and verification

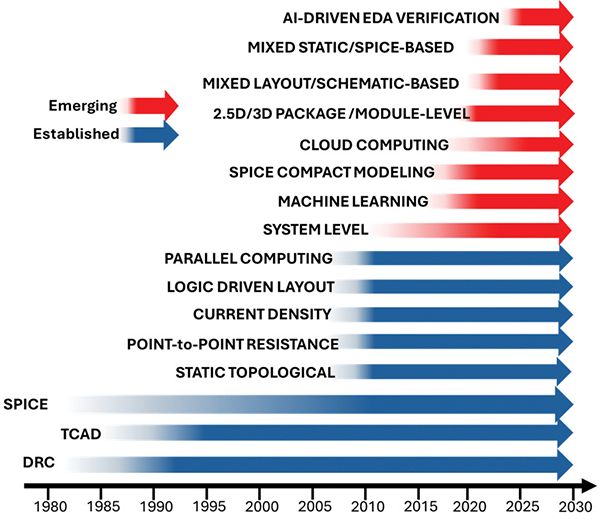

Together, these approaches aim to shift ESD engineering from largely heuristic, experience-driven practices to workflows that are simulation driven, data-assisted, and supported by standardized modeling frameworks. As illustrated in Figure 1, the evolution of ESD focused EDA tools highlights the industry’s progression toward more automated, scalable, and predictive verification methodologies.

1. Electronic Design Automation (EDA) Tools for ESD Verification

Modern ICs integrate multiple voltage domains, mixed-signal circuitry (RF, digital, analog), and advanced packaging such as 2.5D/3D stacks. Verifying ESD protection across such architectures presents significant computational and methodological challenges

1.1 Layout-Extracted Netlist Verification

A key development area is layout-based ESD verification. Layout-extracted netlists are significantly larger and more parasitic-rich than schematic-based representations. They include routing resistances, inductances, and distributed parasitics critical for realistic ESD voltage-drop analysis. However, they are typically available late in the design cycle and impose heavy computational loads.

To address scalability, EDA vendors are incorporating:

• Parallelized execution engines
• Cloud-based distributed computing
• Hardware acceleration (xPU architecture)

A hybrid approach of combining layout-derived parasitics with schematic-level topology (“mixed layout/schematic-based”) is emerging to enable earlier and more accurate ESD evaluation without full layout dependency.

1.2 Multi-Die and Advanced Packaging Verification

Conventional ESD tools are die-centric. Heterogeneous integration introduces die-to-die interfaces, interposers, TSVs, and multi-technology modules that require cross-domain verification. Current toolchains lack standardized formats for netlists, pad definitions, and ESD specifications across die, package, and module views.

The roadmap emphasizes:

• Development of common specification syntax
• Seamless interoperability between IC and package EDA tools
• Unified verification environments spanning schematic, layout, and module abstraction levels

This harmonization is critical for enabling robust ESD verification in chiplet-based architecture.

1.3 Static and Dynamic Convergence

Traditional ESD verification relies heavily on static topological checks (e.g., current density, resistance paths). However, many violations depend on transient behavior. The distinction between static and dynamic verification is narrowing.

Emerging flows integrate:

• SPICE simulations within topology-based EDA checks
• Automated generation of SPICE netlists from topology-based EDA checks
• Dynamic evaluation of power-domain crossings and complex protection scenarios

This “mixed static/SPICE-based” methodology allows more accurate severity assessment of ESD violations.

1.4 AI-Driven EDA Verification

Artificial Intelligence (AI) is expected to augment ESD verification workflows within five years. Potential applications include:

• Automated rule coding assistance
• Intelligent classification of violations
• Suggestion engines for corrective actions

While still in early stages, AI-enhanced EDA promises efficiency gains in complex rule environments involving heterogeneous design objects and multiple verification tools.

2. Machine Learning for ESD Data Analysis

ESD qualification and characterization generate large volumes of test data (HBM, CDM, TLP, latch-up, etc.). Despite partial automation, interpretation remains expert‑driven and time-intensive.

Machine learning is proposed to increase efficiency and reduce evaluation uncertainty.

2.1 Failure Diagnosis and Symptom Recognition

ML systems could:

• Detect failure signatures at early symptom onset
• Avoid redundant stress testing for previously identified root causes
• Recognize recurring parameter shifts and correlate them to known degradation mechanisms.

This requires structured datasets and well-defined labeling of failure modes.

2.2 Protection Design Optimization

A second application involves learning “ground truth” patterns from large historical ESD datasets. Once trained, ML models could:

• Identify likely root causes from waveform or parametric signatures
• Accelerate correlation between device behavior and protection topology
• Reduce iteration cycles in protection optimization.

The challenge is curating sufficiently rich and standardized datasets across industry participants.

2.3 ML-Assisted Compact Modeling

Machine learning can also assist SPICE model development. In cases where physics is partially understood or analytically complex (e.g., snapback behavior), ML techniques may generate behavioral models more rapidly than traditional equation-based approaches.

However, practical deployment requires:

• Reduced training computational cost
• Memory-efficient implementations
• CAD tool integration compatibility

3. SPICE Modeling for ESD Design and Verification

SPICE-based simulation is foundational in IC design, yet its application to ESD protection remains limited. Historically, ESD design has relied on cookbook approaches and rule checks rather than predictive dynamic simulation

The primary barrier has been the absence of accurate ESD-capable compact models.

3.1 Modeling Challenges

ESD compact models must capture behavior far beyond normal operating regions, including:

• High-current and high-voltage regimes
• Snapback in SCRs, BJTs, and MOSFETs
• Voltage overshoot
• Pulse rise-time dependence of trigger voltage (Vt1)
• Conductivity modulation
• Self-heating effects
• Forward/reverse diode recovery

Standard SPICE models cannot reproduce snapback phenomena, requiring custom modeling approaches (e.g., Verilog-A wrappers, macro-models, proprietary C-code extensions).

3.2 Industry Standardization Efforts

The Compact Model Coalition (CMC) initiated an ESD compact modeling program to standardize ESD‑capable models. Key milestones include:

• Release of the ASM-ESD diode model (2023; updated 2025)
• Initiation of an industry-standard ESD MOSFET model
• Hybrid architecture: regular FET model + Verilog-A ESD wrapper

The standardized models aim to balance accuracy with computational efficiency and enable compatibility across EDA platforms.

By 2030, multiple standard ESD compact models will be based on ESD verification integrated into broader design flows.

3.3 Integration with EDA Flows

Dynamic SPICE simulation is increasingly being embedded within topology-based static checks. Simplified SPICE models may be developed specifically for integration into automated verification pipelines.

This convergence represents a fundamental shift from rule-centric to model-centric ESD design methodology.

Conclusion

The ESD Association Technology Roadmap highlights a major transformation underway in ESD design: from empirical, experience-driven methods toward computationally intensive, predictive, and standardized workflows. Key enablers include:

Scalable, layout-aware EDA verification

AIassisted violation analysis

Machine-learning-driven data interpretation

Standardized, ESD-capable SPICE models

As advanced nodes, chiplet architectures, and heterogeneous integration continue to push device limits, simulation-driven and data-assisted methodologies will become essential. By 2030, ESD verification is expected to operate within a unified ecosystem spanning static checks, dynamic simulations, ML analytics, and industry-wide compact model standards.

Acknowledgement

The author acknowledges the contributions of ESDA Working Group 18 (WG18) to the development of the Technology Roadmap chapter on Electronic Design Automation (EDA). The technical expertise and collaborative efforts of the group were essential in shaping the content and direction of this work.

The author extends appreciation to the following WG18 members for their review, guidance, and subject‑matter insights:

• Eleonora Gevinti, STMicroelectronics
• Nicolas Richaud, Intel
• Matthew Hogan, Siemens
• Scott Ruth, AMD
• Mirko Scholz, Infineon Technologies
• Michael Stockinger, NXP Semiconductors
• Paul Zhou, Analog Devices

Their ongoing commitment to advancing ESD design methodologies and supporting industry standards is gratefully recognized.

Reference

ESD Association Technology Roadmap, August 2025.
