EMI Shielding Thermoplastic Compounds: Dramatic Cost Reductions for Electronic Device Protection

Overview of EMI Shielding Compounds

Electromagnetic radiation that adversely affects device performance is generally termed EMI (ElectroMagnetic Interference). Interference takes many forms such as distortion on a television, disrupted/lost data on a computer, or “crackling” on a radio broadcast. Many electronic devices not only emit electromagnetic fields which might cause interference in other systems, but they are also susceptible to stray external fields which could affect its performance. As a result, they must be shielded to ensure proper performance.

Currently, the FCC regulates EMI emission between 30 MHz and 2 GHz, but does not specify immunity to external interference. As device operating frequencies increase (applications over 10 GHz are becoming common), their wavelengths decrease proportionally, meaning that EMI can escape/enter very small openings (for example, at a frequency of 1 GHz, an opening must be less than 1/2”).

- Partner Content -

VSWR and its Effects on Power Amplifiers

Voltage Standing Wave Ratio results from an impedance mismatch between a source (an amplifier) and a load (test application). This mismatch can influence the performance of the source.

The trend toward higher operating frequencies therefore is helping drive the need for more EMI shielding. As a reference point, computer processors operate in excess of 250 MHz and some newer portable phones operate at 900 MHz. Additional EMI background information is provided in an EMI Primer at the end of this article.

Shielding is the use of conductive materials to reduce EMI by reflection or absorption. Shielding electronic products successfully from EMI is a complex problem with three essential ingredients: a source of interference, a receptor of interference, and a path connecting the source to the receptor. If any of these three ingredients is missing, an interference problem cannot exist.

Traditional EMI Shielding

Metals (due to their inherent conductivity) traditionally have been the material of choice for EMI shielding. While effective in terms of shielding, metals can be heavy and bulky solutions to the design challenge of EMI. In recent years, there has been a tremendous surge in plastic resins (with conductive coatings or fibers) replacing metals due to the manufacturing flexibility, durability and weight reduction of plastic components. Even though plastics are inherently transparent to electromagnetic radiation, advances in conductive coatings, conductive fibers and compounding techniques have allowed design engineers to take advantage of the merits of plastics while enhancing EMI shielding effectiveness.

Advantages of Thermoplastics vs. Metals

- From Our Sponsors -

In general, Thermoplastics deliver significant advantages over Metals. As related to EMI shielding, these include:

  • Weight reduction – important in portable systems
  • Design freedom – allows complex contours, part consolidation, and fastening options
  • Cost effective – suitable for higher volumes (needed to offset tooling investment) and reduces assembly costs.
  • Good physical properties – Inherently corrosion resistant and durability as well as high strength to weight ratio.

Competitive Options for EMI Shielding with Thermoplastics

There are many alternative approaches for EMI shielding with thermoplastics. For purposes of this article, only the most popular approaches will be highlighted. A Business Communications Company industry report estimated that the plastics shielding sector will account for 37% ($156 million) of the total United States EMI shielding market ($422 million). The European market is substantially larger (due to more stringent agency standards) and the Asian market is even bigger due to the sheer volume of electronic systems assembled in that region.

EMI Shielding Compounds (Plastics filled with Conductive Fibers)

Over the past few years, EMI Shielding Compounds have arrived on the market by incorporating EMI shielding fiber technology (both Stainless Steel and Nickel Coated Graphite) into thermoplastic compounds. As the plastic resin is insulative, these conductive fibers (with a high aspect ratio) create a conductive network within the resin. Performance of conductive fiber filled compounds is maximized by utilizing special long fiber manufacturing techniques and cube (dry) blending metal fiber bundles in order to minimize conductive fiber damage.

Fiber properties are summarized in Table 1 for the most common fiber fillers for EMI shielding compounds.

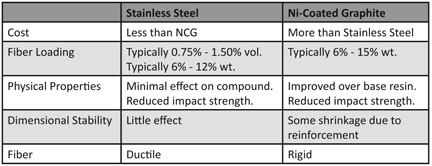

Table 1

Foils and Conductive Fabrics

A metal foil or conductive fabric applied to plastic is labor intensive and ideal only for low volume and simple geometry designs. Without higher volumes (justify tooling investment) or cost minimization objectives, these applications would not be appropriate for EMI Shielding Compounds.

On-Board Shielding

Using a simple metallic inner shield to isolate EMI at the most basic level (Printed Circuit Board, or “On-Board” Shielding) may reduce the requirements for shielding enclosures. EMI Shielding Compounds may be more appropriate than on-board shielding when weight savings, secondary operation reduction, and/or design complexity are desirable attributes.

Plastics with a Conductive Coating

Within Conductive Coatings, there are three significant coating technologies (vacuum metallization, electroless plating, and conductive paints). For the purposes of this article, these three coating technologies will not be compared versus each other. Rather, this article will help the reader become familiar with the competitive processes, advantages and disadvantages, and opportunities for EMI Shielding Compounds.

The three major coating processes are briefly discussed below. Conductive paints are the most common method of applying a conductive surface coating to plastics, but vacuum metallization is gaining ground due to its high quality control. An example of process costs is discussed in a section below.

Vacuum Metallization

  • Multiple stage process that deposits a layer of aluminum on plastic in the absence of air.
  • Size limitations due to vacuum chamber

Electroless Plating

  • Multiple stage chemical process deposits a thin layer of copper (high conductivity and SE) and overplates it with nickel (corrosion inhibition and a good surface for painting).
  • Not all plastics can be plated
  • Offers best shielding of coatings

Conductive Paints

  • Contain particles of silver, copper, or nickel dispersed in an acrylic, vinyl, epoxy, or urethane binder. For general shielding, nickel/acrylic paints have captured major share of market.
  • Automated spraying systems apply the coating with a high degree of consistency and repeatability
  • Market for paints is highly competitive and two major suppliers of conductive paints offer good technical support services
  • Most plastics can be painted (PPO and Nylon do not coat well)

Comparing the Plastic Shielding Alternatives

The advantages and disadvantages EMI Shielding Compounds and Conductive Coatings are summarized in Table 2.


Table 2


While it is rather easy to compare the advantages and disadvantages, it is difficult to compare the shielding capabilities as EMI Shielding Compounds shield primarily by a different mechanism (absorption) than Conductive Coatings (reflection).

The coating industry (where electrical conductivity is a surface property) utilizes surface resistivity as a mechanism to denote shielding capability; however, for absorption shielding (where electrical conductivity is mostly within part walls), there is little correlation between surface resistivity and shielding capability. In EMI Shielding Compounds, there is good correlation between volume resistivity (100 – 10-3 ohm-cm thought to provide effective shielding) and shielding effectiveness.

Laboratory evaluation of shielding material samples (via ASTM D4935) can provide a measurement of shielding effectiveness, but determining the actual shielding effectiveness of a product requires testing of the finished assembly.

During production, coaters test the surface resistivity of parts. While this step eliminates non-conductive parts, it does not identify other quality problems (scratched surfaces or poor coating adhesion and coating thickness variations).

Actual Cost Example of Conductive Coatings

Much has been publicly stated about the “high” costs of EMI Shielding Compounds. This myth may be attributed to trying to compare $/pound compound costs with $/piece shielding costs, and unsubstantiated claims made by the Conductive Coatings industry. When $/piece (not $/pound) costs are considered, EMI Shielding Compounds are less costly than Conductive Coatings.

An actual cost example is highlighted in Exhibit A.

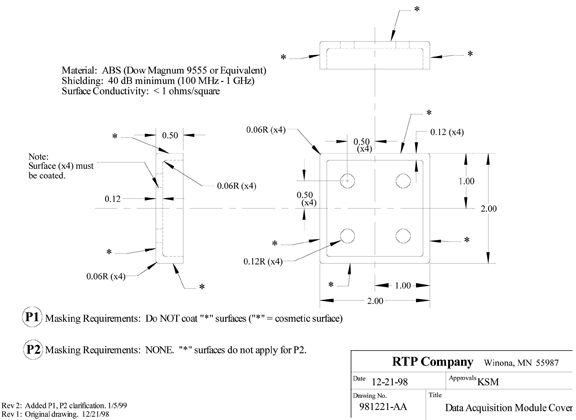

Exhibit A: Sample part drawing used to generate Conductive Coating costs.

Method of Gathering Information

  1. Coaters were advised that an OEM was looking to convert a metal part to plastic. The “revised” plastic part would need to incorporate EMI shielding, which might require a conductive coating.
  2. Drawing 981221-AA (see Exhibit A) was submitted to two painters, two electroless platers, and two vacuum metallizers.
  3. Quotes were received from each coater. Typically, the coater included a unit cost to shield, a tooling/fixturing/masking cost, a scrap rate, and the shielding material. Some coaters quoted both part P1 and P2, while others admitted that one or the other was not compatible with their process.


1. Does not include any molding costs

  • Molding time for EMI Shielding Compounds are the same or less than unfilled polymers due to better thermal conductivity
  • Does not include any injection molding tool or fixture costs. (Same for both.)

2. Typical 3% coating scrap rate not included (supply 103 parts to coater to make 100 “good” parts).
3. Coating costs based on “best” market price of $0.80/pound for ABS.
4. No shipping costs to/from coating supplier.
5. Quantity noted is a lifetime quantity. Not unusual, as part designs continually change when electronics are involved.
6. Shielding effectiveness (and frequency range) is equivalent across all scenarios.

A few key insights related to the Conductive Coatings are:

  • Coaters do not understand shielding. Rather, they just test ohms/square (surface resistivity) and declare the part good/bad.
  • Part design and surface area to be coated are important, not plastic weight.
  • Cost drivers include labor (cycle time), material usage, and batch quantity.
  • No masking (coat entire part) appears cheaper for electroless plating and vacuum metallization (labor more costly than material). For painting, where material costs are significant, there is no clear cut “rule of thumb.”
  • EMI Shielding Compounds appear less costly than painting under both scenarios.

This example was designed to offer Conductive Coatings the most favorable conditions possible. The following items would increase Coating costs (but not affect EMI Shielding Compound costs):

  • Small run quantities at coaters
  • Shipping costs to/from coaters
  • Special packaging requirements (avoid scratching surfaces)
  • Including cost of scrap. Critical for expensive molded parts.
  • Higher than $0.80/pound ABS cost
  • Increasing part design complexity with deep recesses, more surface area, etc. (leading to higher coater cycle times,more conductive coating usage, and/or higher coater masking costs)
  • Higher molding costs (than EMI Shielding Compounds) due to longer cycle times.

Exact cost comparisons are almost impossible to make as there are many variables and assumptions that apply. Yet, even under the most favorable conditions for Conductive Coatings, Figures 1 and 2 highlights that EMI Shielding Compounds are less costly than Coatings under both low and high volume applications.

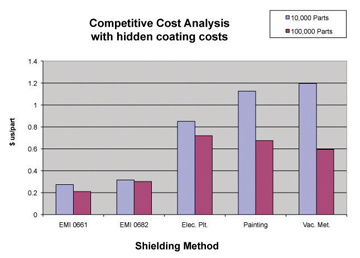

Figure 1


Figure 2

EMI Primer

What is EMI?

Electromagnetic radiation that adversely affects device performance is generally termed EMI (electromagnetic interference). Many electronic devices not only emit electromagnetic fields which might cause interference in other systems, but they are also susceptible to stray external fields which could affect its performance. As a result, they must be shielded to ensure proper performance.

An electronic device exhibits EMC (electromagnetic compatibility) if it operates effectively in its designated environment without unacceptable interference to other devices.

What does EMI consist of?

Electromagnetic waves consist of both an E (electric) field and an H (magnetic) field oscillating at right angles to each other. The ratio of E to H is called the wave impedance (measured in ohms). A device operating at high voltage, with only a small amount of current flow, generates waves with high impedance. These are considered E fields. Conversely, if a device contains a large current flow compared to its voltage, it generates a low impedance, H field.

The importance of wave impedance is shown by an EMI wave encountering an obstacle such as a metal shield. If the impedance of the wave differs greatly from the natural impedance of the shield, much of the energy is reflected and the rest is transmitted across the surface boundary where absorption in the shield further attenuates it.

EMI emissions from most electronic devices are typically high frequency, high impedance. The major wave component is the E field. Metals are intrinsically low impedance because of their high conductivity. Thus, the high impedance E wave energy is mostly reflected from metal shields. Low impedance waves (H field dominant) are mostly absorbed in a metal shield because they are more closely matched to the metal’s inherent impedance. For maximum H-field absorption, shields need to have high magnetic permeability (ability of material to serve as path for magnetic energy).

In general, the intensity of the interference caused by the signal diminishes with increasing distance from its source.

What is EMI shielding?

Shielding is the use of conductive materials to reduce EMI by reflection and/or absorption. Shielding can be applied to different areas of the electronic system from equipment enclosures to individual devices (such as circuit boards).

Effective placement of shielding (barrier between a susceptible system and an external source of electromagnetic radiation) causes an abrupt discontinuity in the path of electromagnetic waves. At high frequencies, most of the wave energy is reflected from a shield’s surface, while a smaller portion is absorbed. At lower frequencies, absorption generally predominates.

Shielding performance is a function of the properties and configuration of the shielding material (conductivity, permeability and thickness), the frequency, and distance from the source to the shield.

What does Grounding have to do with EMI shielding?

Conductive components are grounded to protect equipment users from electric shock. If a system is properly grounded, all conductive elements are theoretically at zero potential.

Shielding against EMI emissions is commonly provided by a conductive enclosure. The separate parts of the enclosure must be electrically bonded together and grounded for the shielding to work. Ineffective grounding may actually increase EMI emission levels, with the ground itself becoming a major radiating source.

What is Shielding Effectiveness?

How well a shield reduces (attenuates) the energy of a radiated electromagnetic field is referred to as its shielding effectiveness (SE). The overall expression is:

shielding effectiveness = reflection loss + absorption loss + small correction factor for back surface reflections

The standard unit of SE measurement is the decibel (dB). The decibel value is the ratio of two measurements of electromagnetic field strength taken before and after shielding is in place. Every 20 dB increase in SE represents a tenfold reduction in EMI leakage through a shield. A 60 dB shield reduces (attenuates) field strength by a factor of 1,000 times (e.g., from 5 volts per meter to 5 millivolts/meter or a 99.9% attenuation level).

Shielding requirements for commercial electronics generally range from 40 to 60 dB. Establishing a system’s shielding requirements involves determining the radiated frequencies and the government specifications the unit must meet.

Among the typical applications for EMI shielding are the following:

EMI should be considered at the design phase of any system so that potential interference problems can be minimized. Since interference problems can occur anywhere within a system, shielding consideration needs to be given to the whole assembly:

  • Printed Circuit Boards (PCB) – Noise originates and ultimately may affect the board level (most basic) components.
  • Cables – Signal-carrying cables can act as antennas to radiate EMI. A number of shielding products (not related to EMI Shielding Compounds) can reduce EMI cable problems.
  • Apertures – The amount of EMI leakage through an opening is a function of the maximum dimension of the opening. A long, narrow slot will leak much more radiation than a round hole of the same area. A slot can act as an antenna if the length exceeds one half of a wavelength (problem becomes greater at higher frequencies). Conductive EMI gaskets inserted between mating surfaces preserve current continuity of the enclosure, thereby minimizing leakage.
  • Enclosures – Typically made from metal, Conductive Coatings, or EMI Shielding Compounds. Enclosures must be penetrated at various points to allow entry of cables, provide access for repair/assembly, provide ventilation, and create windows. Without attention to the design and shielding of these features, the assembly will behave like a leaky bucket.

Where is EMI shielding needed?

Uses for EMI shielding abound in computers, medical devices, telecommunications, and other types of electronic equipment. This type of equipment contains micro-circuitry that switches at high speed. Each switching event results in a short duration electrical pulse, which has a characteristic frequency inversely proportional to its time length. The FCC regulations define specific field strength limits between 30 MHz and 2000 MHz (2 GHz).

A Word About EMI Regulations

FCC regulations classify devices by their intended market – Class A devices include products for industrial and business environments while Class B devices are primarily intended for use in homes. FCC emission standards are more stringent for the mass-market Class B equipment than the Class A equipment.

Manufacturers of electronic products contend with three EMI issues:

  • Suppression of internally generated EMI to prevent excessive levels of radiated and/or conducted emissions. The FCC in the United States and European Community (EC) set standards for EMI emission levels that electronic devices must meet before being sold in those countries.
  • External ambient interference with equipment operation. Many companies set their own specifications for immunity to EMI over a range of frequencies. This is not yet a FCC requirement, however EC regulations do include immunity requirements.
  • Internally generated emissions interfering with equipment operation. EMI from one circuit can interfere with the function of another in the same system or subsystem (cross-talk). This problem frequently occurs in equipment with high-density packaging of PCBs and is the most common source of system EMI susceptibility.

How are devices tested for EMI Compliance?

Compliance testing requires sophisticated equipment and must be performed by accredited labs. If emission problems are found, the device will require additional shielding or redesign. favicon

Neil Hardwick is a Marketing Manager for Conductive Products at custom thermoplastics compounder RTP Company. Hardwick has a BS from Purdue University and a MBA from Indiana University plus 15 years of experience working with conductive materials.  He can be reached at or (720) 862-6469.
