EMC Archaeology: A Tale of Two Meters

Of Decibels and Centibels, and EMC Engineers in a Row

Vintage meters
1930s vintage Ferris Model 32 radio frequency volt and field intensity meter on the left; 1950s replacement AN/PRM-1 (Stoddart Aircraft Radio Company NM‑20) meter on the right. The NM-20 “big leap forward” was the inclusion of a peak detector circuit. (Image and all images in this article courtesy of the Museum of EMC Antiquities.)

The ubiquitous 41” rod antenna has been used to measure electric fields below 30 MHz for over seven decades. Most EMC engineers know that the effective height of an electrically short whip is precisely half its physical length. But the effective height or length of the 41” rod element is taken to be a half-meter. Given that a meter is not 41 but 39.37 inches, there appears to be a small discrepancy.

Similarly, the capacitance of a short whip is a function of both length and diameter. A capacity of 10 pf is almost universally used for the 41” rod element, but in fact, that is the capacity of a one-meter length whip with 1/8” diameter. Since rod elements are 41” and range in diameter from around ¼” to a centimeter or more, depending on manufacturer, the capacity is always higher than 10 pF.

If these conundra have had the reader tossing and turning, lying awake at night, reading this short article will reveal the historical reason behind the disparities, and that, while the history is interesting, the disparities do not significantly affect measurement accuracy. Having read this very short article, the reader will be better informed, his concerns will be allayed, and he can rest easy.

- Partner Content -

How to Perform a Radiated Emissions Measurement

Radiated emissions testing is the measurement of the electromagnetic field of the emissions that are unintentionally being generated by the equipment under test.

A small consulting job recently brought to the author’s attention that the latest revision of SAE ARP-958 lists the effective height of the 41” rod antenna not as the traditional 6 dB below one meter but instead as 5.6 dB below one meter.1 This is based on using the 41” (1.04 m) length as opposed to precisely one meter, the latter having been the custom for seventy years, even including previous revisions of ARP-958, going back thirty years.

There are two interrelated aspects to this: one trivial and  the other more interesting.

The trivial aspect is that if one is computing to the nearest centibel in a field of endeavor where +/- 3 decibels is a holy grail, at least do it right. Compute in millibels and round off to the nearest centibel:

41 inches • 0.0254 m / inch = 1.0414 meter

he = 20 log (physical length/2) = 20 log (1.0414 m / 2) = -5.668 dB meter

- From Our Sponsors -

That rounds to -5.7 dB above one meter, not -5.6. If we are going to be pedantic, let’s do it right.

The more interesting question, though, is why have we used a 41” rod element all this time and always approximated the effective height as one‑half meter. While the 0.3 or 0.4 dB error is truly minor (unless one is enamored of centibels), it would have been just as easy to have a one-meter-long element instead of 41 inches.

To answer this question, we have to step into the EMI testing way-back machine, conveniently located on the premises of the Museum of EMC Antiquities.

We turn the dial back some 90 years to the development of the Ferris Model 32 Radio Noise and Field Strength Meter (see Figure 1) and first offered for sale in 1932.2 This radio frequency voltmeter had a frequency range of 150 kHz to 20 MHz, less 200 kHz between 350 – 550 kHz, using five different octave tuning bands.

Meter
Figure 1: Ferris Model 32 rf volt and field intensity meter. The collapsible 41” rod (non-original substitute in place) was specifically designed so that the collapsed elements would fit in the lid.

The Ferris Model 32 is the EMI receiver of note in all military EMI standards before the early 1950s.3 It is not only mentioned by name, but sundry specs and standards describe how to build various adapters when using the Model 32 for different EMI measurements. It could be used as a two-terminal rf voltmeter (conducted EMI) or, employing the 41” rod element with which it was supplied, could be used to measure field intensity. The effective height of the supplied 41” rod element was stated to be one-half meter, and it nearly was (5.99 dB below one meter).

Figure 2 portrays side-by-side images of the 1930s‑era Ferris 32A and the 1950s‑era Stoddart NM-20 receiver that eventually replaced it, showing both antenna ports (a) and antenna connections (b).4 We can see that both are outfitted with a rod element. The difference is this. The (supplied) Ferris element was a 41” long 1/8” diameter collapsible Monel rod with no connector at the base. It simply slid into a hole in the faceplate of the Ferris Model 32.5 The depth of the hole was 1.5”, leaving 39.5” above the faceplate. Compare that to 39.37” per meter, and the 6 dB (5.99 for millibel fetishists) effective height factor becomes apparent.

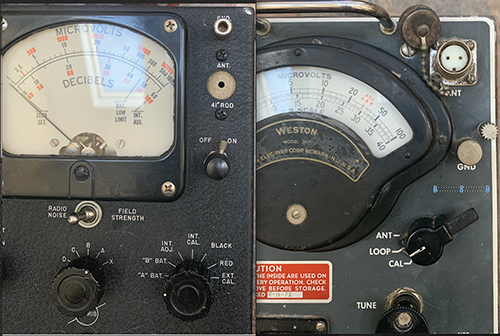

Figure 2a: Close-ups of rod antenna ports for the Ferris Model 32 on the left, and the Stoddart Aircraft Radio Company Model NM-20 on the right. Light-colored material surrounding the 1/8” diameter hole in the Ferris antenna port is a non-conductive standoff limiting shunt capacity to chassis. On the right, the two twinax pins are both connected to the rod element. The connector is not being used as twinax.



Figure 2b: Close-ups of rod antenna connections for the Ferris Model 32 on the left and the Stoddart Aircraft Radio Company Model NM-20 on the right.

It will be noted that in Figure 2, all rod antenna connections are at the meter itself, not as in modern-day practice, with antenna remote, and connected via a low impedance (50 Ω) transmission line. The inputs to these meters were high impedance and designed specifically for the 10 pF capacity of the 41” rod antenna. In fact, to use these meters to measure anything other than a 10 pF output impedance source, adapters had to be built (Ferris) or were supplied as part of the receiver set (AN/PRM-1).6 The use of 50 Ω input receivers and remote antennas with impedance transformation built into the antenna base was still a generation beyond the AN/PRM-1.

As soon as the AN/PRM-1 became available commercially, it shows up in the standards as the primary choice to be used below 20 MHz, with the Model 32 reclassified as acceptable under certain circumstances. This was due to the AN/PRM‑1 including a peak detector, which the earlier Ferris model lacked. But since the AN/PRM-1 was, in fact, designed to replace the Ferris Model 32, it had to include a 41” rod antenna.

The “mistake” made by Stoddart and all who followed was to copy the 41” but put all of it above a connector that protrudes from the top of the meter or antenna base (Figure 3). Of course, there was nothing stopping anyone from collapsing the rod element to precisely one meter, but with few exceptions, that wasn’t mentioned or required in standards and, therefore, wasn’t done.7,8,9

Meters

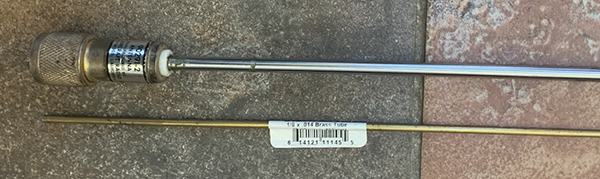

Figure 3: Stoddart Aircraft Company Model 90291-2 collapsible rod antenna assembly for use with NM-20 meter above, and 1/8” O.D. brass rod suitable for use with Ferris Model 32 meter below.

Reference 8, paragraph 6.1.1.9.1. instructs as follows: “Each meter should be provided with rod antenna adjusted to give an effective height of approximately 1/2 meter.”

Some might consider the use of the term “approximately” in a contractual specification as less than ideal. But fortuitously, this “closes the loop,” tying the first issue of centibel hair-splitting to the second of whence the 41” long “meter.”

The Ferris Model 32 instruction manual on the topic of splitting decibels explains the proper use of significant figures:

“It is evident that the accuracy of the entire measurement depends directly on the accuracy of the calibrating source, and can never exceed this; in fact, it can seldom equal it due to the accumulation of errors. Since the errors of voltage in the signal generator as the reference standard can seldom be less than about plus or minus 10%, even in the latest and most accurate instruments, it follows that no measurement of r.f. microvoltage or field can be relied upon to better this value. This is true no matter what type of receiver or field intensity set is used as the transfer indicator. These statements are made to clear up some popular misconceptions as to the degree of accuracy which can be attained in radio frequency measurements. Actually, in recording test data, it is never permissible to set down more than two significant figures, or to carry more than this through subsequent calculation of data.”

Now let’s apply these instructions to the 41” rod antenna teapot tempest. 41” is 1.0414 meters. 1.0414 rounded to two significant digits is 1.0 meter, and thus we arrive at the -6 dB meter effective height, which was satisfactory for over seven decades.

Also, compare the cited +/-10% amplitude tolerance value (+0.8 – -0.9 dB) to the MIL-STD-461 +/- 2 dB requirement for a measurement receiver. And +/- 2 dB is still representative of total amplitude measurement accuracy of the latest EMI receivers as of this article’s publication.

Rod Capacity

Figure 4 gives the expression for and graphs the dependence of rod capacity on diameter. The 1/8” diameter one-meter length Ferris element clocks in at 10.2 pF. All other manufacturers’ collapsible rod elements within the author’s experience have a larger diameter, closer to ¼.” Errors arising from calibrating with a 10 pF capacitor vs. the rod having some other value, as per Figure 4, are not large.

Rod capacity
Figure 4: Rod capacity as a function of rod diameter

Figure 5 shows the range of errors over a range of rod diameters and FET gate capacities. For normal collapsible rod diameters up to ¼” and FET gate capacities below 10 pF, Figure 5 indicates errors less than 1 dB. Figure 5 is also indicative of why European manufacturers of rod antennas with up to 15 mm diameter elements asked that MIL‑STD‑461G change the rod antenna calibration injection capacitor from a fixed value of 10 pF to that value cited by the manufacturer.

Calibration injection errors
Figure 5: Errors arising from calibration injection through 10 pF when the rod capacity is different.

Conclusion

Everyone has heard and understands the riddle, “When is a door not a door? When it is ajar.” If one were to pose, “When is a meter not a meter? When it is 41 inches.”, the response will be nothing but a blank look, unless the respondent happened to be an EMI test engineer. And even then, he couldn’t have explained why that is.

Until now.

Endnotes

SAE ARP-958E, “Electromagnetic Interference Measurement Antennas; Calibration Method” (2021)

Parker, A. T. “A Brief History Of EMI Specifications,” Presented at the 1992 IEEE EMC Symposium.

The Model 32 instruction manual barely mentions the application of measuring interference, and not at all with respect to the use of the 41” rod antenna. The Model 32 was envisioned as being used to map field contours of broadcast radio station antennas, and the manual goes into considerable detail on how to do that.

The AN/PRM-1 manual, by contrast mentions interference measurement first, and then mapping broadcast fields, and then as a microvoltmeter.

Two items of importance. In the Ferris meter, the cutout around the 1/8” diameter shaft is not metallic, but plastic. It serves the same purpose as the cutout at the top of a modern-day 41” rod antenna: to avoid shunt capacitive loading of the rod’s output. Second, the museum’s Model 32 is missing the original collapsible rod. Museum personnel followed the manual’s instructions that a 1/8” diameter rod or pipe of brass or other metal could be substituted if the collapsible rod wasn’t available.

See for example, MIL-I-6181B “Military Specification: Interference Limits, Test and Design Requirements, Aircraft Electrical and Electronic Equipment,” dated 29 May 1953. Figure 15 is a fully dimensioned, build-to-print level of detail drawing for a Ferris meter connection to provide a 50 Ω termination while interrogating a 5 uH LISN.

MIL-I-16910A dated 1954, “Interference Measurement, Radio, Methods and Limits; 14 Kilocycles to 1000 Megacycles”

MIL-STD-826, “Electromagnetic Interference Test Requirements and Methods,” dated 20 January, 1964 refers only to “1/2 meter rod (electrical length = 1/2 meter), not a 41” rod antenna.

MIL-STD-461A, “Electromagnetic Interference Characteristics Requirements for Equipment…” dated 01 August 1968, refers to “a 41-inch rod antenna (electrical length = 0. 5 meter).”
