Suppose we are considering the design of protection for a piece of equipment or a system. Generally, direct strikes would be the main concern. However, nearby strikes causing voltages and currents due to induction or induction combined with ground potential rise (GPR) are much more common and stress the equipment differently. So we might want to consider whether these are significant, and a calculation might help decide if that could be the case.

In the case of induction, experience shows that calculations using the formulas presented in the literature generally give values that are too high. Conversely, when GPR is combined with induction, the values may be too low.

Considering the questions, we need to show why the effects of nearby lightning might be over-estimated, or in some cases underestimated, and also show how to get more realistic estimates.

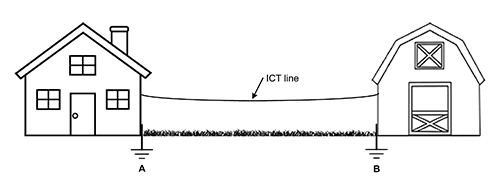

To get started, let’s look at an application like the one shown in Figure 1, which shows an ICT (Information and Communications Technology) line running between two structures. The structures could possibly have grounds at A and at B.

**Figure 1: Example ICT circuit**

Induction Alone

Induction Alone

Consider induction alone, for which there are two cases to consider:

- If the common-mode impedance is high, then induced voltage can be high enough to cause insulation breakdown.
- If the common-mode impedance is relatively low (for example due to the operation of a surge protection device), the resulting current can potentially cause damage due to excessive I
^{2}t.

Inductive effects are a result of the mutual inductance coupling between the lightning channel and the ICT circuit, so we need to consider how that works. Figure 2 shows what we have: a lightning channel modelled as a long straight wire, and a nearby ICT loop.

**Figure 2: Circuits involved in induction**

The mutual inductance *M* we need is given by:

(1)

where Φ is the magnetic flux linking the loop, and I is the lightning current. To find M in equation (1) we need to find Φ, which in turn is derived from the magnetic field B. So the first task is to get an expression for B.

To find B we begin by observing that by the right-hand rule, a current I causes a magnetic field B, as shown in Figure 3.

**Figure 3: Relation of the magnetic induction B to a current I**

From Figure 2 with the B-field added, the B field passes through the ICT loop as shown in Figure 4. Here the lightning strike is a distance S from the nearest end of the ICT circuit, and a distance r from a point on the ICT loop. The ICT loop has a height h and width w.

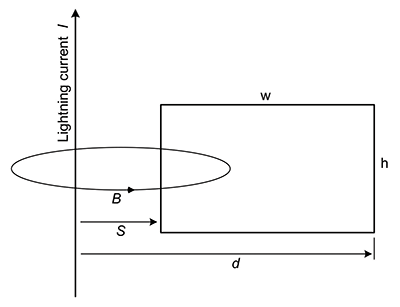

**Figure 4: Side view of the ICT circuit showing the B field linking the loop**

Assuming that the ICT loop is unshielded and that the magnetic field is not distorted by the presence of other objects in the vicinity (basically we’re talking about an open field), then B is given by:

(2)

Now to work on equation (2) we need to look at some geometry. If Figure 4 is rotated 90^{o} to give a top view, then Figure 5 shows that the ICT loop (labeled W) can take up any orientation from perpendicular to S (the red line) to parallel to S (the blue line).

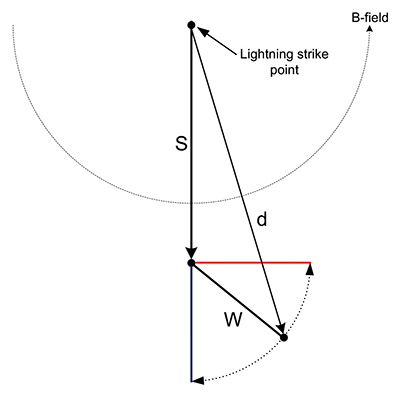

**Figure 5: Top view of Figure 4, showing the orientation of the ICT loop to the B field**

Remember that from equation (1), to find M we need to know the total flux Φ flowing through the loop area, which we get by integrating the B field over the loop area. Referring to Figure 6, Φ is determined by integrating B over the loop area dA = h(dr) where h is the loop height, dr is a line element along the loop and r is the distance from the lightning current channel to the ICT loop. Then using equation (2) for B, and observing that r_{1} = S and r_{2} = d:

(3)

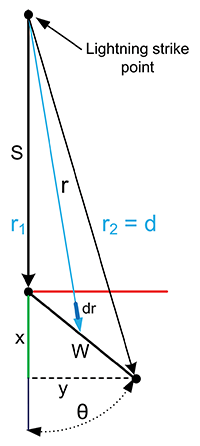

**Figure 6: Geometry for use in calculating Φ**

Now d is unknown, so we need to express it in terms of things we know (S, W and *ϴ*). From Figure 6 x = Wcos*ϴ* and y = Wsin*ϴ*, so by the Pythagorean theorem,

*d* = [(*S + Wcos**ϴ*)^{2} + (*Wsinϴ*)^{2}]^{0.5}

With that in mind, the limits of integration in equation (3) run from the beginning of the loop located at S to the end of the loop located at d, so doing the integration in equation (3):

Putting in the limits:

(4)

We have the general expression for *d* that could be used in equation (4), but there are two special cases of interest.

First, consider the case where Φ is maximized, which occurs when *ϴ* = 0^{o}. In that case d = S+W. Substituting this value for d into equation (4) and the result into equation (1):

(5a)

*which is the same as usually given in calculations of induction due to lightning (e.g. ITU-T k.67 *[1]*).*

Substituting the numerical value for µ_{0} of 4π10^{-7} H/m and rearranging:

(5b)

Second, consider the case where Φ is minimized, which occurs when *ϴ* = 90^{o}. In that case:

so

(6a)

Substituting the numerical value for µ_{0} of 4π10^{-7} H/m and rearranging:

(6b)

In general, any loop orientation between the best case (*ϴ* = 90^{o}) and the worst case (*ϴ* = 0^{o}) is possible, so the value for M lies between that calculated from equation (5b) and that from equation (6b). For the general case of *ϴ*, use *d* = [(*S + Wcos**ϴ*)^{2} + (*Wsinϴ*)^{2}]^{0.5} in equation (4) for the calculation of M.

A plot of the ratio of the worst case for M to the best case for M versus W/S is shown in Figure 7. It’s basically an estimate of the amount that M (and hence the induced voltage) could be overestimated. It shows that loop orientation makes a big difference in the mutual inductance, and that overestimates of M by a factor of 10 or more are possible.

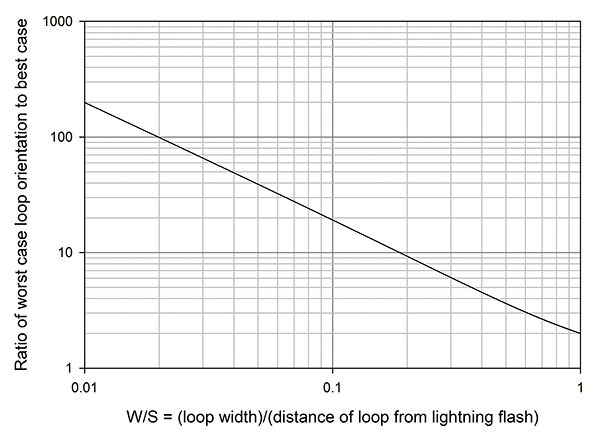

**Figure 7: The ratio of equation (5b) to equation (6b)**

Voltage Calculations

Voltage Calculations

**Induced Voltage: Calculation of V**_{oc}

**Induced Voltage: Calculation of V**

_{oc}What we’re really interested in is the open-circuit voltage Voc that occurs when the impedance is high, since this voltage is a potential cause of damage. The induced common-mode voltage V_{2oc} due to a current i_{1} in the lightning channel is just M times di/dt:

(7)

From equation (5b) the maximum value of *V _{2oc}* is:

(8a)

From equation (6b) the minimum value of *V _{2oc}* is:

(8b)

Where di/dt is in units of kA/µs.

As a reality check, we would like to know if the equations (8a) and (8b) give a reasonable answer. Helpfully, there is an experimental result in ITU-T K.67 annex I.3 for the case where *ϴ* = 0^{o}, which allows us to check on equation (8a) (since that is also for the case where *ϴ* = 0^{o}). In that experiment, S = 100 m, W = 1.5 m, h = 2 m, di/dt = 26 kA/µs. Using these numbers in equation (8a), V_{2oc} = 116 V, which agrees very well with the 110 V measured in the K.67 recommendation. So equation (8a) looks to be OK. We don’t have a similar check for equation (8b), but it was derived using the same process as was used for equation (8a), so we’ll assume it is OK also.

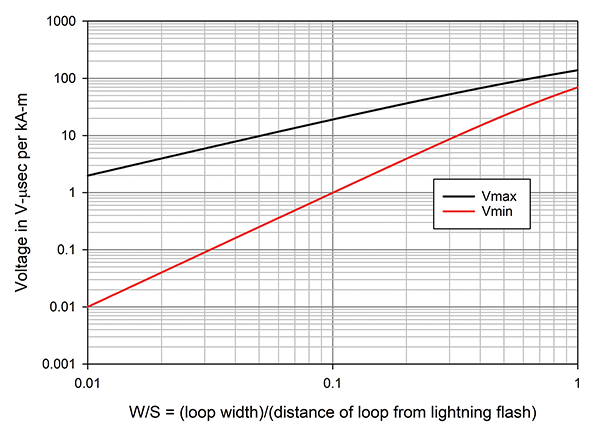

Figure 8 is a plot of equations (8a) and (8b) normalized to 1 kA/us and h = 1 m. To find V_{2oc} for any di/dt and any h, multiply the y-axis scale by the chosen di/dt and chosen loop height h.

**Figure 8: V _{2oc }normalized to 1 kA/μs-m**

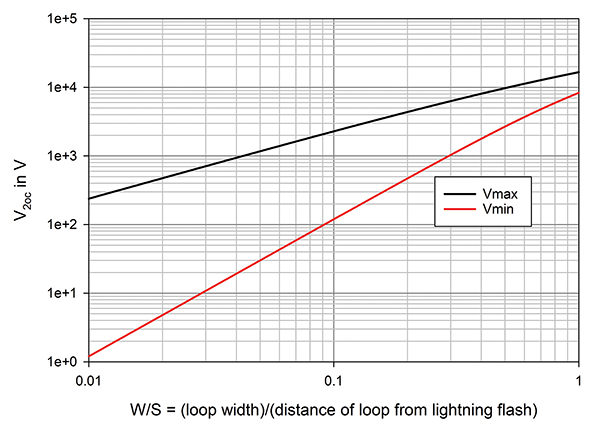

So, for example, for a median di/di of 40 kA/µsec from CIGRE TB549 Table 3.5 [2] and a 3 m high loop, we would have Figure 9, which for this particular case shows that a V_{2oc} in the 1 kV to 10 kV range is possible.

**Figure 9: Example calculation of V _{2oc}**

Observations:

- When
*ϴ*= 0^{o}, we have case usually presented in discussions of induction, for example, in ITU-T k.67 equation I.6 in Annex I. This case corresponds to the worst-case loop orientation, but that is generally unlikely. - For an environment with no prominent lightning attractors (e.g. towers or clumps of tall trees), any value of
*ϴ*from 0^{o}to 90^{o}is equally likely, so the best case of*ϴ*= 90^{o}is just as likely as the worst case of*ϴ*= 0^{o}.

*So to answer the question posed at the beginning of this article, the reason why induced voltage predictions are often too high is that the generally assumed worst-case orientation of the loop with respect to the lightning flash B field rarely occurs. As the calculations show, a more likely value of loop orientation will result in a lower predicted voltage. *

If there is a need to protect against a worst-case event, then assuming a worst-case loop orientation is appropriate, but could be expensive.

If the worst-case induced voltage is unlikely, what is a more reasonable prediction?

For an open field, the most likely value of *ϴ* is the mid-point or 45^{o}. For this case and a uniform environment, Figure 10 shows V_{2oc} plotted for a loop normalized to 1 m high and a di/dt of 1 kA/µsec. So, depending on the value of W/S and the surge di/dt, something less than 6 kV is a reasonable value for V_{2oc.} Compare this with the up to 40 kV predicted for the worst-case.

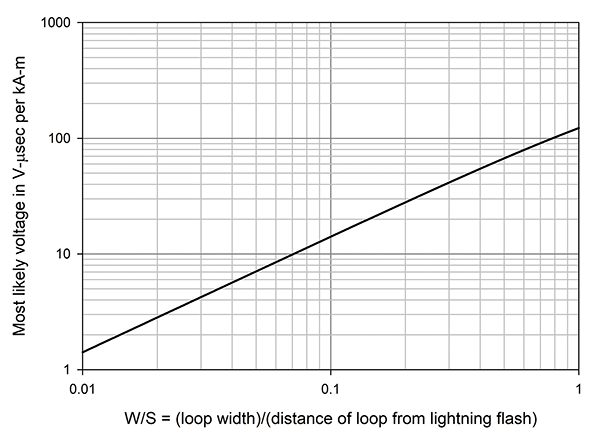

**Figure 10: V _{2oc} normalized to a 1 m loop height and 1 kA/μsec**

*Calculation of GPR*

*Calculation of GPR*

If the installation under consideration has grounds at both ends (e.g., Figure 1), then the voltage difference between the ground rods due to GPR needs to be added to the induction voltage. Figure 11 shows the GPR decrease with distance from a lightning strike at the black dot, assuming a uniform ground. Also shown is a loop having a width W located between grounds at points A and B, and located at a distance S from the lightning strike point.

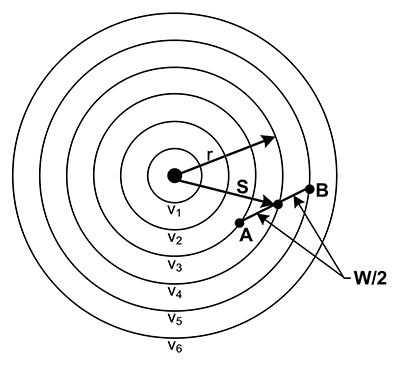

**Figure 11: GPR for a lightning strike at the black dot in the middle.**

GPR in a uniform environment is given by:

(9)

where ρ is the resistivity of the ground in ohm-m.

Again, we need to consider geometry. So similar to what was done for the B-field, Figure 12 is a top view of Figure 11. It shows the geometry we’re dealing with. In Figure 12, d_{1} is the distance from the lightning strike to the near end of the ICT loop located at point A. Similarly, d_{2} is the distance from the lightning strike to the far end of the ICT loop located at point B.

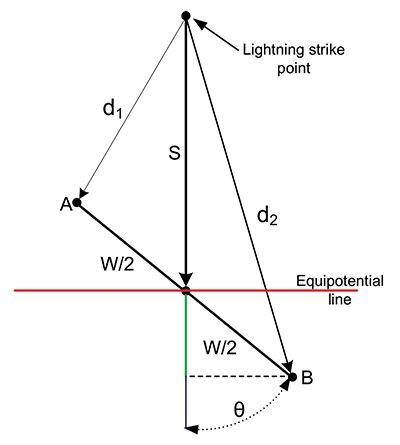

**Figure 12: Geometry for use in determining GPR**

With that in mind, the voltage V_{GPR} between the ends of the ICT loop is given by substituting d_{1} and d_{2} in equation (9):

(10)

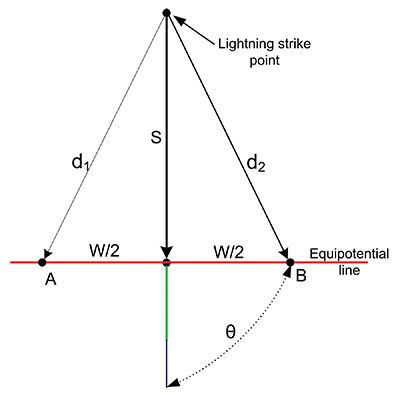

When both points A and B are on the same equipotential line as shown in Figure 13, d_{1} = d_{2}, and V_{GPR} = 0. This is the best case from an exposure standpoint.

**Figure 13: GPR geometry for the case where both points A and B are on the same equipotential
**

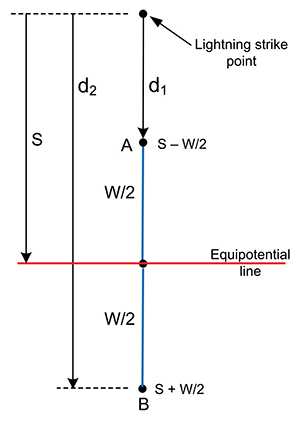

**Figure 14: GPR geometry for the case where points A and B lie on an extension of S**

As shown in Figure 14 the highest value of V_{GPR} is when points A and B fall on an extension of S, which again using equation (9) is given by:

(11)

Rewriting equation (11):

(11a)

For a representative ground resistivity of 300 ohm-m, equation (11) is:

(11b)

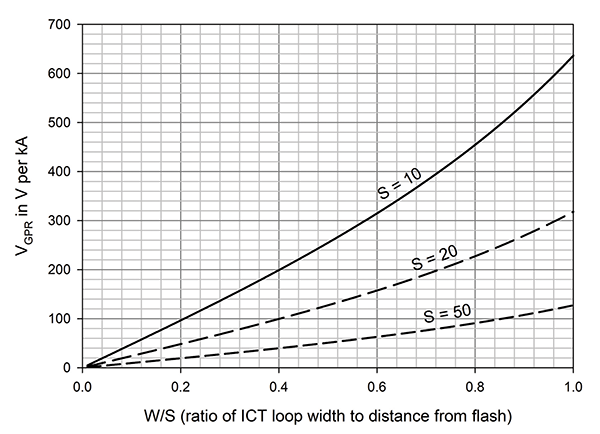

where *V _{GPR}* has been normalized to 1 kA. In Figure 15, the worst-case

*V*(

_{GPR}*ϴ*= 0

^{o}) from equation (11b) is plotted as a function of W/S for several values of S.

**Figure 15: GPR normalized to 1 kA. Multiply the Y-scale by the lightning I _{max} in kA to get volts.**

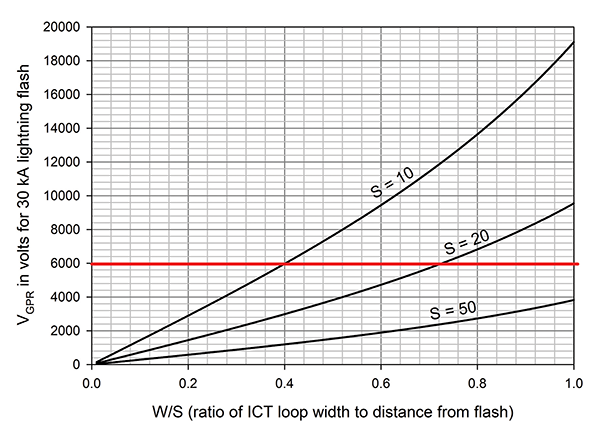

For example, for a 30 kA lightning flash Figure 15 can be replotted as shown in Figure 16. For this case a V_{GPR} in excess of 6 kV is possible, so you would want your isolation barrier to withstand at least 6 kV.

**Figure 16: GPR volts for a 30 kA flash 10 m away from the ICT loop**

Calculation of Combined GPR and Induction Voltage

Calculation of Combined GPR and Induction Voltage

Calculation of Combined GPR and Induction Voltage

The voltage due to induction can either add or subtract from the GPR, depending on whether the lightning return stroke is going up or down. For the most common upward return stroke, the voltage from Figure 8 adds to the voltage from Figure 15. *This combined induced voltage and GPR voltage might cause failure, whereas either one alone would not. *For example, from the plot of reasonable induced voltage (Figure 10), something up to 6 kV would be expected. Add this to the possible 6 kV shown in Figure 16, and the combined voltage could exceed 10 kV. In this example, systems designed with 6 kV isolation would likely survive either the induction or the GPR voltage, but not both combined.

Current Calculations

Current Calculations

**Induced current**

**Induced current**

Induced current will flow in the ICT loop if there is a connection that closes the loop, e.g., an Ethernet Smith termination or the operation of an overvoltage protection device. The induced current is given by:

(12)

where *Z *is composed of the total circuit resistance R_{S} and the circuit inductance L_{S}. The worst case is probably the operation of an overvoltage device, in which case Z would likely be dominated by L_{S}. For this worst case, substitute equation (8a) with into equation (12) to get:

(13a)

Similarly, for the best case, substitute equation (8b) into equation (12) to get:

(13b)

In both equations (13a) and (13b), h is in m, di/dt is in kA/µs, and L is in µH. Normalizing equations (13a) and (13b) to *h* = 1 m, *L _{S}* = 1 µH, and di/dt =1 kA/µs (so we can plot it), we get:

(14a)

(14b)

Equations (14a) and (14b) are plotted in Figure 17. To find *I _{2max}*, multiply the y-axis value by

*h*in m, di/dt in kA/µs, and divide by

*L*in µH.

_{S}An example of a possible worst-case is h = 3, L = 43 µH, S/W = 1 and from CIGRE TB549 Table 3.5 [2] di/dt = 100 kA/µs, for which I_{2} = 977 A. More likely values of S/W and *ϴ* would result in induced currents of perhaps 300 A, and a less extreme di/di would further reduce the induced current. Even so, currents on that order could be a problem. But generally, it is I^{2}T that causes damage, so we need to calculate that.

I^{2}T Caused by Induced Current

I

I

^{2}T Caused by Induced CurrentGenerally, we’re less interested in current than I^{2}T, because I^{2}T is what blows fuses or heats up and potentially destroys resistances in the circuit. In order to calculate I^{2}T, we need to know what the induced current waveform looks like because to get I^{2}T, the current is integrated over the whole waveform. As an aid to visualizing the waveform, we can look at the experimental results in ITU-T K.67

Lightning and induced current waveshapes from an experiment reported in ITU-T K.67 look similar, suggesting that the induced current waveshape is the same as the lightning waveshape (which would be expected if the lightning-loop arrangement works like a transformer). So, assuming that the induced current *I _{2}(t)* has the same waveshape as the lightning current, and is a double exponential:

(15)

Then,

(16)

Doing the integration:

Which evaluates to:

(17)

An estimate of I_{2} can be obtained from equations (14a) or (14b), or Figure 17. For the general case, I^{2}T can be estimated from equation (17).

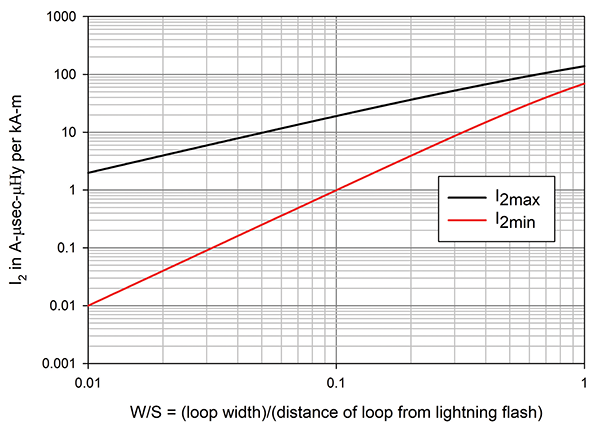

**Figure 17: I _{2 }normalized to di/dt = 1 kA/μs, h = 1 m, and L = 1 μH. Multiply the Y-scale by the lightning di/dt in kA/μs, h in m, and divide by L in μH to get I_{L}**

As an example case, assume (as was done previously) that the lightning surge is the 30 kA 5.5/75 from

CIGRE TB549. Then a = 1.0×10^{4} and b = 8.1×10^{5}, so in equation (17):

(18)

Now, suppose we would like to know if the I^{2}T due to induction would blow a 1.25 telecom fuse, which typically is rated at an I^{2}T of 15 -17 A^{2}s (when applied for 10 msec or less). Figure 17 can be used to get a possible worst-case estimate of I_{2peak}, as well as more reasonable values. As previously calculated for the worst-case estimate, I_{2max} = 977 A. Then, using equations (17) and (18), and the corresponding I^{2}T = 46 A^{2}s, which would blow the fuse. Using a more reasonable estimate, I_{2peak} = 300 A, I^{2}T = 4.4 A^{2}s, which wouldn’t blow the fuse.

The I^{2}T calculation has many variables and, depending on the values of these, the I^{2}T due to induction can range from high and likely to cause damage to low and unlikely to cause damage. The calculation assumes no surge mitigation has been done. Unmitigated induced current can be high, so consideration should be given to using surge mitigation techniques to reduce induced current.

So currents due to induction alone may or may not cause problems. What about GPR?

*Current Due to GPR*

*Current Due to GPR*

The current resulting from a GPR can be calculated as shown in [3] from the 2016 PEG meeting. There it was shown that:

*I*_{5}(*t*) = *I _{peak}* (

*e*–

^{-at}*e*)

^{-bt}*G*

_{TERM}(19)

Where G_{TERM} is a geometric factor that can be estimated using the procedure in [3]. With that in mind, equation (17) can be modified to estimate :

(20)

Putting the values into equation (20), using the same conditions as were used for induced current, including the values for a and b:

For G_{TERM}, take the example calculation from [3] which assumed the resistance of each ground rod is 40 ohms. As in the case of induced current, assume a possible worst case of S = 10 m, W = 10 m and *ϴ* = 0^{o}, for which from [3] gives G_{TERM} = 1.35×10-2. Putting all these numbers in equation (20) with Ipeak = 30 kA, I_{}T = 8.1 A^{2}s. Again this value of I^{2}T is influenced by the choice of values for the many variables involved. And the I^{2}T from GPR may need to be added to that from induction. So the question of whether the I^{2}T due to a nearby lightning strike is too high or too low basically needs to be answered on a case-by-case basis.

Summary

Summary

By including loop orientation, the calculations in this article put worst case and best case bounds on the lightning-caused voltage and currents that could be due to induction, GPR or both combined – something that is seldom, if ever, done. In fact, the calculations presented in the literature are generally only for the worst case. In practice, the voltages and currents will be somewhere between the best case and the worst case.

Why would we care? Designing common-mode protection for the upper bound (worst case) might not be cost-effective. So, for example, a worst-case calculation might predict a 20 kV induced voltage, which in the case of Ethernet would require large expensive transformers for isolation.

Conversely, designing protection for the lower bound (best case) is a possible solution, but would probably result in insufficient isolation, leading to an unacceptably high failure rate.

The equations and plots given here offer a way to estimate a reasonable case, which might be the best solution for protection against the effects of induction and GPR.

References

References

- ITU-T K.67,
*Expected surges on telecommunications and signalling networks due to lightning,*Geneva, Switzerland: International Telecommunicatioins Union, 2006. - CIGRE Working Group C4.407, “Lightning Parameters for Engineering Applications,” CIGRE TB 549, 2013.
- A. Martin, “Lightning Induced GPR Characteristics and Comments,” in
*The Alliance for Telecommunications Industry Solutions Protection Engineers Group Conference,*March 13 – 15, Huntsville, Alabama, 2012.
