Complying With the EU’s EMC Directive Without 3rd Party Testing

A common path to achieving compliance to the European Union’s (EU’s) EMC Directive 2014/30/EU (which I shall call the EMCD here) takes many manufacturers down the route of utilizing a third-party EMC test laboratory to obtain EMC test reports for their products. This process was detailed in the article “IT Server Hardware Compliance, Part 1,” which appeared in the December 2023 issue of In Compliance Magazine [1].

However, it is important to understand that the EMCD contains no legal requirements for performing any EMC laboratory tests. This was equally true for the original EMCD, 89/336/EEC, and its 2nd Edition, 2004/108/EC.

Manufacturers are required to affix the CE marking to their products, and to do that, they must first have created and signed an EU EMC Declaration of Conformity (DoC), which is based on the evidence of EMCD compliance contained within a Technical Documentation File (TDF).

- Partner Content -

VSWR and its Effects on Power Amplifiers

Voltage Standing Wave Ratio results from an impedance mismatch between a source (an amplifier) and a load (test application). This mismatch can influence the performance of the source.

As I will show later, there are two routes to declaring EMC compliance (sometimes called conformity to the EMCD), and it is the manufacturer’s choice whether his DoC relies entirely on all relevant harmonized standards (the “Standards Route”) or uses just a few or none of the relevant harmonized standards (the “EMC Assessment Route”).

Either way, a DoC is effectively a legal statement by a manufacturer that “if my product was tested to these harmonized standards, it would probably pass.”

CE-marking plus a DoC is a requirement for crossing customs borders into and within the EU. For the official “chapter and verse” on this, see my January 2024 blog “No tests are required for CE-marking to the EMCD.”

How a manufacturer obtains sufficient confidence to make this legal declaration is entirely up to that manufacturer and should be documented in the TDF. But compliance with the EMCD certainly does not require any test reports from third-party EMC test labs. This makes it possible for manufacturers of electronic products to save time and money by testing in their own EMC labs.

This also makes it possible for individual entrepreneurs who might be working out of their garages (like Mr. Hewlett and Mr. Packard!) to sell their products in the EU without the high costs associated with EMC testing to standards. In fact, the same is true for most of the so-called CE Marking Directives – third-party testing is only a legal requirement in a very few EU Directives, and only when dealing with especially dangerous products, such as certain kinds of medical equipment, machinery such as chainsaws, bandsaws, etc.

- From Our Sponsors -

I have often heard the EU’s single market described in the United States (U.S.) as “Fortress Europe,” when the exact opposite has always been true. The EU’s single market does not present any significant barriers of cost or delay to any equipment from anyone, anywhere in the world.

Applying the EMC Directive

OK, that’s enough background. Let’s get into the details!

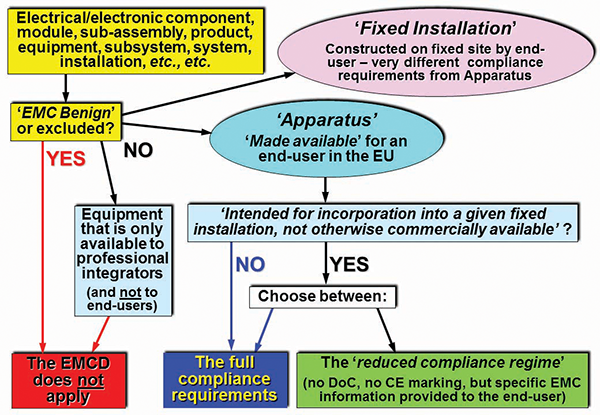

To see how it is that manufacturers can comply with the EMCD [2] without third-party testing, even without any testing at all, we need to understand how the EMCD works. When we understand this, we will also understand that even passing third-party laboratory tests to all relevant EU-harmonized EMC standards might not, on its own, ensure compliance with the EMCD.

The EMCD applies to both apparatus and fixed installations, with special legal meanings for both of these otherwise commonplace terms. Figure 1 shows that apparatus is treated very differently from fixed installations.

Apparatus is any electrical/electronic item that could cause or suffer EMI and which is “made available for an end-user in the EU” for the first time (see later). It is important to understand that the EMCD applies to every individual unit of manufacture (e.g., individually serial numbered items), and Chapter 2.2 in [4] and Chapters 1.2 and 3.2.2 in [5] provide much more detail on this.

The EMCD also has a special category of apparatus “…intended for incorporation into a given fixed installation, and not otherwise commercially available” (which most of us would call custom, bespoke, or one-off equipment), which can avoid having to be CE marked for EMC, although it then has to comply with other EMC activities.

Inherently benign equipment is excluded from the EMCD’s scope, and the official guide [5] contains a list of what is currently considered to be EMC benign. As a general rule, inherently benign equipment never contains any operational semiconductors (rectifiers, transistors, ICs, etc.) or thermionic valves or makes sparks.

Equipment that is only made available for the exclusive use of professional integrators in the construction of their own products and which is not made available for end-users (even by distribution) is also excluded from the scope of the EMCD. However, such equipment will almost certainly have to be CE marked for compliance with an EU safety directive, such as the Low Voltage Equipment Directive (the LVD) [6], Machinery Directive [7], etc. This is one reason why a manufacturer should never assume EMC compliance when purchasing a CE-marked third‑party product for incorporation into another product, system, or installation.

I have seen many large projects suffer greatly from main contractors making two big errors regarding EMC:

  1. Mistakenly assuming that every item of equipment that carries a CE marking must perforce comply with the EMCD. This article describes three ways in which this assumption can be wrong, all of which are shown in Figure 1.
    1. When the equipment is inherently benign;
    2. When the equipment is only supplied to professional integrators, whether it is manufactured in volume or custom-designed (e.g., as a subcontract); or
    3. When the equipment is custom-made for a particular end-user’s fixed installation
  2. Mistakenly assuming that an EMC-compliant final system merely needs EMC compliance for its constituent parts, often mistakenly called the CE + CE = CE approach (see later).

Also exempt from the EMCD are: a) radio amateur equipment that is not commercially available; b) aeronautical equipment covered by Regulation 216/2008; c) “custom-built evaluation kits destined for professionals to be used solely at research and development facilities;” and d) equipment covered by the Radio Equipment Directive (2014/53/EU), typically referred to as the RED.

For any equipment that has one or more functions that use radio wave communications or propagation (even simple broadcast receivers), the RED has very important implications for complying with the EMCD [2] and the LVD [6]. (See a video of my presentation at the 2020 IEEE EMC+SIPI Symposium, “Who’s Afraid of the Big Bad RED.”)

Equipment that has EMC aspects addressed in specific product Directives (e.g., medical devices, automotive, etc.) is only exempt from the EMCD to the extent covered by those other Directives. Unfortunately, this is widely misunderstood to mean they are totally exempt from the EMCD.

Apparatus that must comply with the EMCD when made available for an end-user in the EU may be advertised or exhibited before it is EMC compliant as long as it is clearly marked as being non-compliant with the EMCD and as not (yet) being available to end-users in the EU.

EMC Conformity of Apparatus

The EMCD requires all apparatus to:

  1. Comply with the Essential Requirements
  2. Undergo a conformity assessment procedure
  3. Have a TDF prepared and readily available for inspection by enforcement officials
  4. Be supplied with specified User Information
  5. Have a signed EC Declaration of Conformity
  6. Carry the CE marking

Items 1-5 in the above list must be complete before the CE marking is applied (item 6).

All of the items 1-6 must be complete before the apparatus is “made available” for the first time in the EU (see 2.2 and 2.3 in [4]). It is important to note that being made available for the first time in the EU does not only mean new products. Used or second-hand products that are brought into the EU are also covered and have to comply with the EMCD, no matter how old or how large they are.

As already mentioned, there is an exclusion to compliance with the EMCD for apparatus intended for incorporation into a given fixed installation and not otherwise commercially available (see later).

The Protection Requirements

The Essential Requirements (Clause 1 of Annex I in [2]) state the essential legal requirements for compliance with the EMCD, using simple terminology in the (probably vain) hope that this will make it difficult for lawyers to interpret them in ways other than what was intended:

“Equipment shall be so designed and manufactured, having regard to the state of the art, as to ensure that:

(a) the electromagnetic disturbance generated does not exceed the level above which radio and telecommunications equipment or other equipment cannot operate as intended;

(b) it has a level of immunity to the electromagnetic disturbance to be expected in its intended use which allows it to operate without unacceptable degradation of its intended use.”

Who would ever want their products not to comply with these Essential Requirements? The costs of dealing with the resulting complaints (and the loss of possible future sales) would eat into the financial bottom line, making a manufacturer less profitable.

So, even if there was no EMCD, the Essential Requirements above should still be applied to help reduce financial risks.

Conformity Assessment in General

Conformity assessment is specified in Annex II of [2] and requires an EMC Assessment that results in a TDF that demonstrates how it is that a product can claim compliance with the Essential Requirements. A TDF should cover all operational modes and all intended use configurations, and the amount of verification work required can be reduced by first identifying the worst-case combinations of configuration and operational mode, i.e., the ones that would cause the highest emissions or are the most susceptible to interference.

As I said earlier, there are two routes to conformity with the EMCD:

  1. The Standards Route, which uses harmonized EMC standards; and
  2. The EMC Assessment Route, which can use any standards or none.

Conformity Assessment by Using Harmonized Standards

When following the Standards Route, the product’s DoC must list all of the relevant harmonized EMC test standards that apply to the product, which can be found on the official listing website at [8]. This route to EMC conformity requires that all these harmonized standards are correctly applied. But what does “correctly applied” actually mean?

Clearly, one way is to have a third-party test lab perform all of the tests exactly as described in the relevant standards, with the EMC test reports forming the bulk of the TDF. If the test lab is accredited by a national accreditation body to perform a particular test, there is more confidence that the test will be done correctly. Unfortunately, my experience (and that of many others) is that not all national accreditation bodies are equal.

Third-party testing has been very well described in [1], so I don’t need to go into it here.

Some manufacturers (and not only the larger ones) have their own full-compliance EMC testing labs, and some of them even have some/all of their testing labs accredited. These labs are generally best used just as if they were third-party labs.

(Interestingly, in-house testing labs located in the same building as the design teams can pay back their original investment much more quickly than the usual business case predicts. I have seen one such lab achieve full payback in four months!)

However, as stated early on in this article, using the services of a third-party accredited testing lab to correctly apply a harmonized standard to test exactly to the standard is not the only option when following the Standards Route.

The correct application of a harmonized standard actually means that a manufacturer has done enough homework to have sufficient confidence that if the product was fully tested in an EMC laboratory that was accredited to test to that standard – it should pass.

Let’s be perfectly clear on this. Correct application does not mean that the product has actually been tested to that standard but only that, if it were tested at some future time, it would probably pass.

The EMCD leaves manufacturers totally free to decide on the amount and quality of EMC testing they do themselves or have done for them to have sufficient confidence to sign their DoC when using the Standards Route.

(It is important to understand that there are no absolute guarantees in the world of EMC, even with fully accredited third-party testing. A product that passes in one testing lab can fail when tested in another lab, even though nothing has changed in the product and the exact same cables are used with it. Some manufacturers take advantage of this by always using test labs that they find are more likely to give them a pass result!)

Here are four examples of when laboratory testing might not be required to correctly apply a harmonized radiated emissions standard such as EN 55022:

  1. When the product emits a certain amount of radio frequency (RF) power spread in a particular way over a particular frequency spectrum, and calculations/simulations show that, if this emitted power was measured according to the relevant EMC test standard, it would be almost certain to pass (even when taking measurement uncertainty into account). For examples of this approach, see [9] [10] and [11].
  2. When the product is housed in a well-shielded and well-filtered enclosure that has been proven by shielding effectiveness testing and/or simulation to provide more than sufficient RF attenuation to ensure that, if its emitted RF power was measured according to the relevant EMC test standard, it is certain to pass (even when taking measurement uncertainty into account).
    Many manufacturers purchase well-shielded/filtered overall enclosures, then ruin them with modifications, completely wasting their high cost (see Chapter 5 of [12]). So an expert assessment is usually required to have sufficient confidence in the final assembly.
  3. When a product fails in a test lab and a simple modification applied by hand makes it pass, and the same modification is applied on production units, there can be sufficient confidence that, if a new production sample was retested, it would pass.
    In this context, “the same modification” means physically and dimensionally the same – for example, an additional shield bond made with a screw-fixing is not the same for EMC as an additional bond made in a different place or made in the same place with a braid strap or piece of green/yellow wire instead of a screw.
  4. When a product has passed an equivalent or tougher radiated emissions test and has not been changed (either in its hardware, software, or components). A typical example is a product that has passed MIL-STD 461 radiated emissions tests, which set lower emissions limits than the relevant harmonized test standard (see [13]).

4.3 in [5] provides very good guidance on EMC assessment and makes it clear that the EMCD contains no legal requirements for testing.

Unfortunately, even when full testing is done in a lab that is accredited for that test and passed, it might not ensure compliance with the Essential Requirements in real-life operation. This is, of course, what really matters for compliance with the EMCD and also (more importantly) for financial success. This is because no harmonized test standards cover all of the EM disturbances that could occur in real life. Also, it is because the tests have been specifically developed to ensure repeatability in testing, which can often mean they are simply not representative of real-life EM disturbances.

Also, given the inevitably slow pace of international standardization, most published standards are behind the times. For example, none of the harmonized immunity standards cover the very close proximity of cellphones, e-book readers, Wi-Fi transmitters, RFID transmitters (including active RFID tags), etc., even though such proximity is now a normal “… electromagnetic disturbance to be expected in its intended use…”.

Immunity to the near-fields (see [14]) that can be created by portable RF transmitters in very close proximity is arguably now a necessity for legal compliance with the Essential Requirements, even though not tested by any harmonized standards.

“Big deal,” you might say, “but I don’t want to spend any more on legal compliance than I have to!” OK, but think for a minute about what I said earlier in the section on Essential Requirements. If products don’t comply with them, they are less likely to be financially successful. If they have big problems with EMC in real life, they could even do irreparable damage to a manufacturer’s brand image and future profitability. Some companies have actually been bankrupted by real-life EMC problems.

The real reason we need to achieve EMC compliance is to have products that work well enough in real life and don’t upset customers. Achieving this is important to help control financial risks, and so what if we have to produce a few pages of legal documentation for EU sales, when it merely covers EMC work we have already done?

For these reasons, when following the Standards Route, in addition to correctly applying all relevant harmonized standards, I always recommend performing a full EMC assessment as detailed below, then doing whatever else it takes to ensure conformity with the Essential Requirements. This can sometimes be as quick and easy as a check for emissions or immunity using a homemade near-field probe with a low-cost spectrum analyzer [15].

Please note that, when following the Standards Route, the DoC should not state that the product has been tested to the listed harmonized standards and has passed those tests (unless they have been, of course!). Generally, it is better for the DoC to say something like, “The following standards have been applied…”.

Conformity Assessment by Not Using Harmonized Standards

The EMC Assessment Route is the other route to EMC conformity permitted by the EMCD. When following this path, a manufacturer declares the EMC conformity of his apparatus directly with the Essential Requirements of the EMCD, using just some of the relevant harmonized standards, or just some parts of some harmonized standards, or even ignoring all harmonized standards completely. The EMC Assessment Route must follow a specified technical methodology to ensure that the Essential Requirements are met.

According to [5], the EMC Assessment Route is usually more appropriate than the Standards Route in the following situations:

  • Where the Essential Requirements are not entirely covered by the application of the harmonized standards that are relevant for the product;
  • Where the apparatus uses technologies incompatible with, or not yet taken into account by, any harmonized standards;
  • The manufacturer uses test facilities not yet covered by harmonized standards;
  • The manufacturer prefers to apply other standards or specifications (even in-house specifications) that are not harmonized under the EMC Directive; or
  • The apparatus is physically too large to be tested in the type of facility specified by a relevant harmonized standard or where “in-situ” testing is necessary (e.g., for systems or installations that are first assembled on the end-user’s site) and is not adequately covered by a harmonized standard.

Of course, a manufacturer may choose to follow the EMC Assessment Route simply to save time and money, which is often the case for start-up companies that cannot afford the cost of laboratory testing.

This alternative conformity route is essentially the old TCF route under the first EMC Directive (89/336/EEC), but with the significant difference that now there is no legal requirement for any TDFs to be assessed by a third party (see Notified Bodies, later).

Non-harmonized methods of demonstrating conformity with the Essential Requirements, which may be able to be used, either singly or in suitable combinations, as part of an EMC Assessment Route, include (but are not limited to):

  1. Non-EU-harmonized but published EMC test standards (e.g., FCC, military, automotive, etc.);
  2. In-situ/on-site EMC tests [16];
  3. EMC tests or checks developed by the manufacturer that are not compliant with the harmonized test methods listed in [8]. These are often called “pre-compliance” EMC tests and can vary from full-compliance tests that are just done a little more quickly than they should be, to near-field probing and a variety of other low-cost methods e.g., those described in [15], which might bear little resemblance to harmonized tests;
  4. Calculations (e.g. [9] [10] [11]);
  5. Validated computer simulations;
  6. Comparisons with known EMCD-compliant products made by the same manufacturer, which use the same technologies, devices, and construction methods. (But beware. Hardware and software technologies, and devices, change very rapidly. And so do their EMC characteristics!)

The EMC Assessment Route’s technical methodology includes (but is not limited to):

  1. Assessing the EM environment(s) normally expected at the user(s) location(s), taking into account (see [17]):
    1. The likely proximity to sensitive equipment that the product’s emissions could interfere with;
    2. The likely EM “threats” that could interfere with the product, plus the degradation of functional performance that the user will accept when it is interfered with.
  2. Create the EMC specifications for the product. To help make life easier, these often use modified versions of harmonized standards, basic IEC test methods (see [1]), other EMC standards (automotive, military, aerospace, etc.), and/or guidance for systems and installations such as [12] [18] [19] or some of the many references they contain.
  3. Verify and/or validate the product’s design against the EMC specifications. Verification and validation techniques include, but are not limited to, EMC testing.

The 3rd Edition of the EMCD, 2014-30-EC, Applies from 20 April 2016

All of the technical compliance issues discussed in this article, and in [1], were previously published in In Compliance Magazine in December 2014 (see [20]) and are unaffected by the third edition of the EMCD [2]. The changes in [2] are more to do with adapting the existing EMCD to the EU’s New Legislative Framework (NLF, see [4]).

The changes wrought by the NLF are mostly concerned with extending legal compliance requirements to all economic operators through whose hands EMCD-compliant products pass, including the manufacturer of the products (obviously), appointed agents, distributors, importers, etc.

CE + CE Does Not Equal CE

Constructing systems only from items that are CE‑marked, and mistakenly assuming that this alone takes care of the EMC compliance of the overall system or installation, is often (mistakenly) called the CE + CE = CE approach. I say “mistakenly” because it simply doesn’t work!

This incorrect approach is very widely used by system integrators, installers, and major contractors. However, it is easy to show that, technically and/or legally, this approach should never be relied upon, and Chapter 1.2.2 in the official guide [5] contains a specific warning against using it. More detailed information on this is given in Chapter 1.5 of [12], Chapter 2.3.4 of [18], and Chapter 2.3.3 of [19].

Note that the so-called CE + CE = CE approach is also incorrect technically and/or legally for most, if not all other, EU Directives, including [6] and [7].

Conclusion and Additional Information

There’s a great deal more I could write on complying with the EMCD, but I’ve covered the main issue of how to comply without using laboratory testing and wandered off into some related issues as well.

To find out more about related issues, here are some sources of free information:

  • Employing Notified Bodies (see [21]);
  • Creating and maintaining the TDF (Technical Documentation File) (see [21]);
  • The EU EMC DoC (Declaration of Conformity) (see [21]);
  • Correctly affixing the CE Marking (see [21]);
  • The EMC information legally required to be provided with each apparatus (see [21]);
  • Maintaining EMC compliance in serial or batch manufacture (see [21]);
  • Maintaining EMC compliance when the harmonized standards change (see [21]);
  • EMC compliance of custom-designed “apparatus intended for incorporation into a given fixed installation, and not otherwise commercially available” (see Chapter 2.5 of [18]); and
  • EMC compliance of “Fixed Installations” (see [18]).

References

  1. IT Server Hardware Compliance, Part 1,” by John Werner, Rebecca Morones, and Arkadiy Tsfasman, In Compliance Magazine, December 2023.
  2. The 3rd Edition of the EMC Directive, 2014/30/EU, in English.
    And in any EC language.
  3. The History of HP,” September 1, 2019.
  4. The ‘Blue Guide’ on the implementation of EU product rules 2022
  5. The EC’s official guide on 2014/30/EU
  6. Low Voltage Directive (LVD) 2014/35/EU
  7. Machinery Directive 2006/42/EC
    Please Note: Directive 2006/42/EC has been repealed by Regulation (EU) 2023/1230 on machinery. This Regulation applies from 20 January 2027.
  8. The EMC Directive’s official homepage and list of harmonized test standards
  9. Designing Automotive Components for Guaranteed Compliance with Electromagnetic Compatibility Requirements,” by Todd Hubing, In Compliance Magazine, May 2013.
  10. Performance-based EMC Design using a Maximum Radiated Emissions Calculator,” by Todd Hubing, Journal of Electromagnetic Engineering and Science, vol. 13, no. 4, December 2013, pp. 199-207.
  11. Maximum Radiated Emissions Calculator,” a project by Clemson Vehicular Electronics Laboratory.
  12. Good EMC Engineering Practices in the Design and Construction of Industrial Cabinets,” Keith Armstrong, free download.
  13. “Guide to EMC Directive conformity of equipment designed for military purposes,” PD CLC/TR 50538:2010, available from BSI, ANSI, and other standards websites. It is also available from Amazon.
  14. Near and Far Field
  15. EMC Testing Parts 1 – 6,” Tim Williams and Keith Armstrong, a series of six articles published in the EMC Journal in 2001.
  16. Onsite EMC Test Methods,” Technical Guidance Note No. 49, published by the EMC Test Labs Association.
    My updated version is available.
  17. Assessing an Electromagnetic Environment,” Technical Guidance Note No. 47, published by the EMC Test Labs Association.
    My updated (2019) version is available.
  18. Good EMC Engineering Practices in the Design and Construction of Fixed Installation,” by Keith Armstrong.
  19. EMC for Systems and Installations, by Tim Williams and Keith Armstrong, Newnes 2000, ISBN: 0 7506 4167 3, available for purchase.
  20. Complying With the EMC Directive Without 3rd Party Testing,” Keith Armstrong, In Compliance Magazine, December 2014.
  21. “Complying with the EMC Directive (2004/108/EC) Second Edition,” Keith Armstrong, Conformity, March 2008.
    Revised version published in Conformity Magazine’s 2009 Annual Guide.
