Circuit Theory Model of Ringing on a Transmission Line

This article uses a classical circuit-theory model of a series RLC circuit to explain the phenomenon of ringing on a transmission line, or a PCB trace (see [1] for the transmission line-theory model of ringing).


Fundamental Background

A typical series RLC circuit configuration is shown in Figure 1.

- Partner Content -

A Dash of Maxwell’s: A Maxwell’s Equations Primer – Part One

Solving Maxwell’s Equations for real-life situations, like predicting the RF emissions from a cell tower, requires more mathematical horsepower than any individual mind can muster. These equations don’t give the scientist or engineer just insight, they are literally the answer to everything RF.

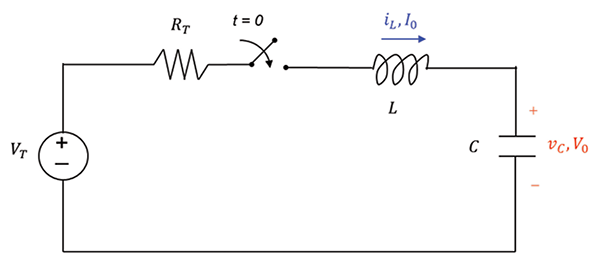

Figure 1: Series RLC circuit


At the t
= 0 switch closes and a dc voltage source, VT, is connected to a series LC configuration. In general, the capacitor has an initial voltage of V0 and the inductor has an initial current of I0.

This circuit is governed by the differential equation [2].

  (1)

or using the damping ratio, ζ, and undamped natural frequency, ω0,

  (2)

- From Our Sponsors -

where

  (3a)

  (3b)

The type of the circuit’s response depends on the value of the damping ratio, ζ. When 0 < ζ < 1, the response is underdamped and has the form

  (4)

where ωd, called damped natural frequency is given by

  (5)

and the constants K and θ are evaluated using the initial conditions V0 and I0.

Many practical pulse circuits can be represented by the lumped equivalent circuit shown in Figure 2.

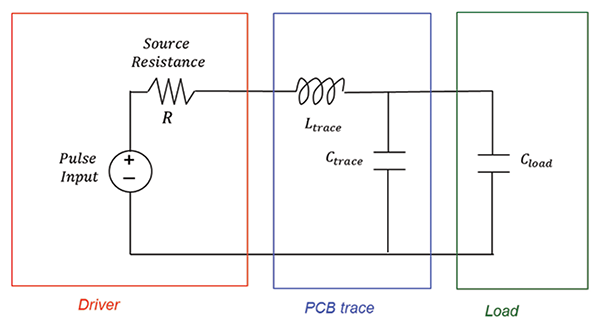

Figure 2: Lumped parameter model of a pulse circuit


When ringing occurs the voltage across the capacitors exhibits sinusoidal oscillations; i.e., the circuit is underdamped.

Solving Eq. (3a) for ζ we obtain

  (6)

Substituting for ω0 from Eq. (3b) into Eq. (6) results in

  (7)

Or

  (8)

To avoid ringing we need ζ ≥ 1, or equivalently

  (9)

In Eq. (9) L and C represent the total loop inductance and the total shunt capacitance, respectively. Thus, in order to avoid ringing the loop inductance would have to satisfy the following inequality

  (10)

Let’s use some typical values for R and C and let R = 20Ω,
C
= 10pF. Then the loop inductance would have to satisfy

  (11)

The total circuit loop inductance in any practical electronic circuit exceeds this value and gives rise to the phenomenon of ringing.


Ringing Measurements

The laboratory test set-up to measure ringing is shown in Figure 3.

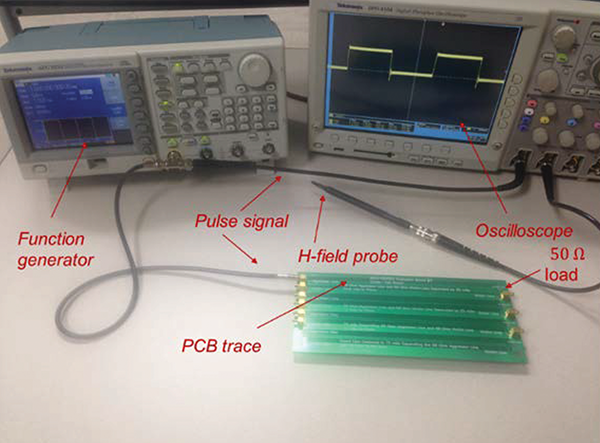

Figure 3: Experimental set-up for ringing measurements


The circuit diagram showing all intentional circuit components is shown in Figure 4.

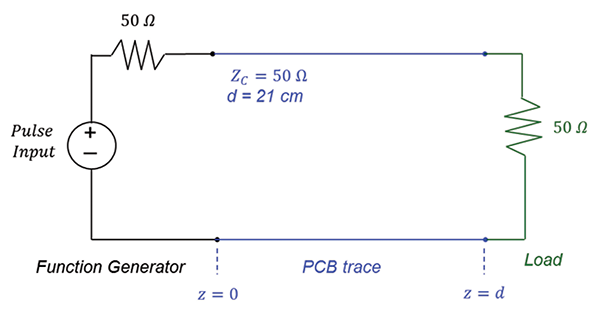

Figure 4: Circuit model of the experimental set-up


The function generator produces a 1 MHz trapezoidal 1Vpp pulse train with the adjustable rise and fall time. With the rise and fall times set to 10 ns, the voltage measured at the input to the PCB trace is shown in Figure 5.

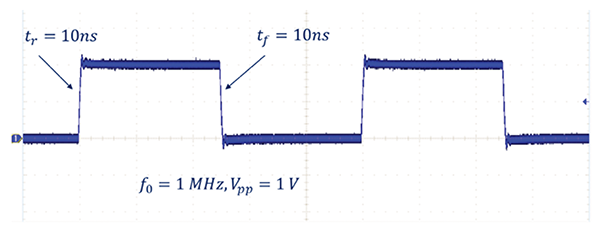

Figure 5: Trapezoidal pulse train produced by a function generator


There is no noticeable ringing present at the input to the trace.

Figure 6(a) shows the waveform when the rise time has been changed to 2.5 ns while the fall time stayed at 10 ns. In Figure 6(b) both the rise time and fall time are at 2.5 ns.

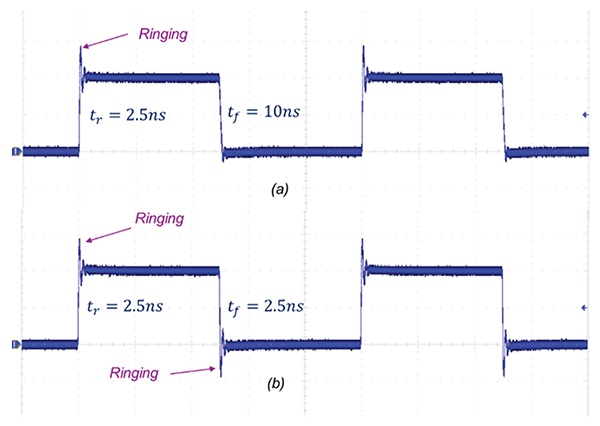

Figure 6: Ringing (a): with the rise time at 2.5 ns and fall time at 10 ns, (b) with both the rise time and fall time at 2.5 ns


With the rise and/or fall time changed to 2.5 ns we observe a significant ringing present in the system.

Figure 7 shows the expanded view of the ringing waveform on the rising edge.

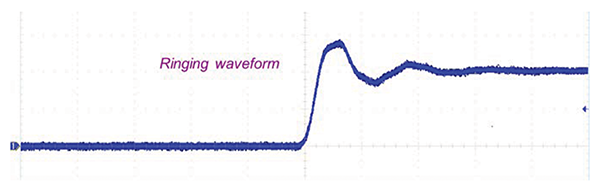

Figure 7: Ringing waveform on the rising edge


It is evident that the ringing waveform resembles an underdamped sinusoid described by Eq. (4).

It is very instructive and revealing to look at the current waveforms that can be captured using an H-field probe, as shown in Figure 8.

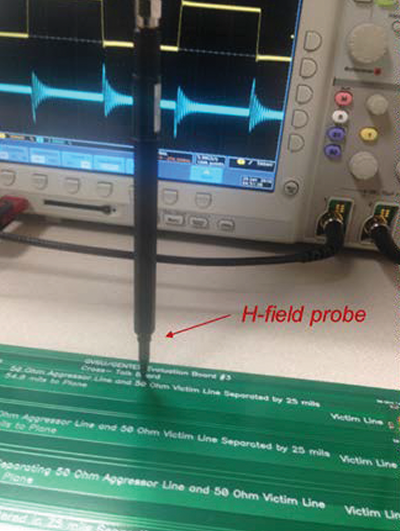

Figure 8: H-field probe current measurements


These waveforms are shown in Figure 9 for the 10 ns rise time case, and in Figure 10 for the 2.5 ns rise time case.

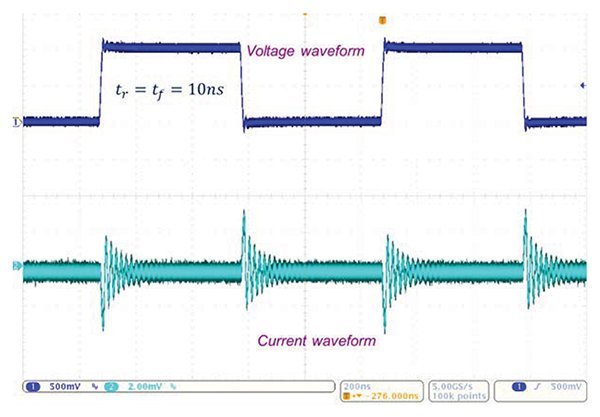

Figure 9: Voltage and current waveforms for the 10 ns rise time case

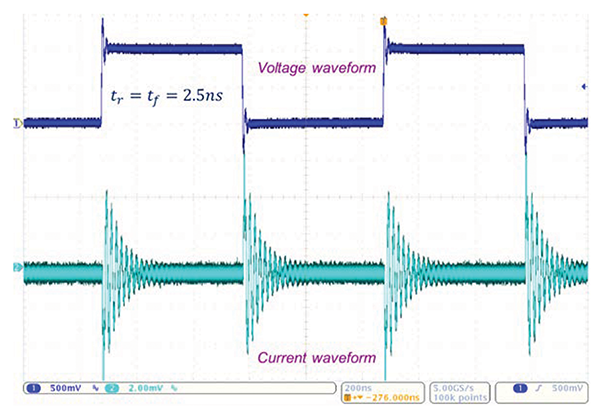

Figure 10: Voltage and current waveforms for the 2.5 ns rise time case


Note that the current waveform exhibits ringing in both cases, while the voltage waveform in the 10 ns case exhibits minimal or no noticeable ringing.
